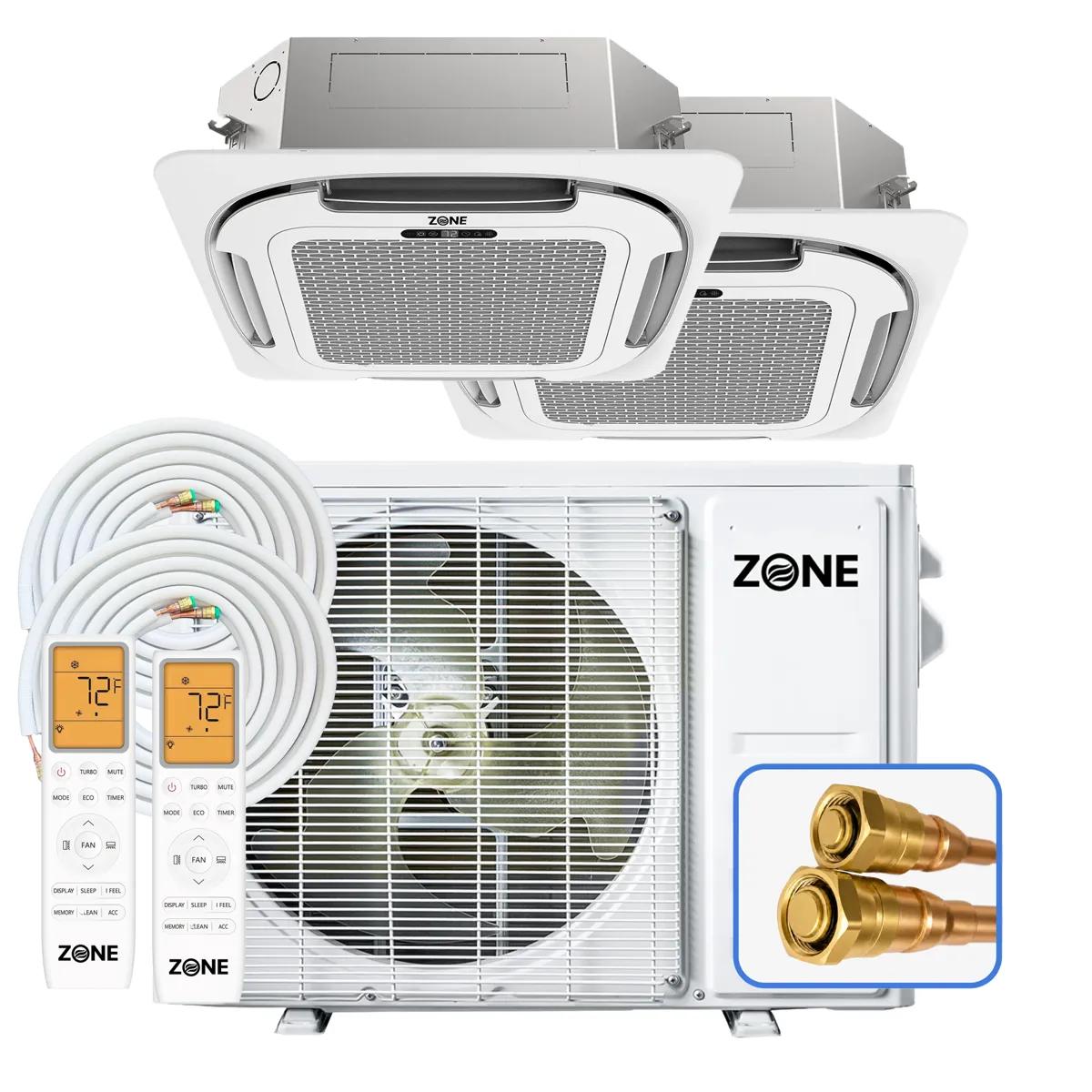

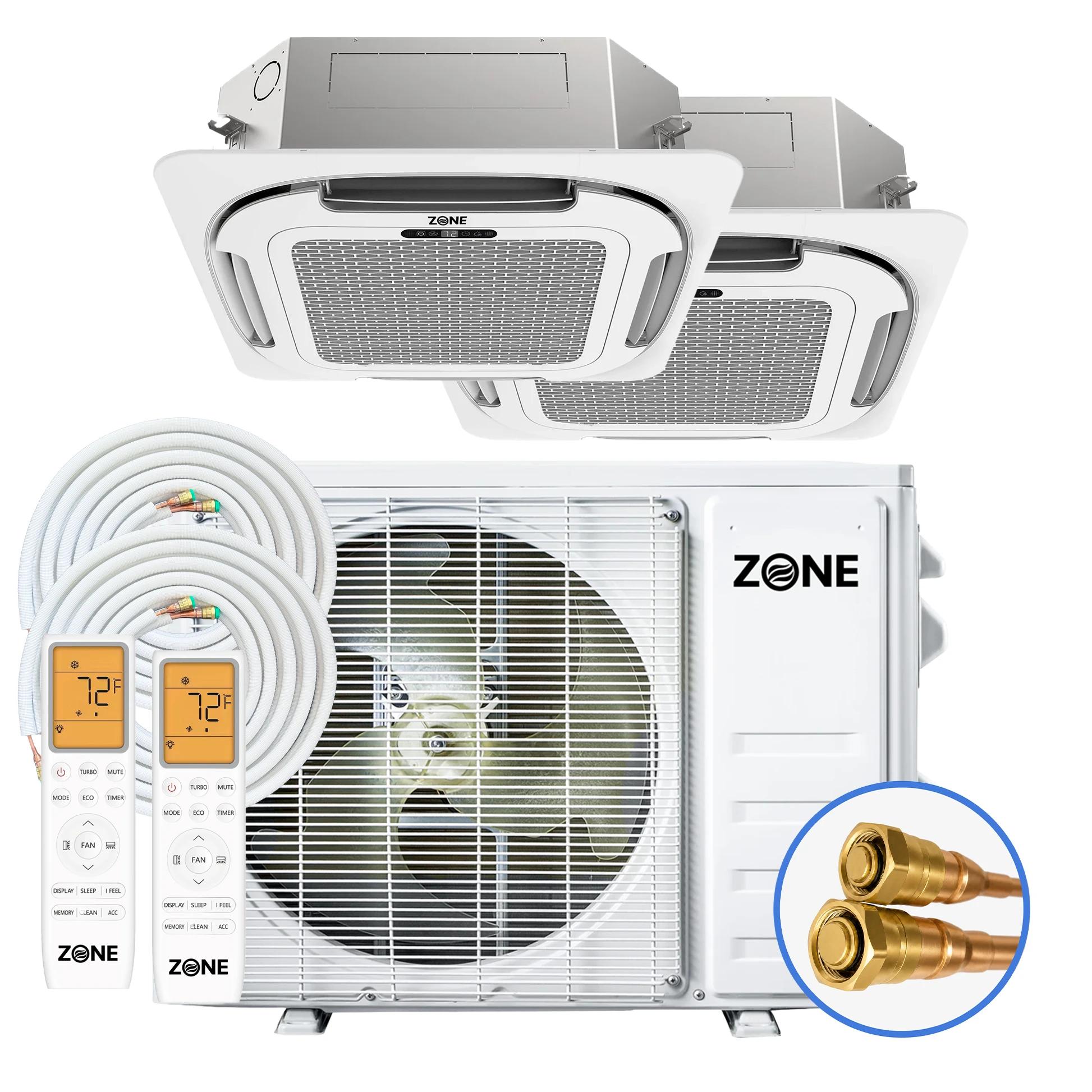

Zone Air® Airframe DUAL ZONE 24,000 BTU (12K+12K) 21 SEER2 230V Ceiling Cassette Mini-Split Heat Pump System with 2x Pre-Charged Linesets - Up to 1,200 Sq Ft
Frequently Purchased Together
At a Glance
Electrical Requirements
Payment & Security
Your payment information is processed securely. We do not store credit card details.
System Overview
Your Purchase Includes
Everything you need for a complete DIY installation
Summary
- Voltage: 208-230V
- Environmentally friendly R454B (pre-charged)
- Low ambient range operation: heating down to Independent zone control
- Variable-speed DC inverter driven performance
- Pre-charged lineset included for DIY installation
- Energy Star certified
Features
- Two 12,000 BTU ceiling cassette units
- Independent temperature control per zone
- Single outdoor unit powers both zones
- 4-way 360° air distribution per unit

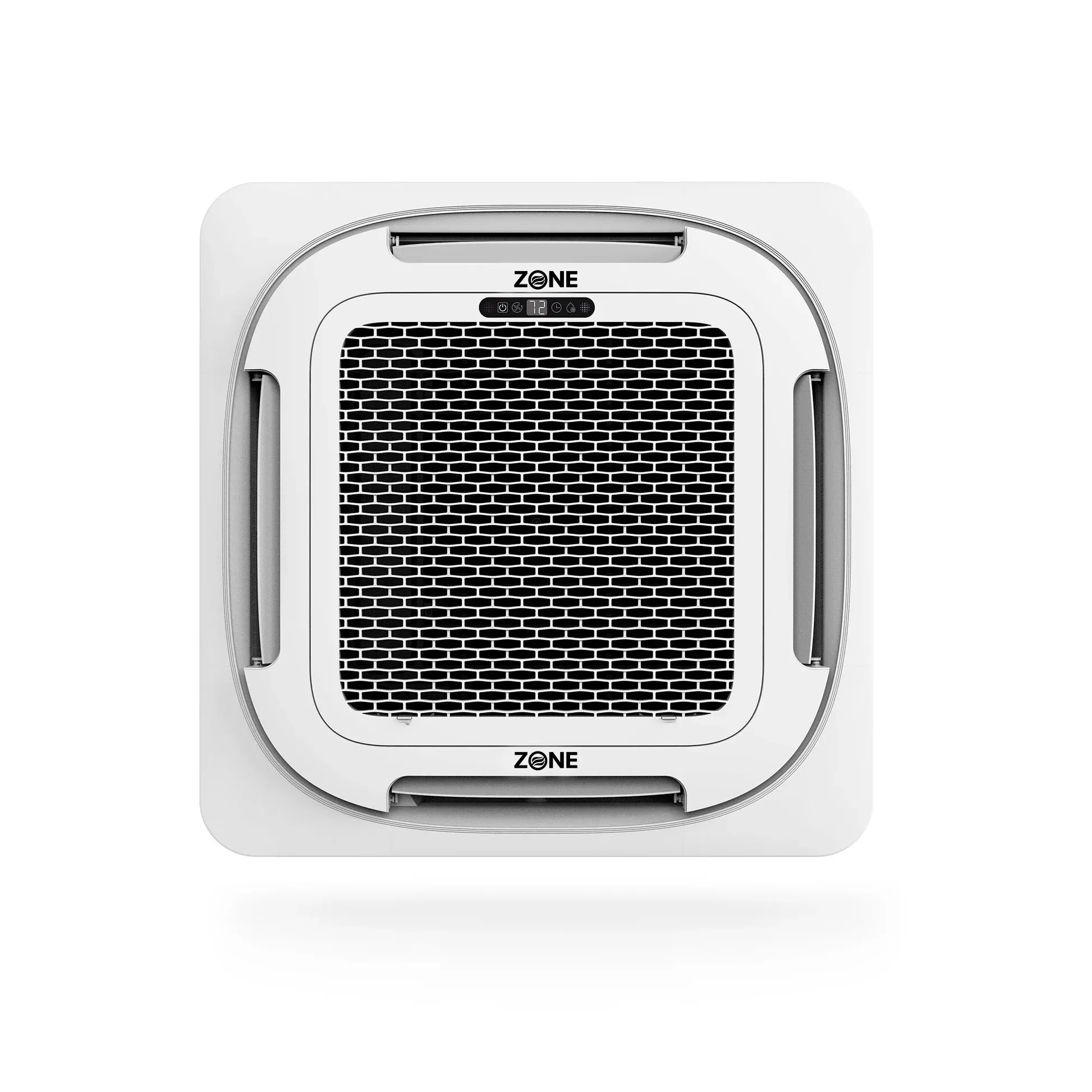

- Flush ceiling mount design
- Two pre-charged linesets included
- WiFi control for each zone
The outdoor unit is factory pre-charged with R454B (pre-charged) refrigerant, accommodating refrigerant line lengths of up to 25 ft. per circuit. If using a lineset that exceeds this length, additional refrigerant will need to be charged into the system during installation. This model can only be purchased with the 25 ft. lineset option. If needing a different length, please purchase additional linesets here.
Airframe Ceiling Cassette Series
Zone Air® ceiling cassette systems provide 360-degree airflow from a flush-mounted ceiling unit. Ideal for offices, commercial spaces, and modern homes where wall space is limited. Each system includes a decorative panel, pre-charged lineset, and full installation hardware.

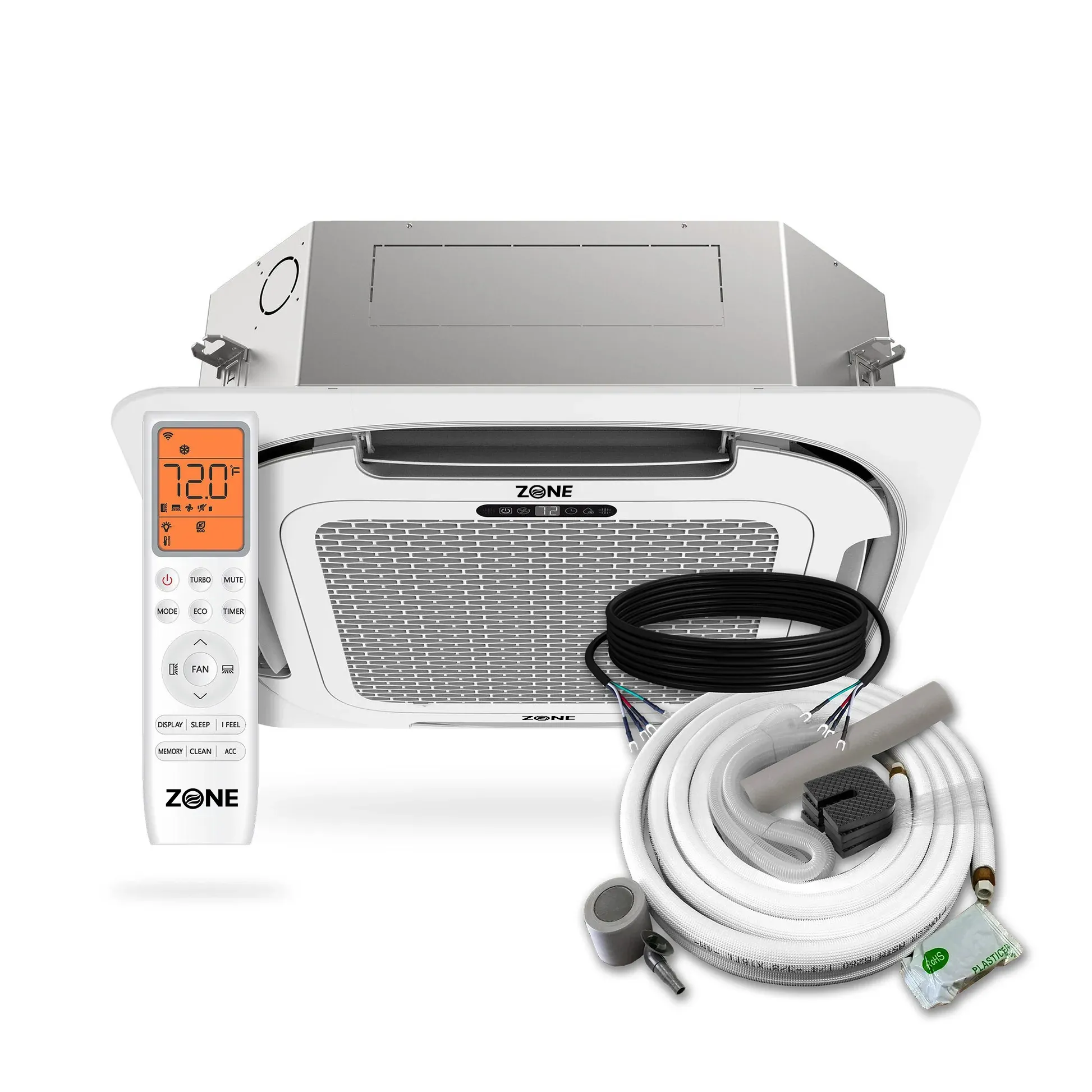

What's Included in Your Purchase
- ✓ Indoor Unit
- ✓ Outdoor Unit

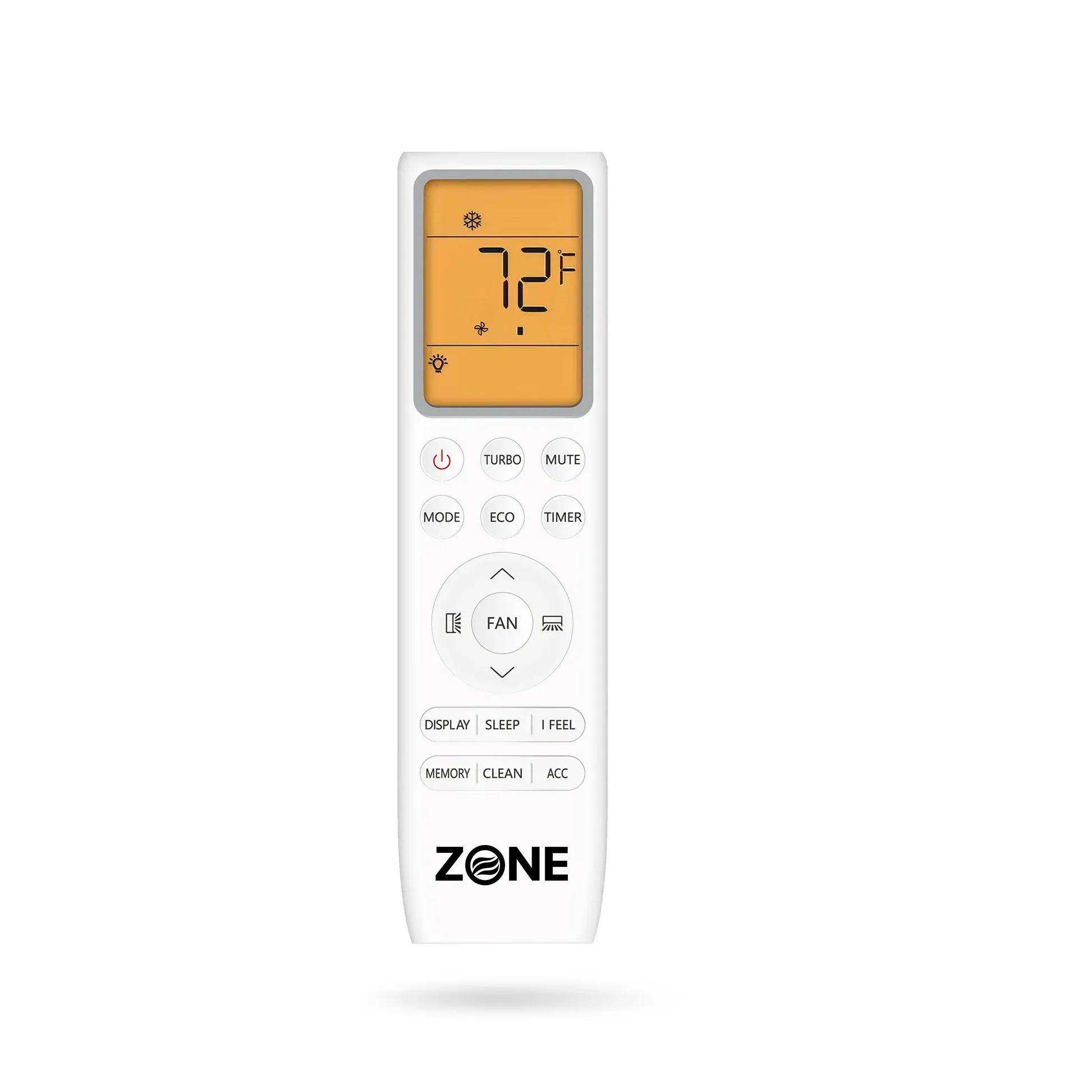

- ✓ Wireless Remote Control
- ✓ Remote Control Wall Holder
- ✓ Remote Control Batteries
- ✓ Decorative Ceiling Panel
- ✓ 16 Ft. Copper Lines
- ✓ 16 Ft. Electrical Wire
- ✓ 10 Ft. Drain for Indoor/Outdoor
- ✓ Wall Passage Sleeve
- ✓ Putty for Wall Hole
- ✓ Leak Guard Sealer
- ✓ Wrapping Tape
- ✓ Installation Manual
- ✓ User's Manual
Product Warranty
Warranty registration is required within 90 days of purchase. Please check our Warranty Policy.
- Up to 5 years warranty on parts
- Up to 7 years warranty on compressor
Manuals & Documents
Technical Information & Performance
SYSTEM KIT
| Total Cooling Capacity | 24,000 BTU/h |
| Per Zone Capacity | 12,000 BTU/h each |
| Total Heating Capacity | 24,800 BTU/h |
| SEER2 Rating | 21 |
| HSPF Rating | 10 |
| Voltage | 208-230V / 60Hz |
| Number of Zones | 2 |
| Refrigerant Type | R454B (pre-charged) |
| Indoor Units | 2× ceiling cassette units (24" × 24") |
| Air Distribution | 4-way (360°) per unit |
| Linesets Included | 2× 16 ft pre-charged |
| Operating Temperature | -13°F to 122°F |
| Sound Level (per unit) | 28–42 dB |
| Condensate Pumps | Integrated in each unit |

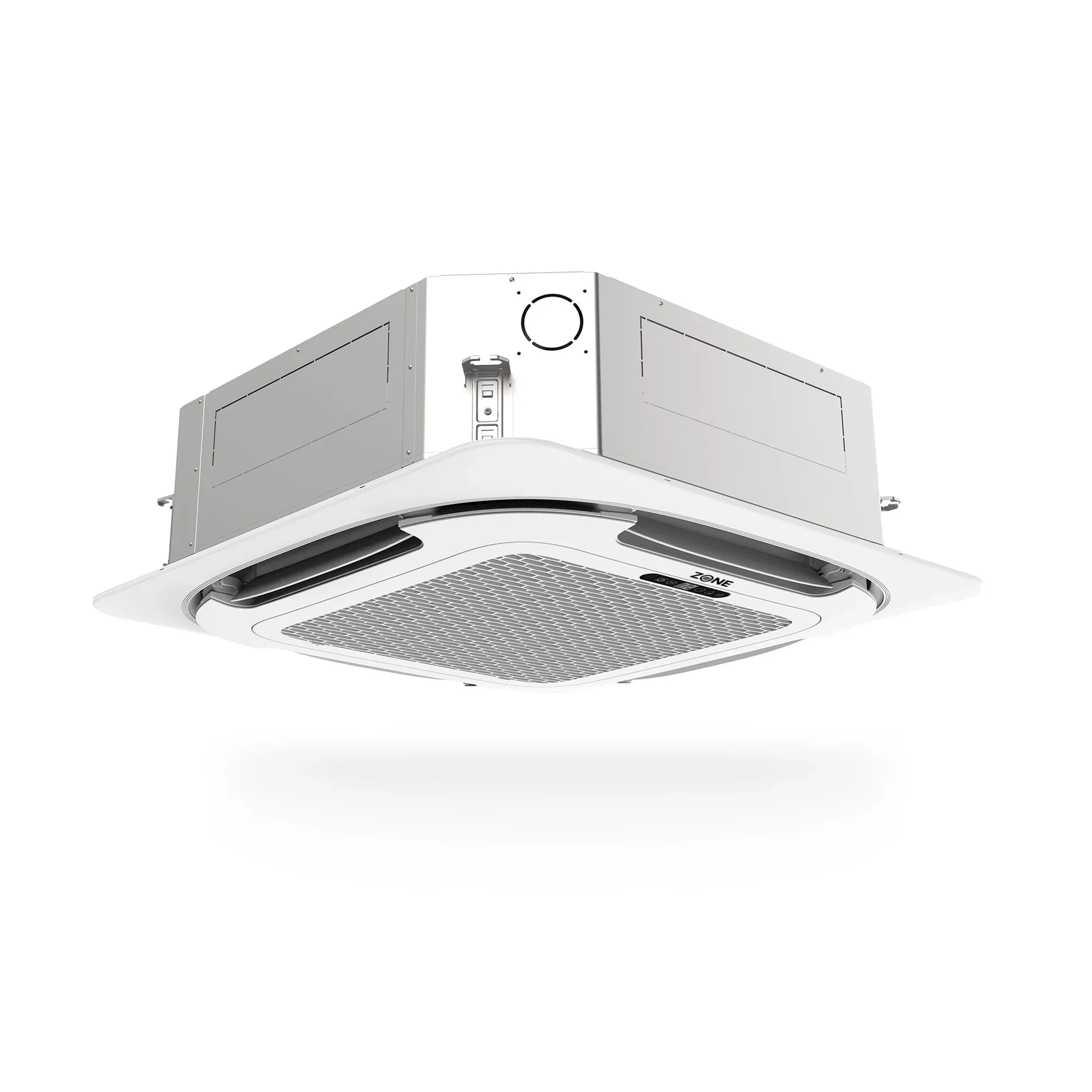

INDOOR UNIT
| Part Number | zdiy-cc-12I |
| Net Dimensions (WxDxH) | 25-5/8" x 25-5/8" x 22-1/2" |
| Carton Dimensions (WxDxH) | Coming soon |
| Net / Gross Weight | Coming soon |

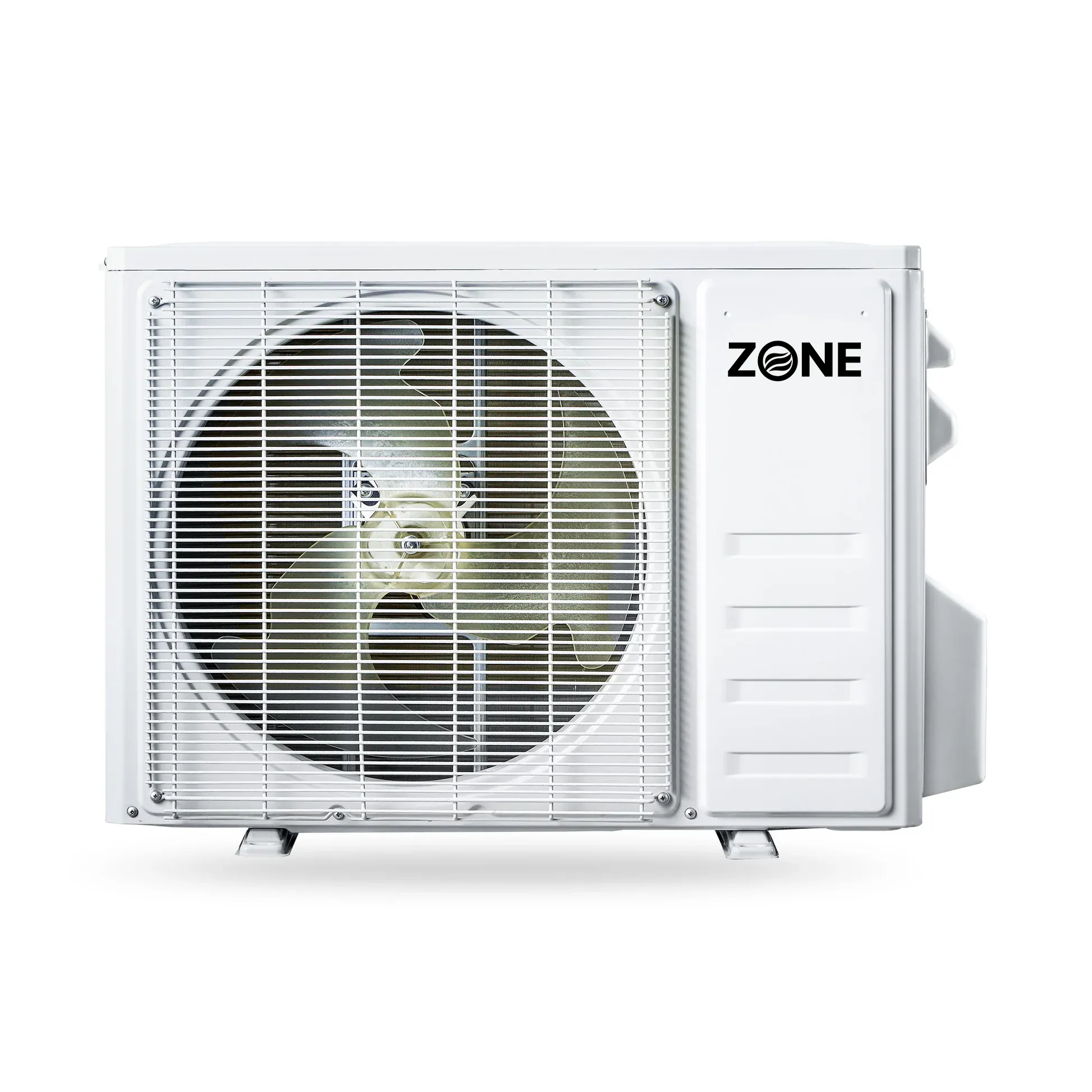

OUTDOOR UNIT
| Part Number | zdiy-cc-24O |
| Net Dimensions (WxDxH) | 31-7/8" x 12" x 21-5/8" |
| Carton Dimensions (WxDxH) | Coming soon |
| Net / Gross Weight | Coming soon |
Even Temperature Throughout
360° Air Distribution
Four-way distribution eliminates hot and cold spots, spreading conditioned air evenly throughout the entire space.
Year-Round Comfort
Smart Louver Control
Intelligent louvers auto-adjust: 10° angle for gentle cooling, 85° angle to push warm air downward in heating mode.
Control From Anywhere

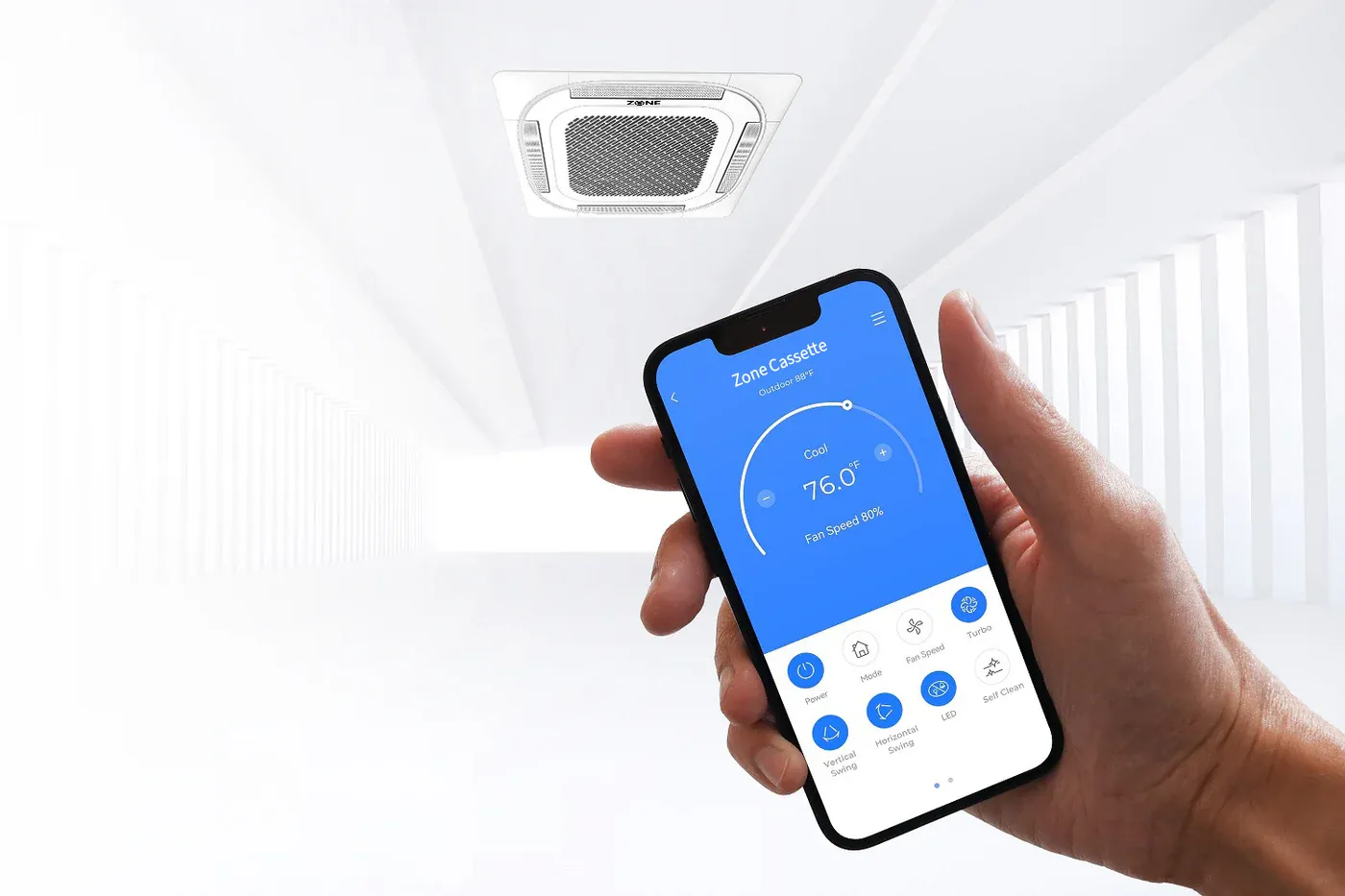

Wi-Fi Smart Control
Control from anywhere with the Zone Air app. Adjust temperature, set schedules, and monitor energy usage from your phone.
Simple Upkeep
Easy Filter Access
Panel drops down for quick access to washable, reusable filters. No tools required.
Advanced Features
Smart Climate Control
- ✓Independent zone control
- ✓360° air distribution per zone
- ✓24-hour programmable timer
- ✓Turbo mode for rapid cooling/heating
- ✓Auto mode with intelligent temperature control
- ✓ECO mode for energy savings
Premium Components
- ✓High-efficiency rotary compressor
- ✓Premium indoor motors
- ✓4-speed variable fan control
- ✓R454B eco-friendly refrigerant
- ✓Fire-proof electrical enclosure
- ✓High-efficiency heat exchanger
Convenience & Safety
- ✓Auto-restart after power loss
- ✓Self-diagnostic system
- ✓Refrigerant leakage detection
- ✓Emergency manual operation
- ✓Ceiling panel indicator lights
- ✓Temperature display toggle (°C/°F)
Easy Maintenance
- ✓Drop-down panel for filter access
- ✓Washable air filters

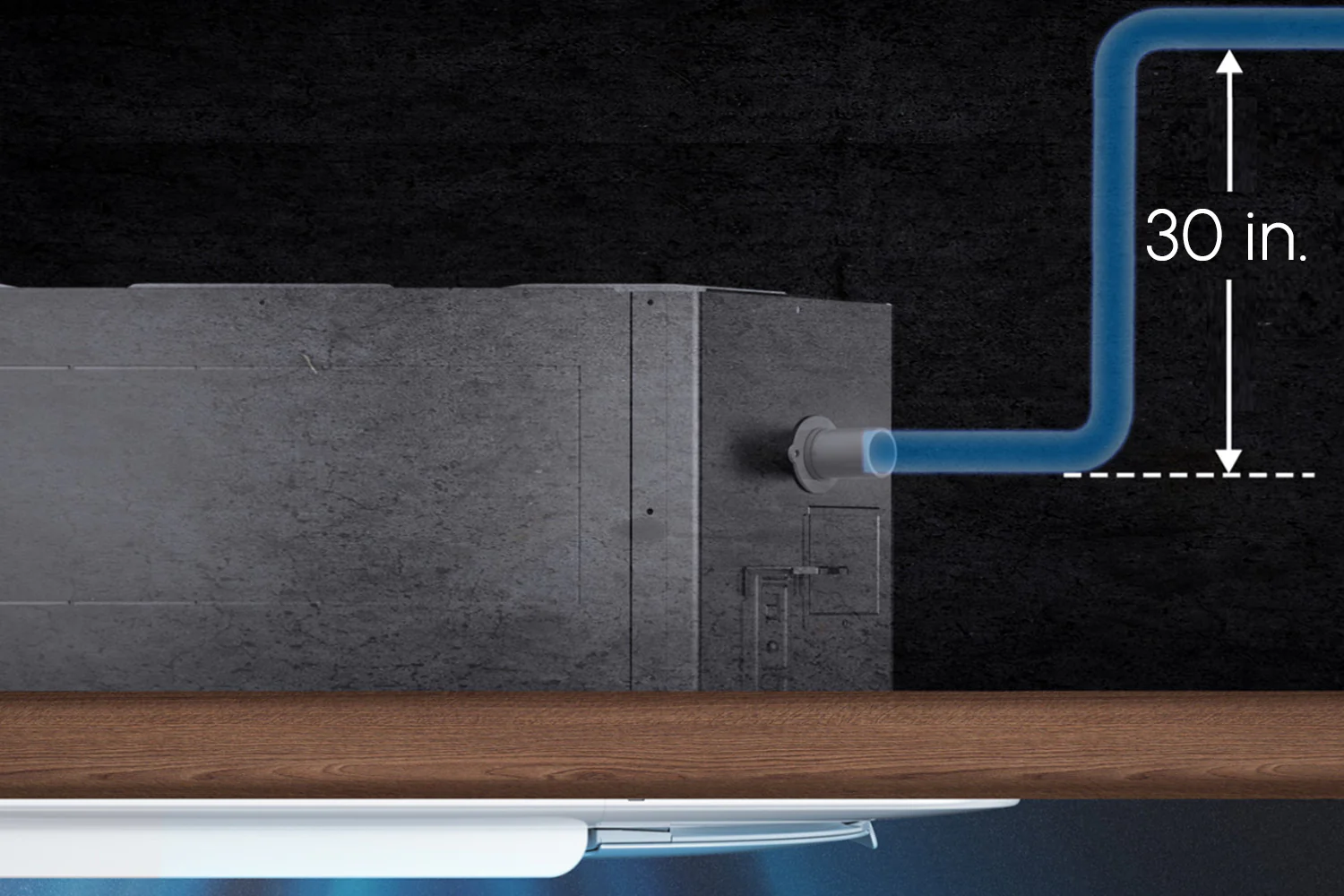

- ✓Condensate pumps included
- ✓Self-cleaning function
- ✓Quick service access
- ✓Anti-cold wind protection
Operating Temperature Range
Customer Reviews
Installing two units in our open plan office - one for the main work area and one in the conference room. The 360° airflow keeps everyone comfortable no matter where they sit. Having independent control lets us cool down the conference room when the big meetings are happening. Plus the units look super professional.
We've got one air handler over the dining area and one over the bar. Both zones stay perfectly comfortable thanks to independent control. What I really love is the super quiet operation - guests can have real conversations without the constant hum of the heating or air conditioning. Plus the ceiling mount is way more classy than wall units.
Our architect recommended ceiling cassettes for our new home and we're really glad we went that route. Two zones gives us independent control over the living area and master suite. This 4 way airflow has totally eliminated the hot and cold spots we used to have with our old system. Plus the units are super clean and perform great.
We've got both units up and running and they've been working beautifully. They're quiet, efficient, and the even air distribution is much better than wall units. Just a heads up - you'll need to have enough ceiling space (about 12") for installation. We love having independent control for each zone.
