The DIY Mini Split Buyer’s Guide

A DIY mini split is a ductless heat pump engineered for homeowner installation. The defining feature is a pre-charged refrigerant lineset with quick-connect fittings — the system arrives pressurized and ready to mate, so the installer never opens the refrigerant circuit. That single design choice eliminates the vacuum pump, manifold gauges, flaring tools, and EPA Section 608 certification that traditional mini splits require. A first-time installer can complete a single-zone wall-mount install in 4–8 hours with basic hand tools.

Pre-Charged vs Traditional Flare-Fitting Mini Splits

Traditional mini splits use copper-flare line connections. The installer flares the copper to a 45° cone, pressure-tests with dry nitrogen to 500 psi, evacuates the lines below 500 microns with a vacuum pump, and finally opens the service valves to let the factory refrigerant charge fill the lines. Each step requires a tool, a skill, and (for the refrigerant work) an EPA Section 608 license. A pre-charged DIY mini split skips every step. The lineset arrives pressurized with R454B refrigerant; the installer hand-tightens the quick-connect couplings, torques to spec, and the system is ready. No license, no permit-pulling for the refrigerant work itself, no $400–$1,800 in vacuum-pump tooling.

R454B vs R410A — What Changed and Why It Matters

Federal regulation phased out R410A for new residential systems in 2025 due to its high global-warming potential (GWP of 2,088). R454B has a GWP of 466 — roughly 78% lower — and offers slightly higher cooling efficiency for the same compressor work. Every Zone Air system uses R454B. The practical implication for a DIY installer: the refrigerant is mildly flammable (A2L classification), so installation and storage need basic ventilation precautions, but the consumer-facing install procedure is unchanged from R410A pre-charged systems. For deeper background: inverter mini split technology guide.

How to Size a Mini Split — The 20 BTU Rule

Start with 20 BTU per square foot of conditioned space. A 14×16 bedroom (224 sq ft) lands on a 9,000 BTU system. A 350–550 sq ft master suite or living room lands on 12,000 BTU. A 600–850 sq ft great room or finished basement lands on 18,000 BTU. Adjust for hidden load drivers: derate 15% for sun-facing walls, derate proportionally for ceilings over 8 ft, derate 25% for kitchens (cooking heat is a major load). The most common sizing mistake we see is upsizing for headroom — installing a 12K when a 9K would have been correct. Oversized mini splits short-cycle (turn on, hit setpoint quickly, turn off, repeat), which removes less humidity and burns more electricity than a correctly-sized system running steadily. Detailed sizing math: mini split sizing guide.

Choosing 115V vs 230V

Voltage choice is mostly forced by capacity. Our 9K and 12K 115V wall mounts plug into a standard 15A outlet — no electrician, no breaker work, no permit in most jurisdictions. They’re the right call when you have a free outlet on the wall and don’t want to mess with the panel. 18K and most cassette/concealed configurations require 230V because the compressor needs more current than a 115V circuit can supply. 230V installs need a dedicated 20–30A circuit; most homes with central AC or an electric dryer have spare panel capacity, and an electrician can add the new circuit for $300–$600. The hybrid play: hire an electrician for the new circuit and DIY the mechanical install — saves $1,000–$1,800 vs full-pro installation.

Wall Mount vs Ceiling Cassette vs Concealed Duct

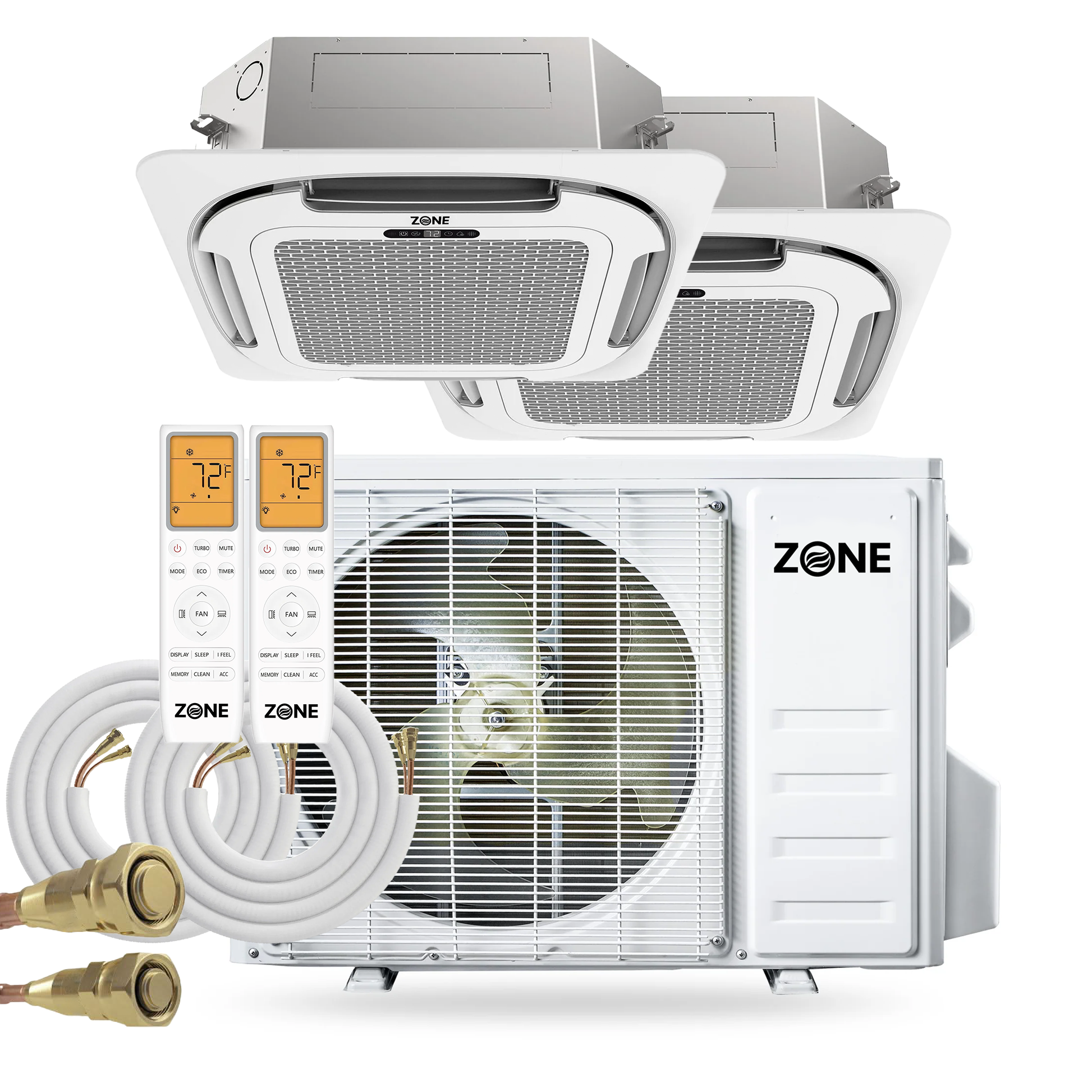

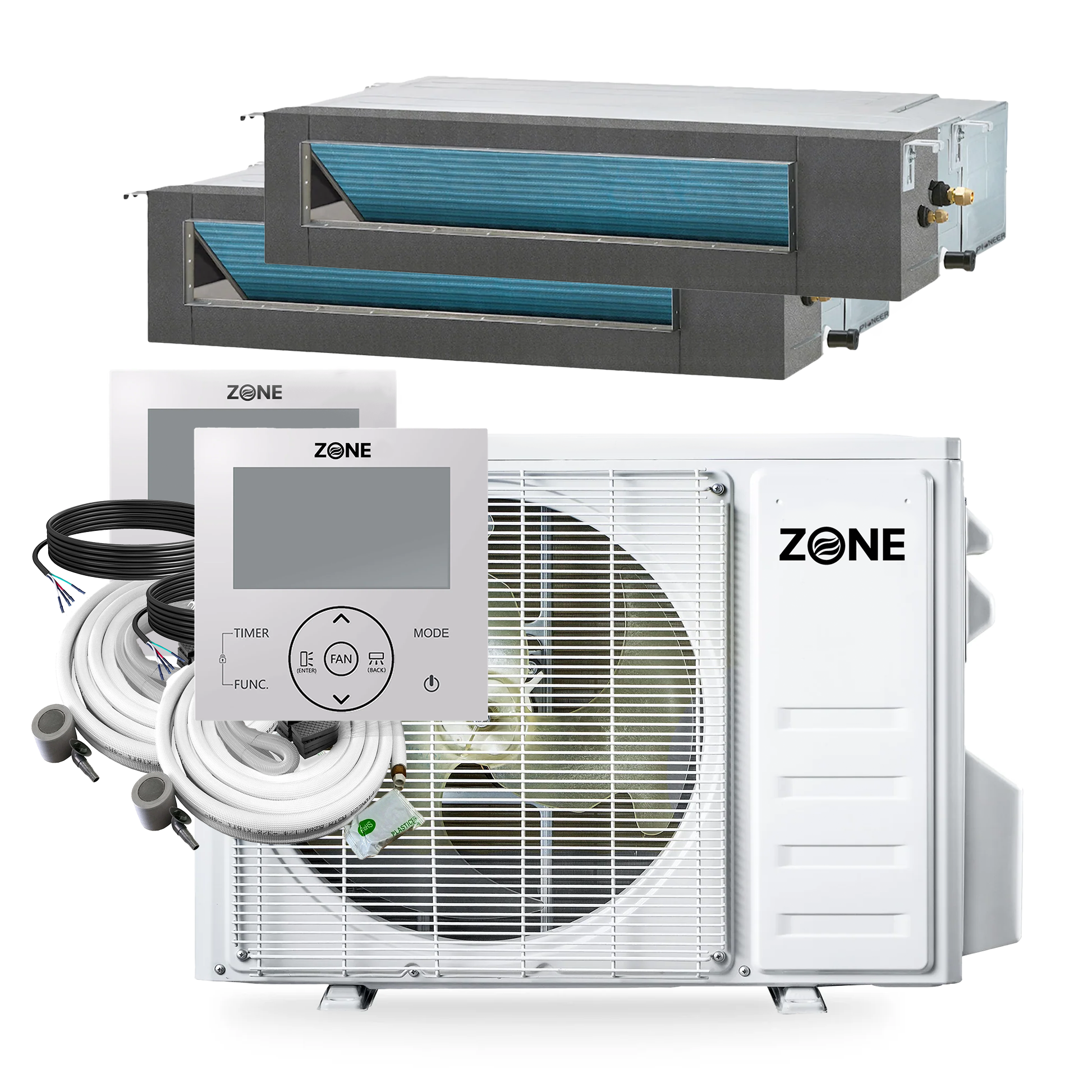

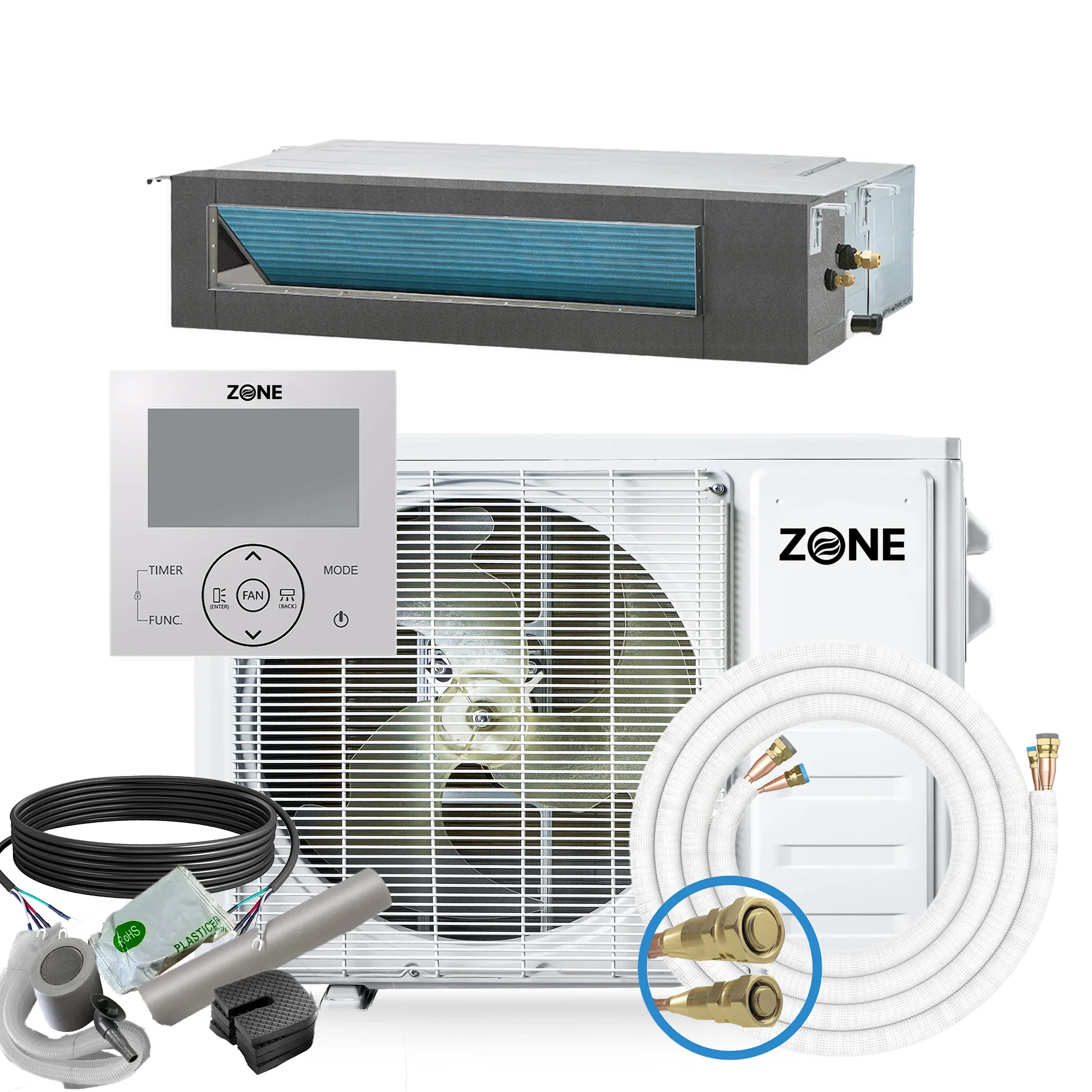

Three indoor unit form factors, each suited to different rooms. Wall mount is the default — easiest to install (mount bracket, hang unit), lowest equipment cost, and the simplest to service. Pick wall mount unless you have a specific reason not to. Ceiling cassette mounts flush in a drop ceiling with 4-way airflow. Pick cassette when you have a drop ceiling and want HVAC out of the visual frame, or when the room layout favors center-of-room throw over wall-mounted directional flow. Concealed duct hides the indoor unit above a soffit or in an attic and pushes air through short duct runs to ceiling vents. Pick concealed when fully invisible HVAC is the priority — luxury renovations, historic homes, and modern designs where wall-mounted units would clash visually.

Single Zone vs Dual Zone vs Multi Zone

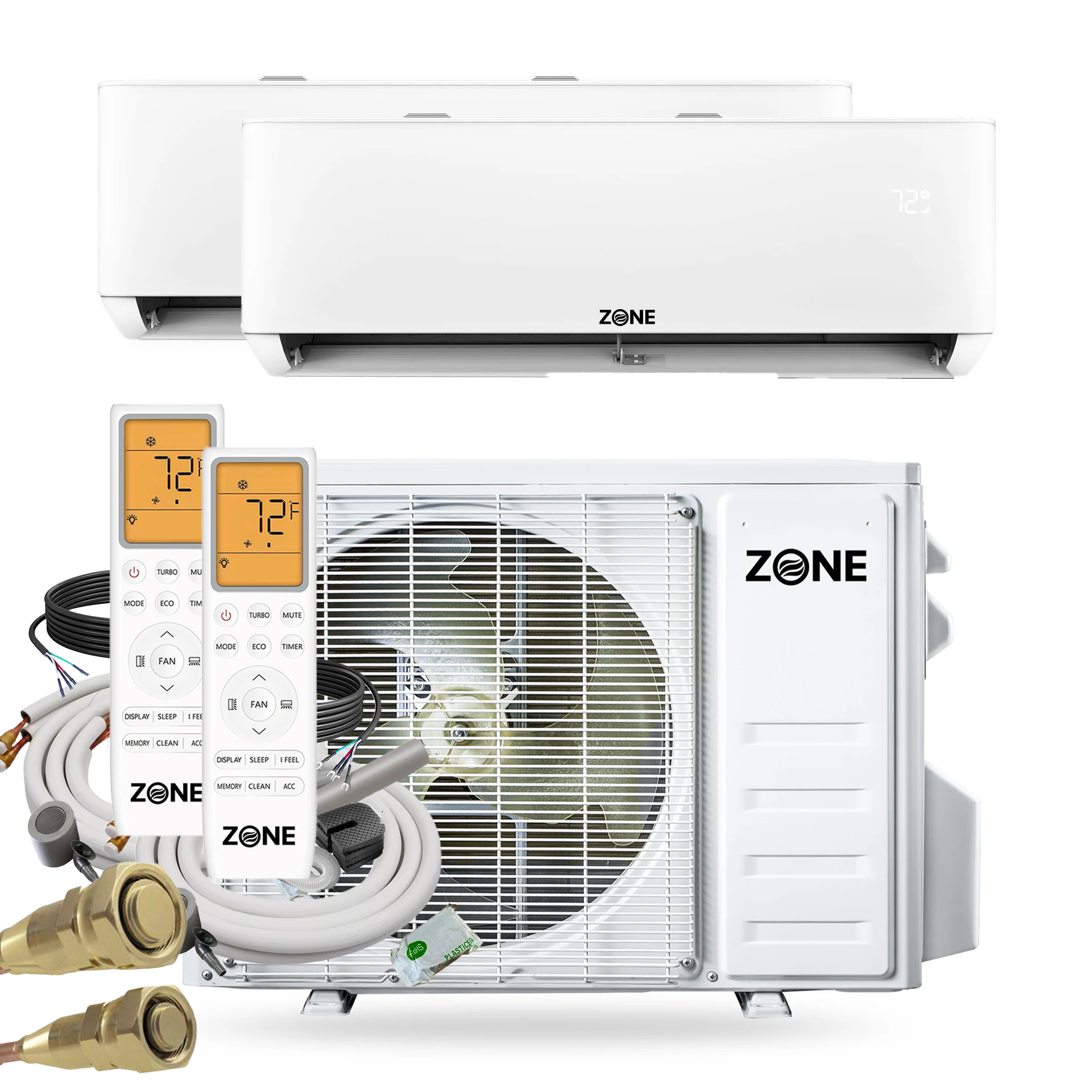

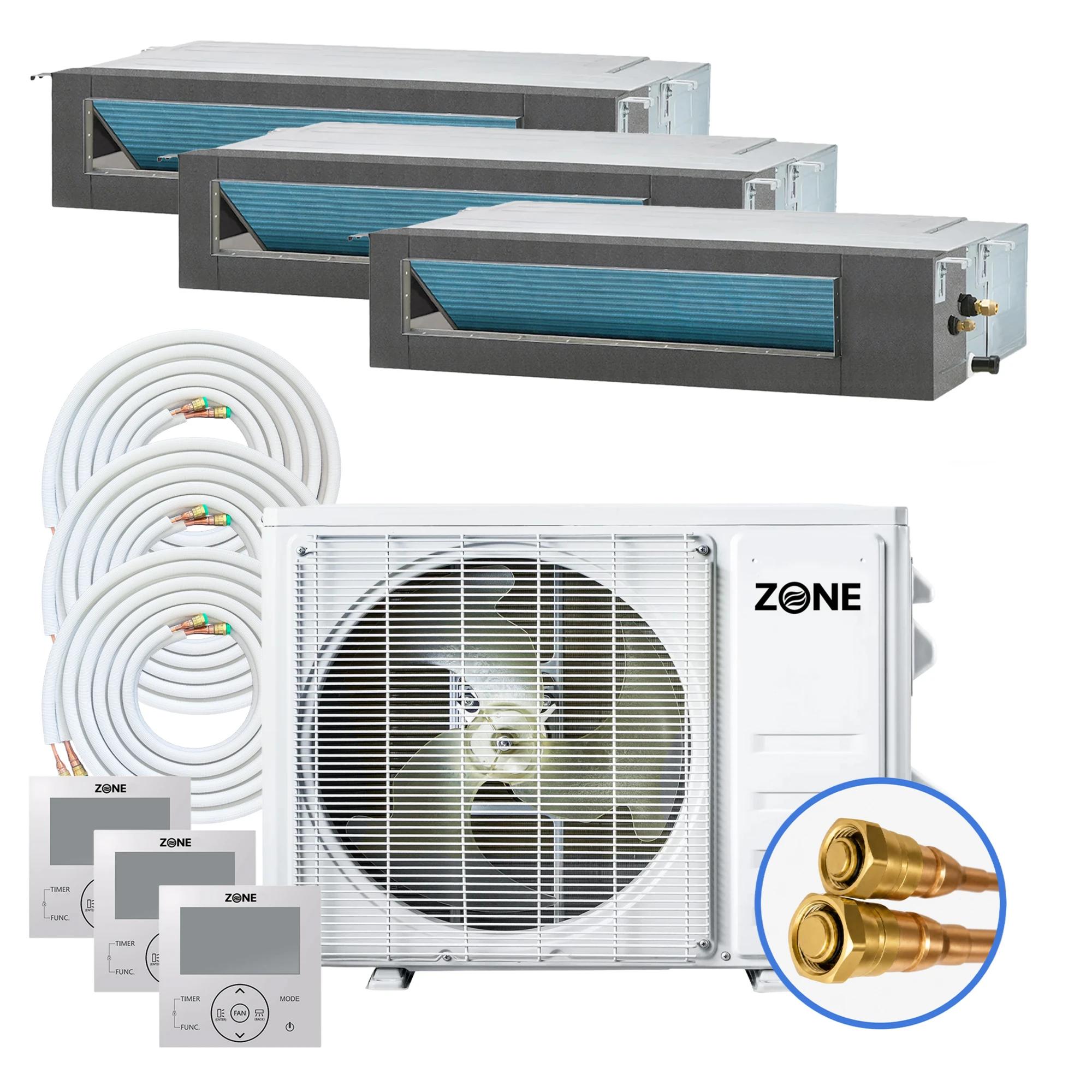

Single zone means one indoor head paired with one outdoor condenser, capacities matched. Right for one room or one open space. Dual zone means two indoor heads on one shared outdoor condenser, with independent thermostats per head. Right for two rooms with different schedules — bedroom cool overnight, kitchen warm during the day. Multi zone extends the same idea to 3–5 indoor heads. Don’t default to multi-zone for multi-room projects: when rooms are far apart in the house or have very different load profiles, two separate single-zone systems often outperform one multi-zone system because each compressor sizes to its room rather than running at 25% modulation.

What You Save with DIY Install

Typical DIY savings run $1,500–$3,000 per zone in avoided labor, plus $400–$1,800 in vacuum-pump and gauge-set tooling you don’t need to buy or rent, plus $150–$250 in EPA certification fees. Total per-zone savings vs full-pro install: $2,050–$5,050. A Zone Air 12K 115V wall mount at $2,189 DIY-installed is roughly half the all-in cost of the same equipment professionally installed at $4,500–$5,500. Detailed breakdown: mini split installation cost guide. Want a sense of operating-cost savings vs central AC? Our annual savings analysis walks through the run-cost math.

What Ships with Every Zone Air System

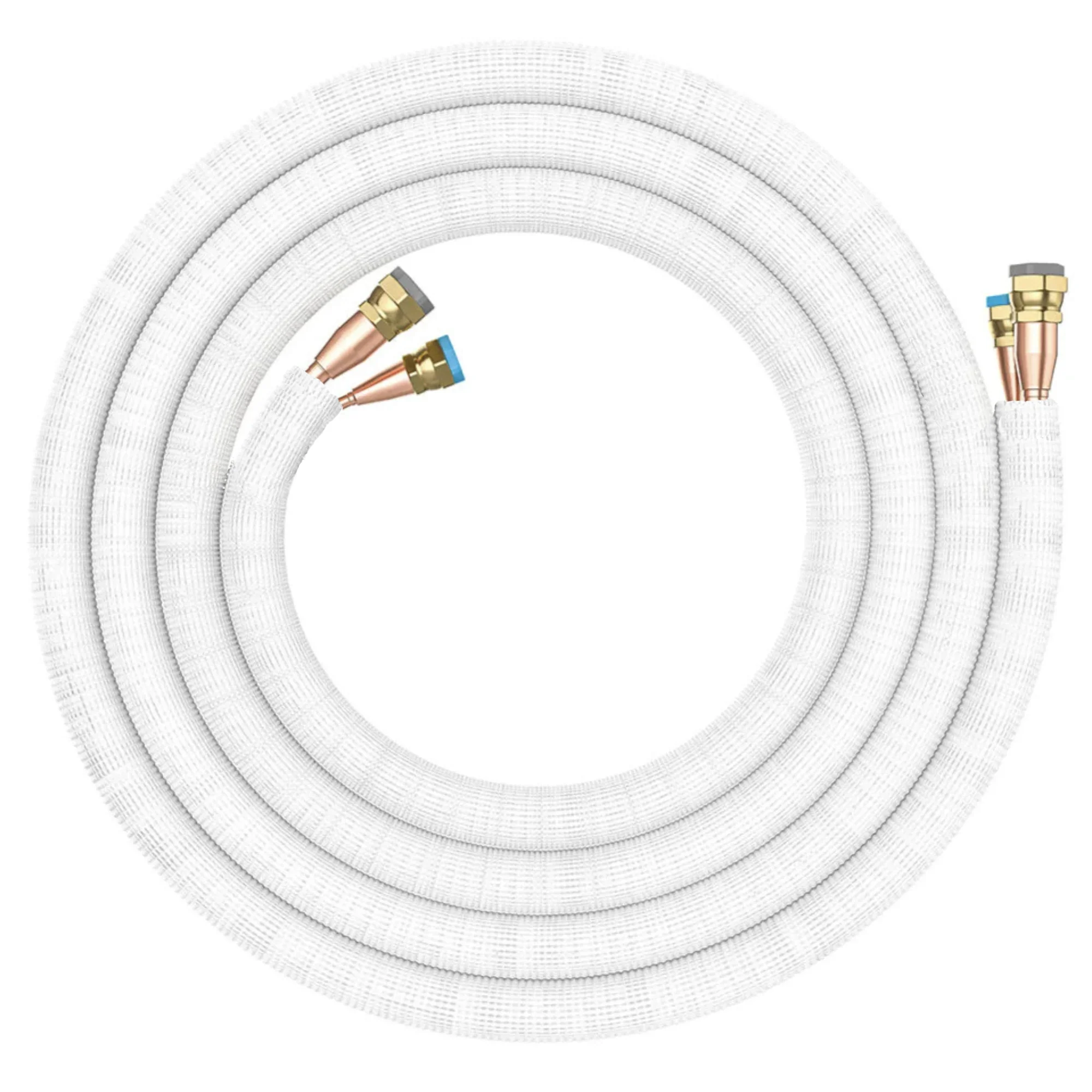

Every Zone Air mini split ships with the indoor unit, outdoor condenser, 16 ft pre-charged R454B refrigerant lineset, wireless remote, mounting brackets and hardware, and step-by-step installation instructions. Single-zone systems ship with one lineset; dual-zone bundles ship with two. Need a longer run? Pre-charged lineset extensions are available. Coverage includes a 7-year compressor warranty, 5-year parts warranty, free shipping on every order, 45-day returns, and live tech support 9–5 MST.
