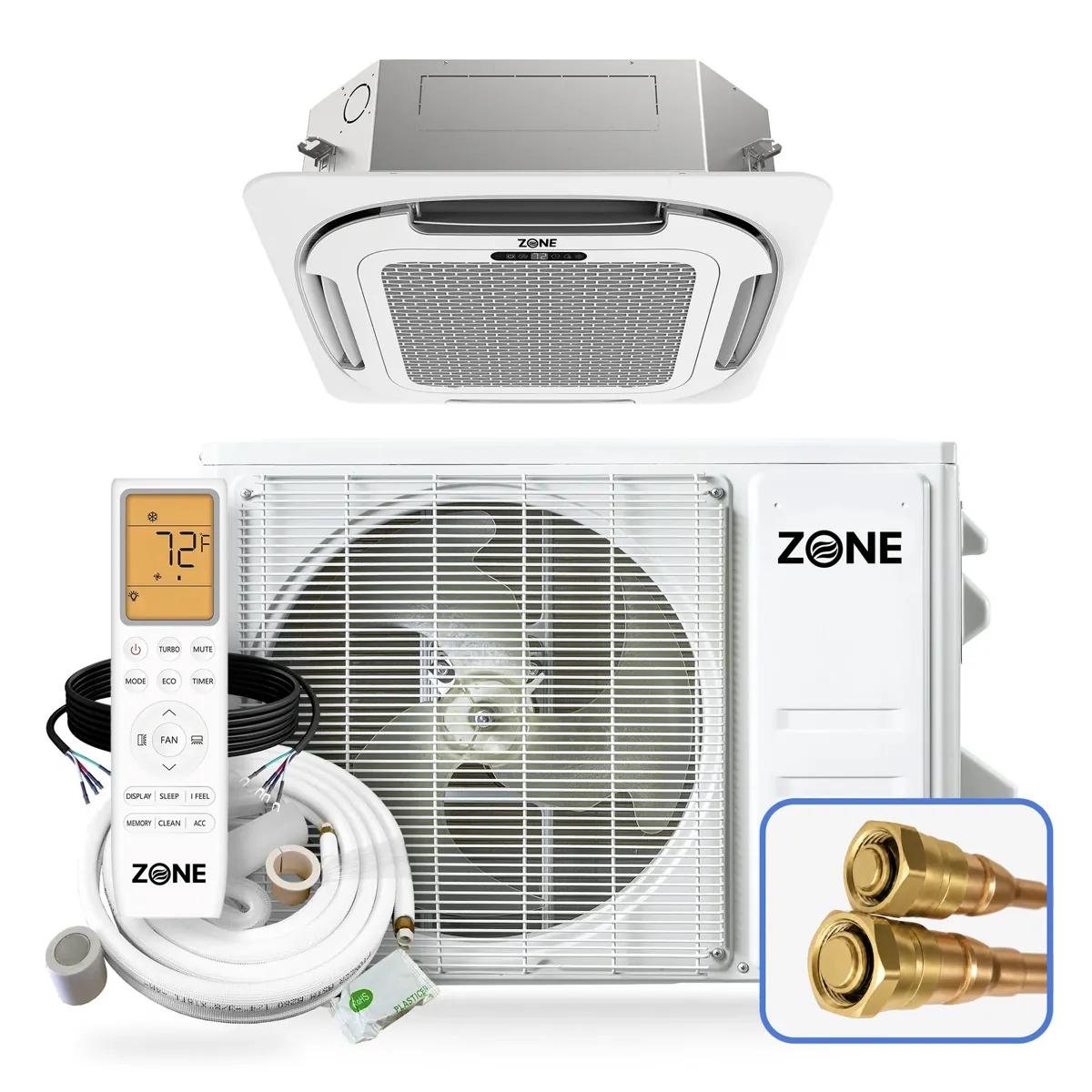

Zone Air® Airframe 12,000 BTU 21 SEER2 230V Ceiling Cassette Mini-Split Heat Pump AC with Pre-Charged Lineset - Up to 600 Sq Ft
Frequently Purchased Together
At a Glance
Electrical Requirements
Payment & Security
Your payment information is processed securely. We do not store credit card details.
System Overview
Your Purchase Includes
Everything you need for a complete DIY installation
Summary
- Cooling capacity: 12,000 BTU/h with 21.0 SEER2 / 11.7 EER2 efficiency
- Heating capacity: 12,000 BTU/h with 10.0 / 8.9 HSPF2
- Voltage: 208~230V, 60Hz, 1Ph
- Environmentally friendly R454b (pre-charged)
- Low ambient range operation: heating down to -13°F
- Variable-speed DC inverter driven performance
- Pre-charged lineset included for DIY installation
- Energy Star certified
Features
- 208-230V ceiling cassette installation
- Pre-charged with eco-friendly R454b refrigerant
- Variable-speed DC inverter for efficient performance
- Works in extreme temps (-13°F to 131°F)
- Cooling, heating, dry, and fan modes
- 4-way 360° air distribution
- Washable, reusable air filters
The outdoor unit is factory pre-charged with R454b (pre-charged) refrigerant, accommodating refrigerant line lengths of up to 25 ft. per circuit. If using a lineset that exceeds this length, additional refrigerant will need to be charged into the system during installation. This model can only be purchased with the 25 ft. lineset option. If needing a different length, please purchase additional linesets here.

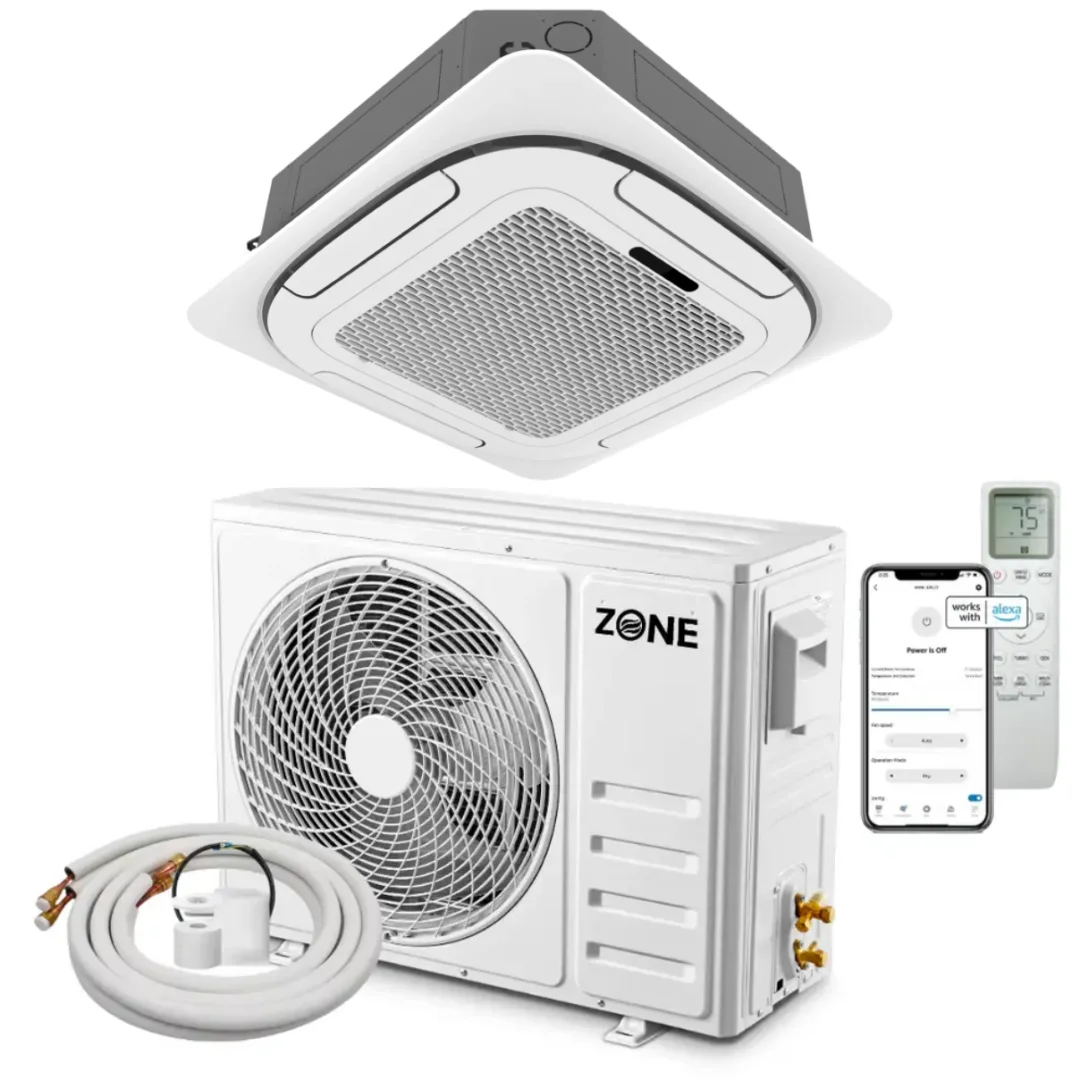

Airframe Ceiling Cassette Series
Zone Air® ceiling cassette systems provide 360-degree airflow from a flush-mounted ceiling unit. Ideal for offices, commercial spaces, and modern homes where wall space is limited. Each system includes a decorative panel, pre-charged lineset, and full installation hardware.
What's Included in Your Purchase
- ✓ Indoor Unit
- ✓ Outdoor Unit
- ✓ Wireless Remote Control
- ✓ Remote Control Wall Holder
- ✓ Remote Control Batteries
- ✓ Decorative Ceiling Panel
- ✓ 16 Ft. Copper Lines
- ✓ 16 Ft. Electrical Wire
- ✓ 10 Ft. Drain for Indoor/Outdoor
- ✓ Wall Passage Sleeve
- ✓ Putty for Wall Hole
- ✓ Leak Guard Sealer
- ✓ Wrapping Tape
- ✓ Installation Manual
- ✓ User's Manual
Product Warranty
Warranty registration is required within 90 days of purchase. Please check our Warranty Policy.
- Up to 5 years warranty on parts
- Up to 7 years warranty on compressor
Manuals & Documents
Technical Information & Performance
SYSTEM KIT
| Power Supply | 208~230V, 60Hz, 1Ph |
| Cooling Rated Capacity | 12,000 BTU/h |
| Cooling Capacity Range | 2,000~13,600 BTU/h |
| Cooling SEER2 | 21.0 |
| Cooling EER2 | 11.7 |
| Heating Rated Capacity | 12,000 BTU/h |
| Heating Capacity Range | 3,100~12,700 BTU/h |
| Heating HSPF2 (Region IV/V) | 10.0 / 8.9 |
| Heating COP2 (47°F/5°F) | 3.5 / 1.9 |
| Refrigerant Type | R454b (pre-charged) |
| Recommended Room Size | 350~600 sq ft |
| Indoor Air Flow (Turbo/Hi/Med/Lo/Mute) | 500 / 470 / 411 / 323 / 205 CFM |
| Indoor Sound Level (Turbo/Hi/Med/Lo/Mute) | 46 / 44 / 36 / 32 / 30 dB(A) |
| Indoor Unit Dimensions (WxDxH) | 22-1/2" x 22-1/2" x 9-5/8" |
| Indoor Unit Weight | 32.0 lbs |
| Indoor Carton Dimensions (WxDxH) | 28-1/4" x 25-7/8" x 11-7/8" |
| Indoor Net / Gross Weight | 32.0 / 38.6 lbs |
| Decorative Panel Dimensions (WxDxH) | 25-5/8" x 25-5/8" x 2-3/8" |
| Decorative Panel Carton (WxDxH) | 28-7/8" x 28-7/8" x 4-3/8" |
| Decorative Panel Weight | 6.0 / 9.5 lbs |
| Breaker Needed | 15A (double-pole) |
| Outdoor Sound Level | 52 dB(A) |
| Outdoor Unit Dimensions (WxDxH) | 31-7/8" x 12" x 21-5/8" |
| Outdoor Unit Weight | 58.4 lbs |
| Outdoor Carton Dimensions (WxDxH) | 32-7/8" x 13" x 22-5/8" |
| Outdoor Net / Gross Weight | 58.4 / 65.0 lbs |
| Air Distribution | 4-way (360°) |
| Lineset Length Included | 16 ft |
INDOOR UNIT
| Part Number | zdiy-cc-12I |
| Air Flow (Turbo/Hi/Med/Lo/Mute) | 500 / 470 / 411 / 323 / 205 CFM |
| Sound Level (Turbo/Hi/Med/Lo/Mute) | 46 / 44 / 36 / 32 / 30 dB(A) |
| Net Dimensions (WxDxH) | 25-5/8" x 25-5/8" x 22-1/2" |
| Carton Dimensions (WxDxH) | 28-1/4" x 25-7/8" x 11-7/8" |
| Net / Gross Weight | 32.0 / 38.6 lbs |
OUTDOOR UNIT
| Part Number | zdiy-cc-12O |
| Breaker Needed | 15A (double-pole) |
| Net Dimensions (WxDxH) | 31-7/8" x 12" x 21-5/8" |
| Sound Level | 52 dB(A) |
| Carton Dimensions (WxDxH) | 32-7/8" x 13" x 22-5/8" |
| Net / Gross Weight | 58.4 / 65.0 lbs |

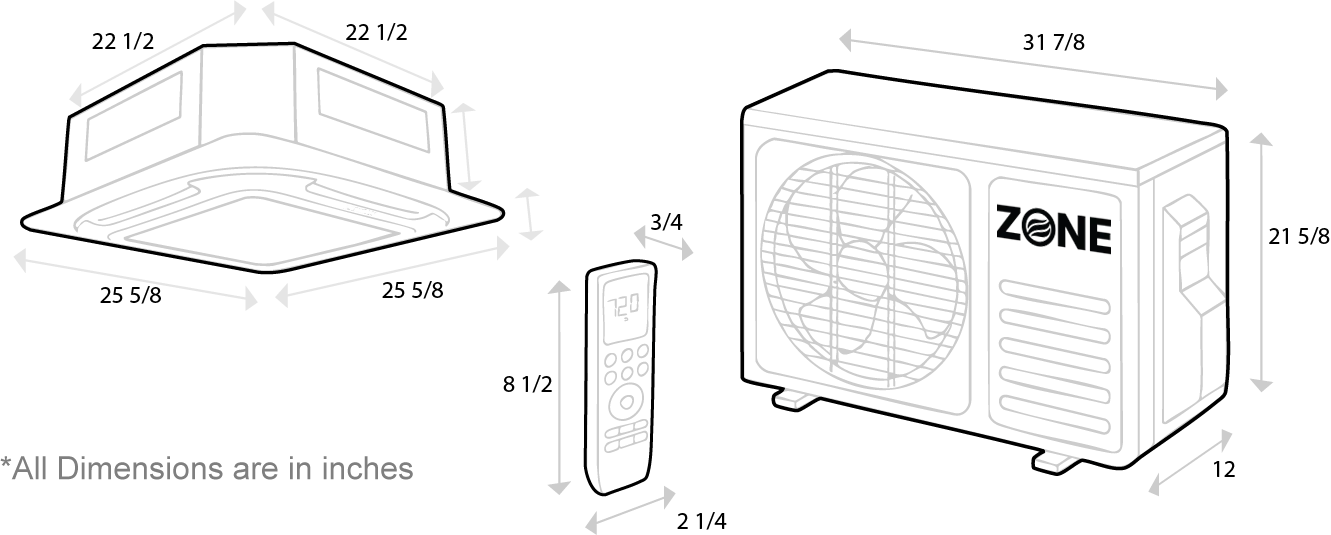

DIMENSION CHART
Even Temperature Throughout
360° Air Distribution
Four-way distribution eliminates hot and cold spots, spreading conditioned air evenly throughout the entire space.
Year-Round Comfort
Smart Louver Control
Intelligent louvers auto-adjust: 10° angle for gentle cooling, 85° angle to push warm air downward in heating mode.
Control From Anywhere
Wi-Fi Smart Control
Control from anywhere with the Zone Air app. Adjust temperature, set schedules, and monitor energy usage from your phone.
Simple Upkeep
Easy Filter Access
Panel drops down for quick access to washable, reusable filters. No tools required.
Advanced Features
Smart Controls
- ✓ECO mode for energy savings
- ✓SLEEP mode for overnight comfort
- ✓TURBO mode for rapid heating/cooling
- ✓IFEEL sensor detects local temperature
- ✓MEMORY recalls your favorite settings
- ✓Timer on/off scheduling
Premium Design
- ✓Variable-speed DC inverter compressor
- ✓Dual-axis motorized louvers
- ✓Dual drainage ports for flexible installation
- ✓Self-clean cycle keeps unit fresh
- ✓4-way 360° air distribution
Easy Installation
- ✓Pre-charged lineset included
- ✓208-230V compatible
- ✓Fits standard ceiling grids
- ✓DIY-friendly with no vacuum pump needed
Convenience
- ✓Auto-restart after power loss
- ✓Self-diagnostic system
- ✓Display on/off option
- ✓Temperature display (°C/°F)
Operating Temperature Range
