Zone Air® Airframe 9,500 BTU 21 SEER2 230V Ceiling Cassette Mini-Split Heat Pump AC with Pre-Charged Lineset - Up to 475 Sq Ft
Frequently Purchased Together
At a Glance
Electrical Requirements
Payment & Security
Your payment information is processed securely. We do not store credit card details.
System Overview
Your Purchase Includes
Everything you need for a complete DIY installation
Summary
- Cooling capacity: 9,500 BTU/h with 21.0 SEER2 / 11.7 EER2 efficiency
- Heating capacity: 9,500 BTU/h with 10.0 / 8.9 HSPF2
- Voltage: 208~230V, 60Hz, 1Ph
- Environmentally friendly R454b (pre-charged)
- Low ambient range operation: heating down to -13°F
- Variable-speed DC inverter driven performance
- Pre-charged lineset included for DIY installation
- Energy Star certified
Features
- 4-way air distribution for even coverage
- Flush ceiling mount design
- Compact 24" x 24" footprint fits standard ceiling grids
- Ultra-quiet 30 dB operation
- WiFi-enabled smart controls
- Independent dehumidification mode
- Pre-charged lineset included
The outdoor unit is factory pre-charged with R454b (pre-charged) refrigerant, accommodating refrigerant line lengths of up to 25 ft. per circuit. If using a lineset that exceeds this length, additional refrigerant will need to be charged into the system during installation. This model can only be purchased with the 25 ft. lineset option. If needing a different length, please purchase additional linesets here.
Airframe Ceiling Cassette Series

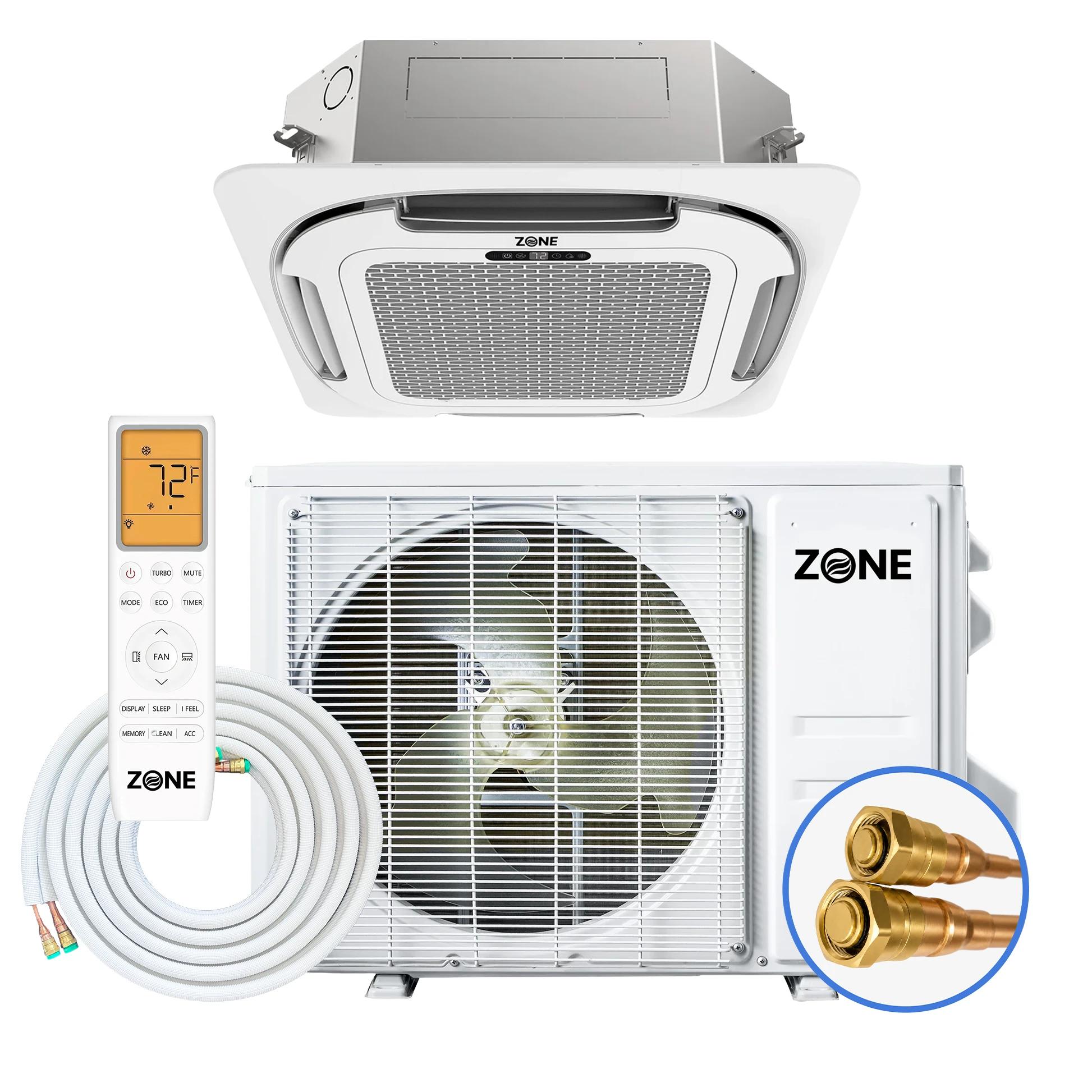

Zone Air® ceiling cassette systems provide 360-degree airflow from a flush-mounted ceiling unit. Ideal for offices, commercial spaces, and modern homes where wall space is limited. Each system includes a decorative panel, pre-charged lineset, and full installation hardware.
What's Included in Your Purchase
- ✓ Indoor Unit
- ✓ Outdoor Unit
- ✓ Wireless Remote Control
- ✓ Remote Control Wall Holder
- ✓ Remote Control Batteries
- ✓ Decorative Ceiling Panel
- ✓ 16 Ft. Copper Lines
- ✓ 16 Ft. Electrical Wire
- ✓ 10 Ft. Drain for Indoor/Outdoor
- ✓ Wall Passage Sleeve
- ✓ Putty for Wall Hole
- ✓ Leak Guard Sealer
- ✓ Wrapping Tape
- ✓ Installation Manual
- ✓ User's Manual
Product Warranty
Warranty registration is required within 90 days of purchase. Please check our Warranty Policy.
- Up to 5 years warranty on parts
- Up to 7 years warranty on compressor
Manuals & Documents
Technical Information & Performance
SYSTEM KIT
| Power Supply | 208~230V, 60Hz, 1Ph |
| Cooling Rated Capacity | 9,500 BTU/h |
| Cooling Capacity Range | 2,000~10,400 BTU/h |
| Cooling SEER2 | 21.0 |
| Cooling EER2 | 11.7 |
| Heating Rated Capacity | 9,500 BTU/h |
| Heating Capacity Range | 3,100~12,500 BTU/h |
| Heating HSPF2 (Region IV/V) | 10.0 / 8.9 |
| Heating COP2 (47°F/5°F) | 3.5 / 1.9 |
| Refrigerant Type | R454b (pre-charged) |
| Recommended Room Size | 350~500 sq ft |
| Indoor Air Flow (Turbo/Hi/Med/Lo/Mute) | 500 / 470 / 411 / 323 / 205 CFM |
| Indoor Sound Level (Turbo/Hi/Med/Lo/Mute) | 46 / 44 / 36 / 32 / 30 dB(A) |
| Indoor Unit Dimensions (WxDxH) | 22-1/2" x 22-1/2" x 9-5/8" |
| Indoor Unit Weight | 32.0 lbs |
| Indoor Carton Dimensions (WxDxH) | 28-1/4" x 25-7/8" x 11-7/8" |
| Indoor Net / Gross Weight | 32.0 / 38.6 lbs |
| Decorative Panel Dimensions (WxDxH) | 25-5/8" x 25-5/8" x 2-3/8" |
| Decorative Panel Carton (WxDxH) | 28-7/8" x 28-7/8" x 4-3/8" |
| Decorative Panel Weight | 6.0 / 9.5 lbs |
| Breaker Needed | 15A (double-pole) |
| Outdoor Sound Level | 52 dB(A) |
| Outdoor Unit Dimensions (WxDxH) | 31-7/8" x 12" x 21-5/8" |
| Outdoor Unit Weight | 58.4 lbs |
| Outdoor Carton Dimensions (WxDxH) | 32-7/8" x 13" x 22-5/8" |
| Outdoor Net / Gross Weight | 58.4 / 65.0 lbs |
| Air Distribution | 4-way (360°) |
| Lineset Length Included | 16 ft |
INDOOR UNIT
| Part Number | zdiy-cc-9I |
| Air Flow (Turbo/Hi/Med/Lo/Mute) | 500 / 470 / 411 / 323 / 205 CFM |
| Sound Level (Turbo/Hi/Med/Lo/Mute) | 46 / 44 / 36 / 32 / 30 dB(A) |
| Net Dimensions (WxDxH) | 25-5/8" x 25-5/8" x 22-1/2" |
| Carton Dimensions (WxDxH) | 28-1/4" x 25-7/8" x 11-7/8" |
| Net / Gross Weight | 32.0 / 38.6 lbs |
OUTDOOR UNIT
| Part Number | zdiy-cc-9O |
| Breaker Needed | 15A (double-pole) |
| Net Dimensions (WxDxH) | 31-7/8" x 12" x 21-5/8" |
| Sound Level | 52 dB(A) |
| Carton Dimensions (WxDxH) | 32-7/8" x 13" x 22-5/8" |
| Net / Gross Weight | 58.4 / 65.0 lbs |
DIMENSION CHART
Even Temperature Throughout
360° Air Distribution
Four-way distribution eliminates hot and cold spots, spreading conditioned air evenly throughout the entire space.
Year-Round Comfort
Smart Louver Control
Intelligent louvers auto-adjust: 10° angle for gentle cooling, 85° angle to push warm air downward in heating mode.
Control From Anywhere
Wi-Fi Smart Control
Control from anywhere with the Zone Air app. Adjust temperature, set schedules, and monitor energy usage from your phone.
Simple Upkeep
Easy Filter Access
Panel drops down for quick access to washable, reusable filters. No tools required.
Advanced Features
Smart Climate Control
- ✓360° air distribution
- ✓24-hour programmable timer
- ✓Turbo mode for rapid cooling/heating
- ✓Auto mode with intelligent temperature control
- ✓ECO mode for energy savings
- ✓Smart sleep mode
Premium Components
- ✓High-efficiency rotary compressor
- ✓Premium indoor motor
- ✓4-speed variable fan control
- ✓R454B eco-friendly refrigerant
- ✓Fire-proof electrical enclosure
- ✓High-efficiency heat exchanger
Convenience & Safety
- ✓Auto-restart after power loss
- ✓Self-diagnostic system
- ✓Refrigerant leakage detection
- ✓Emergency manual operation
- ✓Ceiling panel indicator lights
- ✓Temperature display toggle (°C/°F)
Easy Maintenance
- ✓Drop-down panel for filter access
- ✓Washable air filters
- ✓Condensate pump included
- ✓Self-cleaning function
- ✓Quick service access
- ✓Anti-cold wind protection
Operating Temperature Range
