Zone Air® Thin-Air DUAL ZONE 22,000 BTU (11K+11K) 19 SEER2 230V Concealed Mini-Split Heat Pump System - Up to 1,100 Sq Ft
Frequently Purchased Together
At a Glance
Electrical Requirements
45-day free returns • 7-year compressor warranty • Free shipping • Live US support 9–5 MST
Payment & Security
Your payment information is processed securely. We do not store credit card details.
System Overview
Your Purchase Includes
Everything you need for a complete installation
Summary
- Voltage: 208-230V
- Environmentally friendly R454B (pre-charged)
- Low ambient range operation: heating down to Independent zone control
- Variable-speed DC inverter driven performance
- Pre-charged lineset included for DIY installation
- Energy Star certified
Features
- Two 12,000 BTU concealed units
- Completely hidden installation
- Independent temperature control per zone
- Each unit can supply 2-3 rooms
- Ultra-quiet 39 dB operation
- Two pre-charged linesets included
- WiFi and wired controller options
The outdoor unit is factory pre-charged with R454B (pre-charged) refrigerant, accommodating refrigerant line lengths of up to 25 ft. per circuit. If using a lineset that exceeds this length, additional refrigerant will need to be charged into the system during installation. This model can only be purchased with the 25 ft. lineset option. If needing a different length, please purchase additional linesets here.
Thin-Air Concealed Series
Zone Air® concealed ducted systems hide completely above ceilings or in closets with only supply and return grilles visible. Ultra-slim design with built-in condensate pump and high static pressure for flexible duct routing.
What's Included in Your Purchase
- ✓ Indoor Unit
- ✓ Outdoor Unit
- ✓ Wired Wall Controller
- ✓ 16 Ft. Copper Lines
- ✓ 16 Ft. Electrical Wire
- ✓ 10 Ft. Drain for Indoor/Outdoor
- ✓ Wall Passage Sleeve
- ✓ Putty for Wall Hole
- ✓ Leak Guard Sealer
- ✓ Wrapping Tape
- ✓ Installation Manual
- ✓ User's Manual
Quick-Connect Installation
Product Warranty
Warranty registration is required within 90 days of purchase. Please check our Warranty Policy.
- Up to 5 years warranty on parts
- Up to 7 years warranty on compressor
Manuals & Documents
Technical Information & Performance
SYSTEM KIT
| Total Cooling Capacity | 24,000 BTU/h |
| Per Zone Capacity | 12,000 BTU/h each |
| Total Heating Capacity | 24,800 BTU/h |
| SEER2 Rating | 19 |
| HSPF Rating | 10.5 |
| Voltage | 208-230V / 60Hz |
| Number of Zones | 2 |
| Refrigerant Type | R454B (pre-charged) |
| Indoor Units | 2× concealed units |
| Indoor Unit Dimensions | 36" W × 9" H × 20" D each |
| Linesets Included | 2× 16 ft pre-charged |
| Operating Temperature | -13°F to 122°F |
| Sound Level (per unit) | 26–40 dB |
| External Static Pressure | 0.1-0.4" WG |
| Maximum Duct Length | 15 ft per supply |
| Condensate Pumps | Integrated in each unit |
INDOOR UNIT
| Part Number | zdiy-cd-11I |
| Net Dimensions (WxDxH) | 27-1/2" x 19-1/4" x 7-7/8" |
| Carton Dimensions (WxDxH) | Coming soon |
| Net / Gross Weight | Coming soon |
OUTDOOR UNIT
| Part Number | zdiy-cd-22O |
| Net Dimensions (WxDxH) | 31-7/8" x 12" x 21-5/8" |
| Carton Dimensions (WxDxH) | Coming soon |
| Net / Gross Weight | Coming soon |
Completely Invisible HVAC
Hidden Installation
Installs above ceilings or in closets with only discreet supply and return grilles visible.
Fits Almost Anywhere
Ultra-Slim Profile
At just under 8 inches tall, fits in tight spaces like closet ceilings, soffits, and shallow attics.
Flexible Drainage
Built-In Condensate Pump

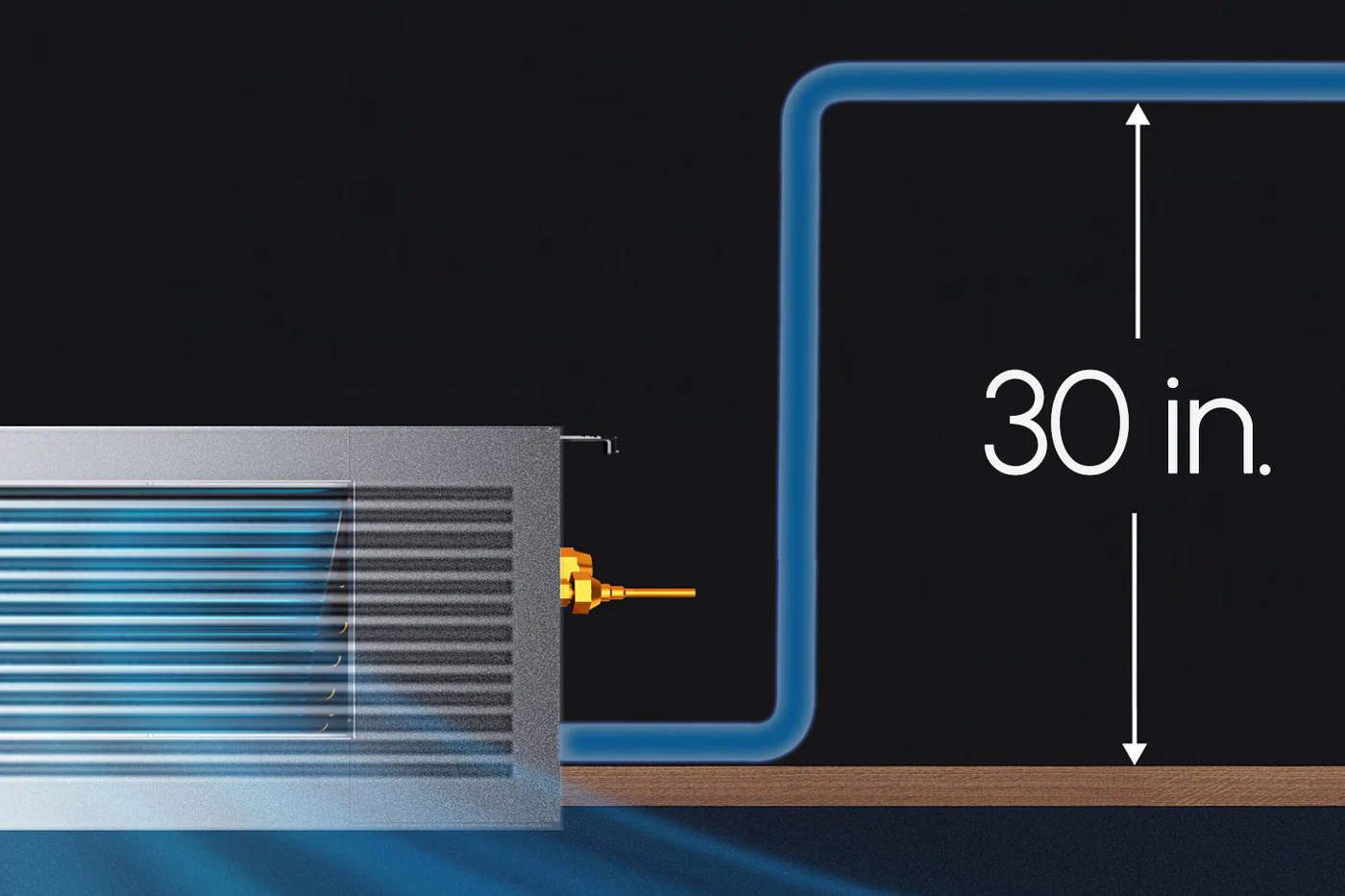

Integrated condensate pump lifts water up to 30 inches for flexible unit placement.
Professional Performance
High Static Pressure

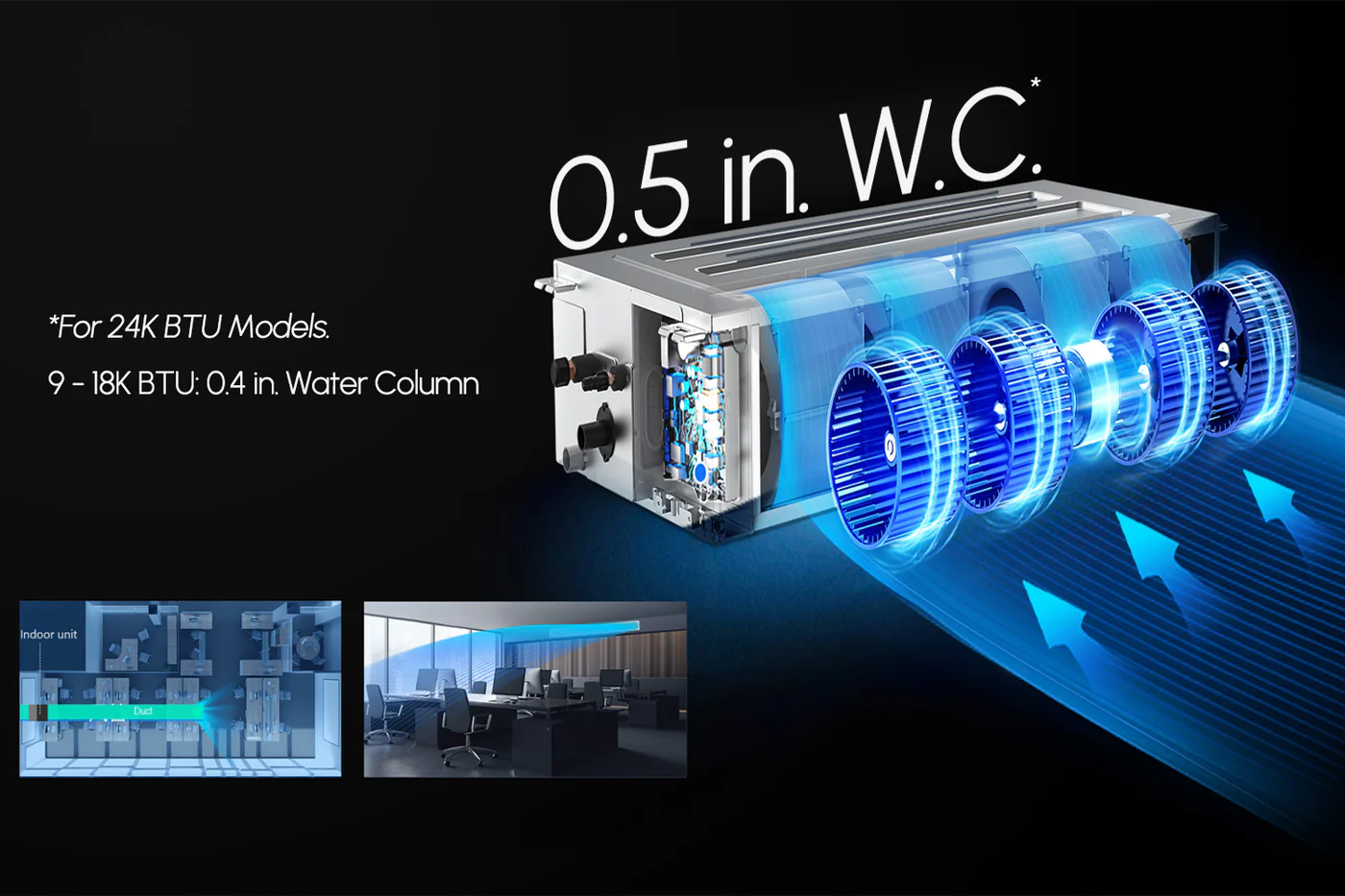

Up to 0.5" WC of static pressure pushes air through longer duct runs to supply multiple rooms from a single unit.
Advanced Features
Smart Climate Control
- ✓Independent zone control
- ✓Ducted multi-room distribution
- ✓24-hour programmable timer
- ✓Turbo mode for rapid cooling/heating
- ✓Auto mode with intelligent temperature control
- ✓ECO mode for energy savings
Premium Components
- ✓High-efficiency rotary compressor
- ✓Premium indoor blower motors
- ✓Variable speed fan control
- ✓R454B eco-friendly refrigerant
- ✓Fire-proof electrical enclosure
- ✓High-efficiency heat exchanger
Convenience & Safety
- ✓Auto-restart after power loss
- ✓Self-diagnostic system
- ✓Refrigerant leakage detection
- ✓Adjustable static pressure
- ✓Wired or wireless control
- ✓Temperature display toggle (°C/°F)
Easy Maintenance
- ✓Front-access filter design
- ✓Washable air filters
- ✓Built-in condensate pumps
- ✓Self-cleaning function
- ✓Large service access panels
- ✓Filter change indicator
Operating Temperature Range
Customer Reviews
I installed one unit in the master suite (bedroom, bathroom, closet) and another in the main living areas (living room, dining room, kitchen). The only stuff you can see are some small linear vents - and that's it. You'd never even guess there's a mini-split system back there. Each zone stays exactly the right temperature on its own.
We needed some new heating and cooling for our 1890s Victorian, but we wanted to keep the place looking historic. These units got installed in the attic with little ducts going to these tiny ceiling vents - and the original plaster and trim are completely untouched. It operates super quietly and handles our crazy New England winters like a breeze.
Our architect was super specific about the HVAC - they needed it to be completely out of sight. This dual zone concealed system does just that - just some clean looking ceiling vents everywhere. We can control the temperature in the private and public areas separately - total luxury. It was worth every penny.
When we were renovating our high-end condo, the one thing we knew was that visible hvac was not allowed. Both units got tucked away in some closet spaces, with short little duct runs. And the result is like magic - invisible climate control with separate zones for sleeping and living areas. Our contractor was super impressed with the build quality.
Both units perform like a dream - super quiet, super efficient & totally invisible. But be warned - you'll need to put some real thought into how to get the ducting done right & where to put the units. I worked with an hvac designer & that really helped. If you want to hide your hvac with zone control - this is the system for you!
