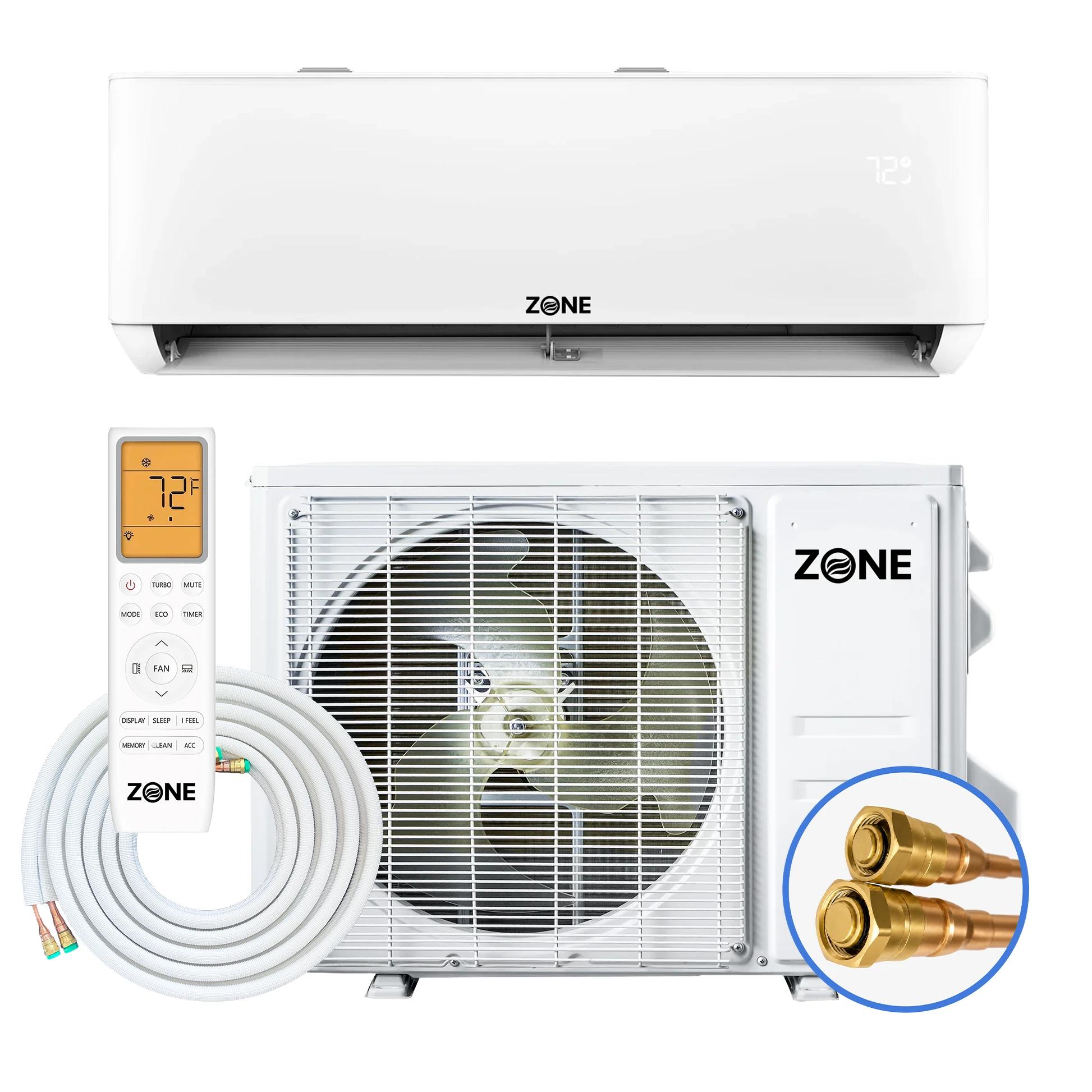

Zone Air® DIY 12,000 BTU 23 SEER2 115V Wall Mount Ductless Mini-Split Heat Pump AC & Heater with Pre-Charged Lineset - Up to 600 Sq Ft
Frequently Purchased Together
At a Glance
Electrical Requirements
45-day free returns • 7-year compressor warranty • Free shipping • Live US support 9–5 MST
Payment & Security
Your payment information is processed securely. We do not store credit card details.
System Overview
Your Purchase Includes
Everything you need for a complete DIY installation
Summary
- Cooling capacity: 12,000 BTU/h with 23.0 SEER2 / 13.0 EER2 efficiency
- Heating capacity: 12,400 BTU/h with 10.0 / 8.6 HSPF2
- Voltage: 110-120V, 60Hz, 1Ph
- Environmentally friendly R454b (pre-charged)
- Low ambient range operation: heating down to -13°F
- Variable-speed DC inverter driven performance
- Pre-charged lineset included for DIY installation
- Energy Star certified
Features
- 110-120V plug-in operation - no special wiring needed
- Pre-charged with eco-friendly R454b refrigerant
- Variable-speed DC inverter for efficient performance
- Works in extreme temps (-13°F to 131°F)
- Wi-Fi enabled with smartphone app control
- Cooling, heating, dry, and fan modes
- Washable, reusable air filters
The outdoor unit is factory pre-charged with R454b (pre-charged) refrigerant, accommodating refrigerant line lengths of up to 25 ft. per circuit. If using a lineset that exceeds this length, additional refrigerant will need to be charged into the system during installation. This model can only be purchased with the 25 ft. lineset option. If needing a different length, please purchase additional linesets here.
DIY Wall Mounted Series
Zone Air® wall-mounted ductless mini split systems deliver powerful heating and cooling with easy DIY installation. Each unit comes with a pre-charged R454b lineset — no vacuum pump, no contractor, no refrigerant handling. Variable-speed DC inverter technology provides quiet, efficient comfort while Wi-Fi connectivity lets you control your system from anywhere.
What's Included in Your Purchase
- ✓ Indoor Unit
- ✓ Outdoor Unit
- ✓ Wireless Remote Control
- ✓ Remote Control Wall Holder
- ✓ Remote Control Batteries
- ✓ 16 Ft. Copper Lines
- ✓ 16 Ft. Electrical Wire
- ✓ 10 Ft. Drain for Indoor/Outdoor
- ✓ Wall Passage Sleeve
- ✓ Putty for Wall Hole
- ✓ Leak Guard Sealer
- ✓ Wrapping Tape
- ✓ Installation Manual
- ✓ User's Manual
Quick-Connect Installation
Product Warranty
Warranty registration is required within 90 days of purchase. Please check our Warranty Policy.
- Up to 5 years warranty on parts
- Up to 7 years warranty on compressor
Manuals & Documents
Technical Information & Performance
SYSTEM KIT
| Power Supply | 110-120V, 60Hz, 1Ph |
| Cooling Rated Capacity | 12,000 BTU/h |
| Cooling Capacity Range | 2,500-12,500 BTU/h |
| Cooling SEER2 | 23.0 |
| Cooling EER2 | 13.0 |
| Heating Rated Capacity | 12,400 BTU/h |
| Heating Capacity Range | 2,500-15,000 BTU/h |
| Heating HSPF2 (Region IV/V) | 10.0 / 8.6 |
| Heating COP2 (47°F/5°F) | 3.81 / 2.1 |
| Refrigerant Type | R454b (pre-charged) |
| Recommended Room Size | 350~600 sq ft |
| Minimum Room Size | 40 sq ft |
| Piping Diameter | 3/8" (Gas) / 1/4" (Liquid) |
| Indoor Air Flow (Turbo/Hi/Med/Lo/Mute) | 500 / 470 / 411 / 323 / 205 CFM |
| Indoor Sound Level (Turbo/Hi/Med/Lo/Mute) | 46 / 44 / 36 / 32 / 30 dB(A) |
| Indoor Unit Dimensions (WxDxH) | 36-1/2" x 7-5/8" x 12" |
| Indoor Unit Weight | 23.1 lbs |
| Breaker Needed | 15A (single-pole) |
| Outdoor Sound Level | 52 dB(A) |
| Outdoor Unit Dimensions (WxDxH) | 31-7/8" x 12" x 21-5/8" |
| Outdoor Unit Weight | 58.4 lbs |
| Lineset Length Included | 16 ft |
INDOOR UNIT
| Part Number | zdiy-mk1-12I |
| Air Flow (Turbo/Hi/Med/Lo/Mute) | 500 / 470 / 411 / 323 / 205 CFM |
| Sound Level (Turbo/Hi/Med/Lo/Mute) | 46 / 44 / 36 / 32 / 30 dB(A) |
| Net Dimensions (WxDxH) | 36-1/2" x 7-5/8" x 12" |
| Carton Dimensions (WxDxH) | 39" x 10-1/2" x 15" |
| Net / Gross Weight | 23.1 / 30.9 lbs |
OUTDOOR UNIT
| Part Number | zdiy-mk1-12O |
| Breaker Needed | 15A (single-pole) |
| Net Dimensions (WxDxH) | 31-7/8" x 12" x 21-5/8" |
| Sound Level | 52 dB(A) |
| Carton Dimensions (WxDxH) | 32-7/8" x 13" x 22-5/8" |
| Net / Gross Weight | 58.4 / 65 lbs |

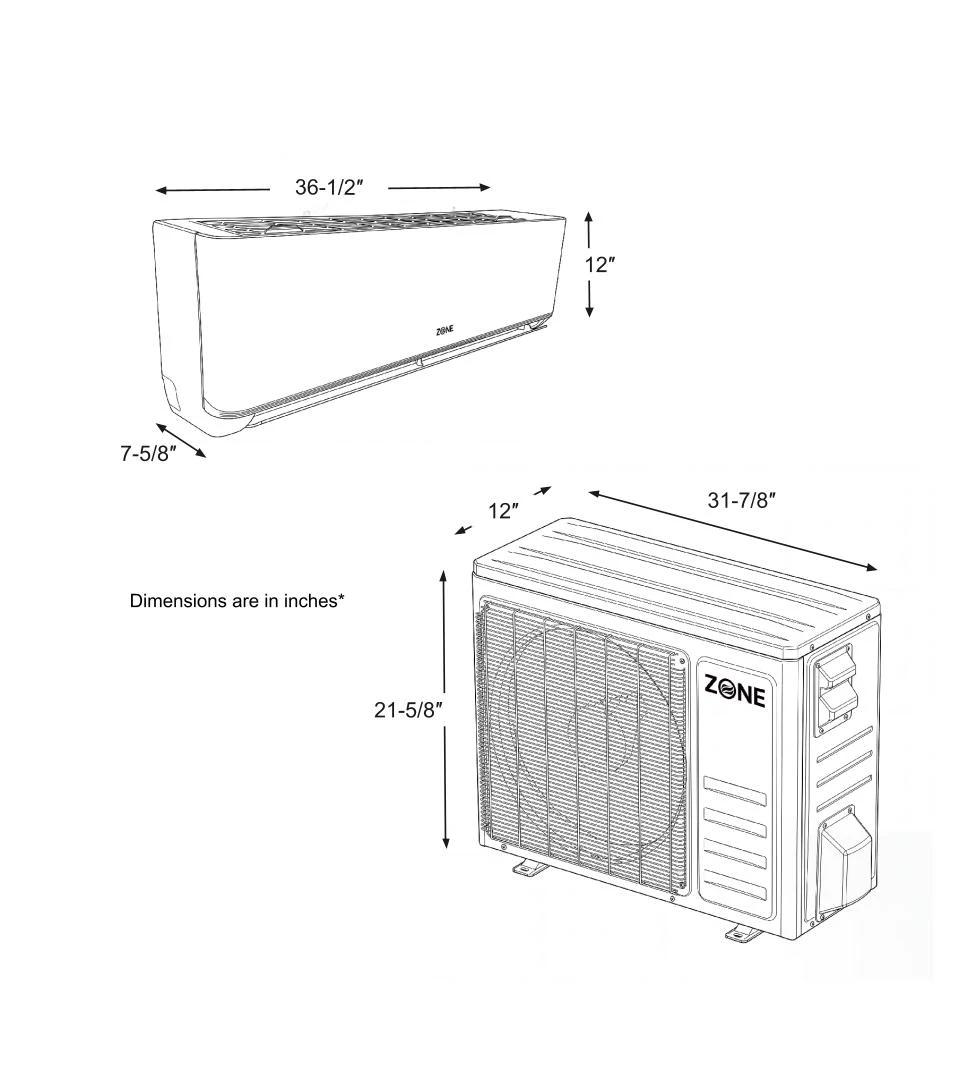

DIMENSION CHART
Control From Anywhere
Wi-Fi Smart Control
Built-in WiFi lets you control your mini split from anywhere. Works with Google Assistant, Alexa, and Siri.
Advanced Features
Smart Controls
- ✓ECO mode for energy savings
- ✓SLEEP mode for overnight comfort
- ✓TURBO mode for rapid heating/cooling
- ✓IFEEL sensor detects local temperature
- ✓MEMORY recalls your favorite settings
- ✓Timer on/off scheduling
Premium Design
- ✓Variable-speed DC inverter compressor
- ✓Dual-axis motorized louvers (up-down and left-right)
- ✓Dual drainage ports for flexible installation
- ✓Self-clean cycle keeps unit fresh
- ✓Quiet operation as low as 30 dB
Easy Installation
- ✓Pre-charged lineset included
- ✓Standard 110-120V outlet compatible
- ✓15A single-pole breaker
- ✓DIY-friendly with no vacuum pump needed
Convenience
- ✓Auto-restart after power loss
- ✓Self-diagnostic system
- ✓Display on/off option
- ✓Temperature display (°C/°F)
Operating Temperature Range
Customer Reviews
I installed this 12K BTU Wall Mount in my 600 sq ft home office and its been amazing. Super quiet on low settings - I didn't even know it was on during a video call. The heating works great even when its below zero outside. Installation was pretty easy with the pre-charged line set. My power bills have gone down noticeably since chucking the old window unit. Plus its just nice to be able to plug it into a standard 115V outlet.
We live in Vermont and were a bit skeptical about heat pumps, but this unit has really blown our expectations out of the water. It kept our bedroom warm even during that -10°F cold snap last winter. The sleep mode is fantastic - it gradually adjusts the temperature overnight and the dehumidification feature is a total lifesaver during humid summers.
As an HVAC contractor I've installed dozens of mini-split brands and this one from Zone Air really holds its own. The build quality is top notch, the premium compressor is reliable and that 23 SEER2 rating means our customers are going to see a big cut in their energy bills. Plus the one-press detachment feature makes servicing a breeze.
This system cools and heats our bedroom perfectly. Took a few days to get used to all the features on the remote, but now we're happy as clams. Its really a top-notch unit, though we do wish the price was a bit lower. The turbo mode cools the room down incredibly fast after a hot day. The only thing that's not quite up to expectations is that the outdoor unit is a bit louder than we bargained for, but still pretty reasonable at 52 dB.
We just got a nice rebate from our utility company thanks to the Energy Star and NEEP certifications. The unit has been kicking around for 4 months now and - even though we're using it daily - our electric bill is actually lower than it was before. The ECO mode is pretty effective and I also love being able to set the 24-hour timer on my phone from the remote.
