Zone Air® DIY 18,000 BTU 23.5 SEER2 230V Wall Mount Ductless Mini-Split Heat Pump AC & Heater with Pre-Charged Lineset - Up to 900 Sq Ft
Frequently Purchased Together
At a Glance
Electrical Requirements
45-day free returns • 7-year compressor warranty • Free shipping • Live US support 9–5 MST
Payment & Security
Your payment information is processed securely. We do not store credit card details.
System Overview
Your Purchase Includes
Everything you need for a complete DIY installation
Summary
- Cooling capacity: 18,000 BTU/h with 23.5 SEER2 / 12.5 EER2 efficiency
- Heating capacity: 18,000 BTU/h with 10.0 / 8.8 HSPF2
- Voltage: 208~230V, 60Hz, 1Ph
- Environmentally friendly R454b (pre-charged)
- Low ambient range operation: heating down to -13°F
- Variable-speed DC inverter driven performance
- Pre-charged lineset included for DIY installation
- Energy Star certified
Features
- 208-230V operation for maximum efficiency
- Pre-charged with eco-friendly R454b refrigerant
- Variable-speed DC inverter for efficient performance
- Works in extreme temps (-13°F to 131°F)
- Wi-Fi enabled with smartphone app control
- Cooling, heating, dry, and fan modes
- Washable, reusable air filters

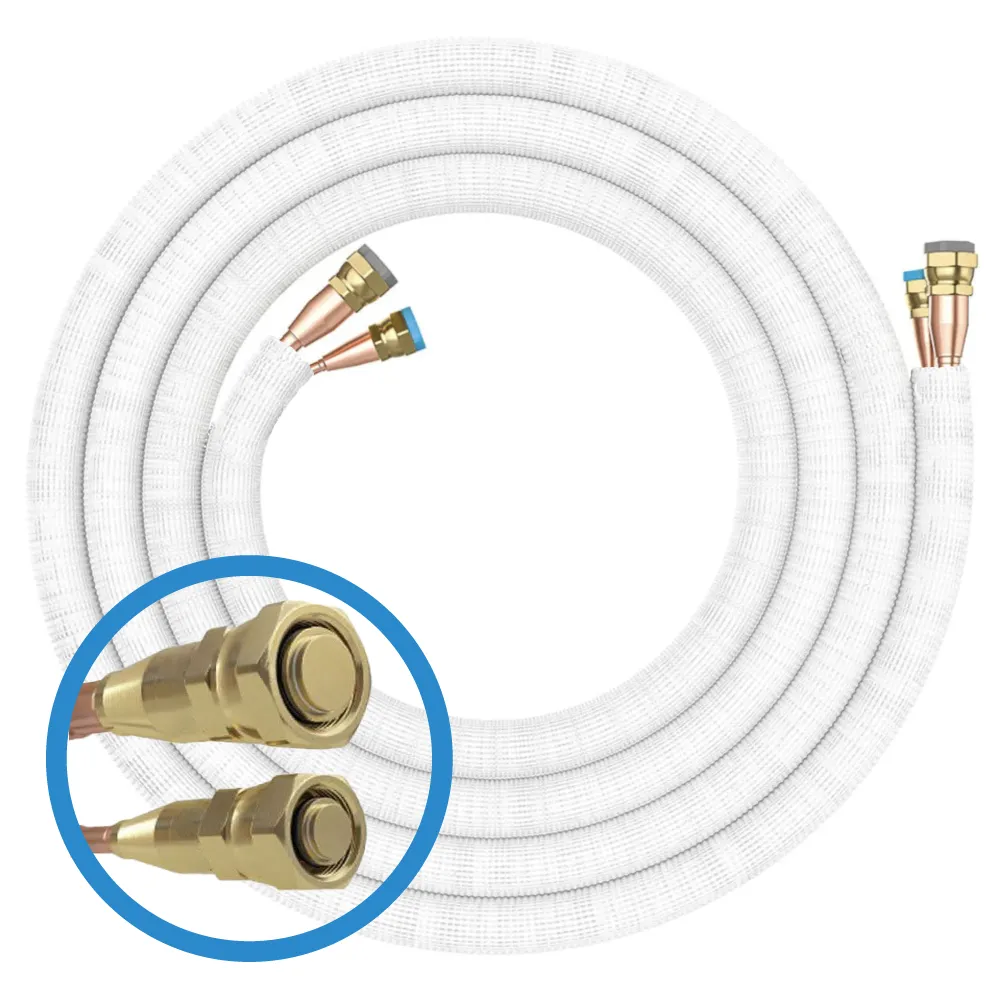

The outdoor unit is factory pre-charged with R454b (pre-charged) refrigerant, accommodating refrigerant line lengths of up to 25 ft. per circuit. If using a lineset that exceeds this length, additional refrigerant will need to be charged into the system during installation. This model can only be purchased with the 25 ft. lineset option. If needing a different length, please purchase additional linesets here.
DIY Wall Mounted Series
Zone Air® wall-mounted ductless mini split systems deliver powerful heating and cooling with easy DIY installation. Each unit comes with a pre-charged R454b lineset — no vacuum pump, no contractor, no refrigerant handling. Variable-speed DC inverter technology provides quiet, efficient comfort while Wi-Fi connectivity lets you control your system from anywhere.

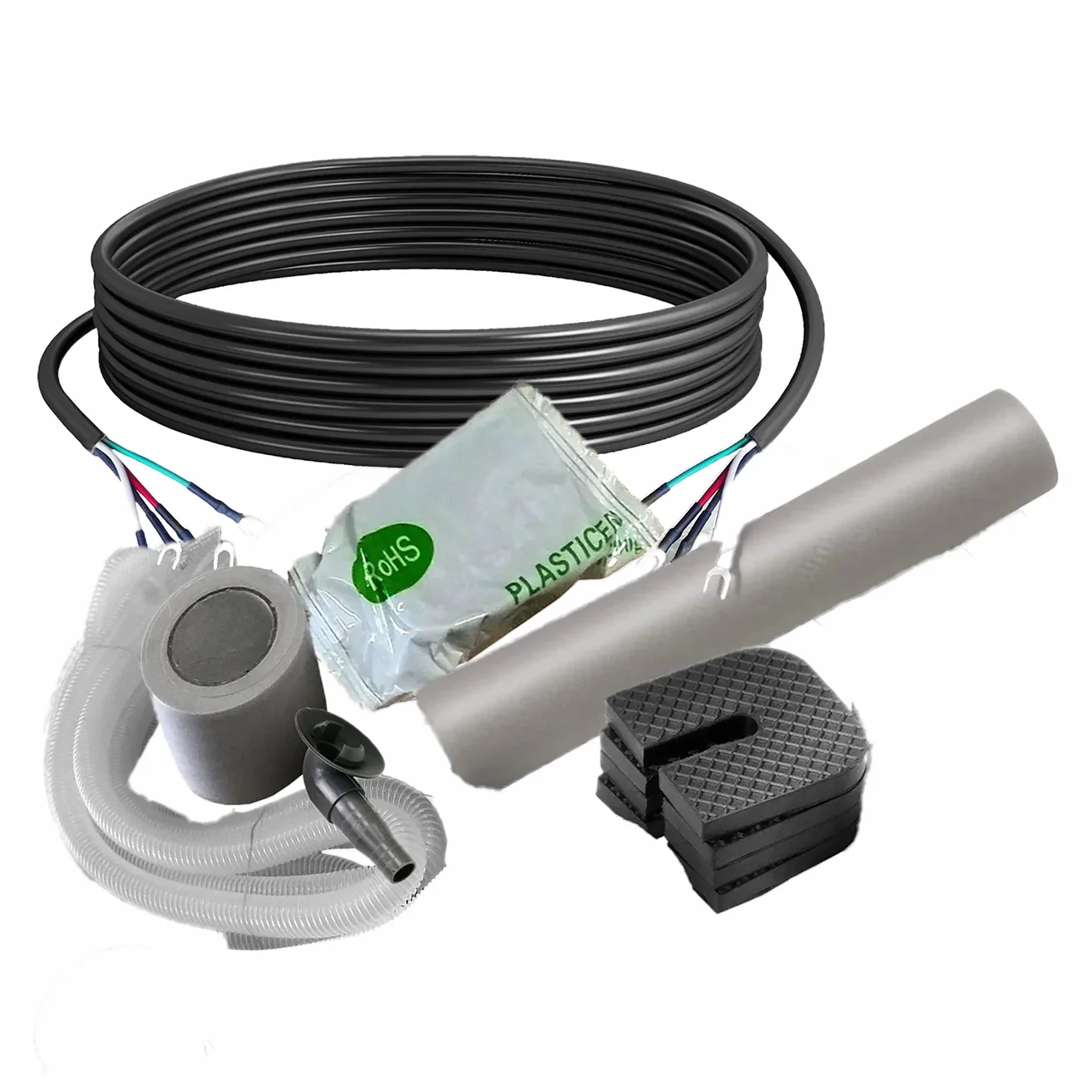

What's Included in Your Purchase

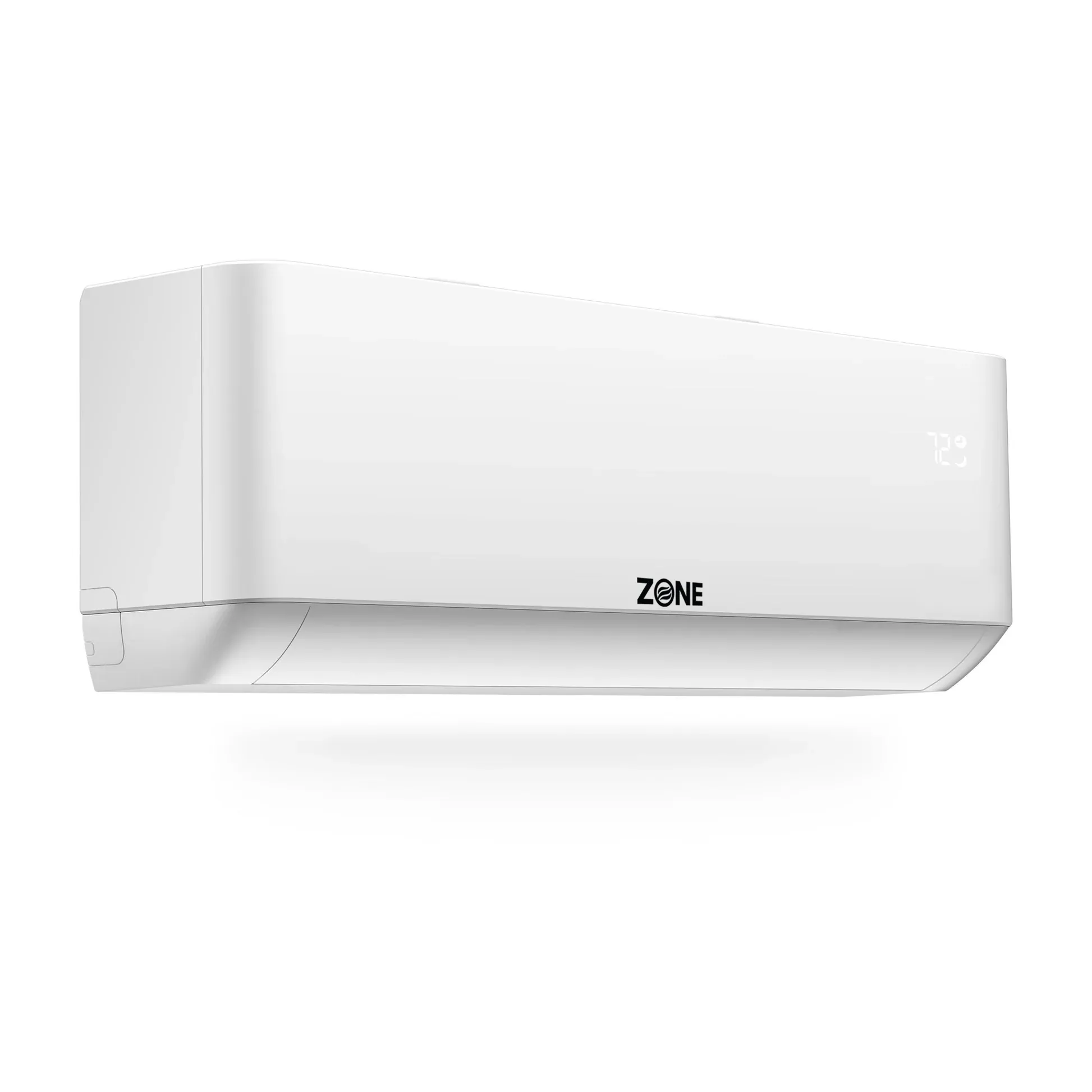

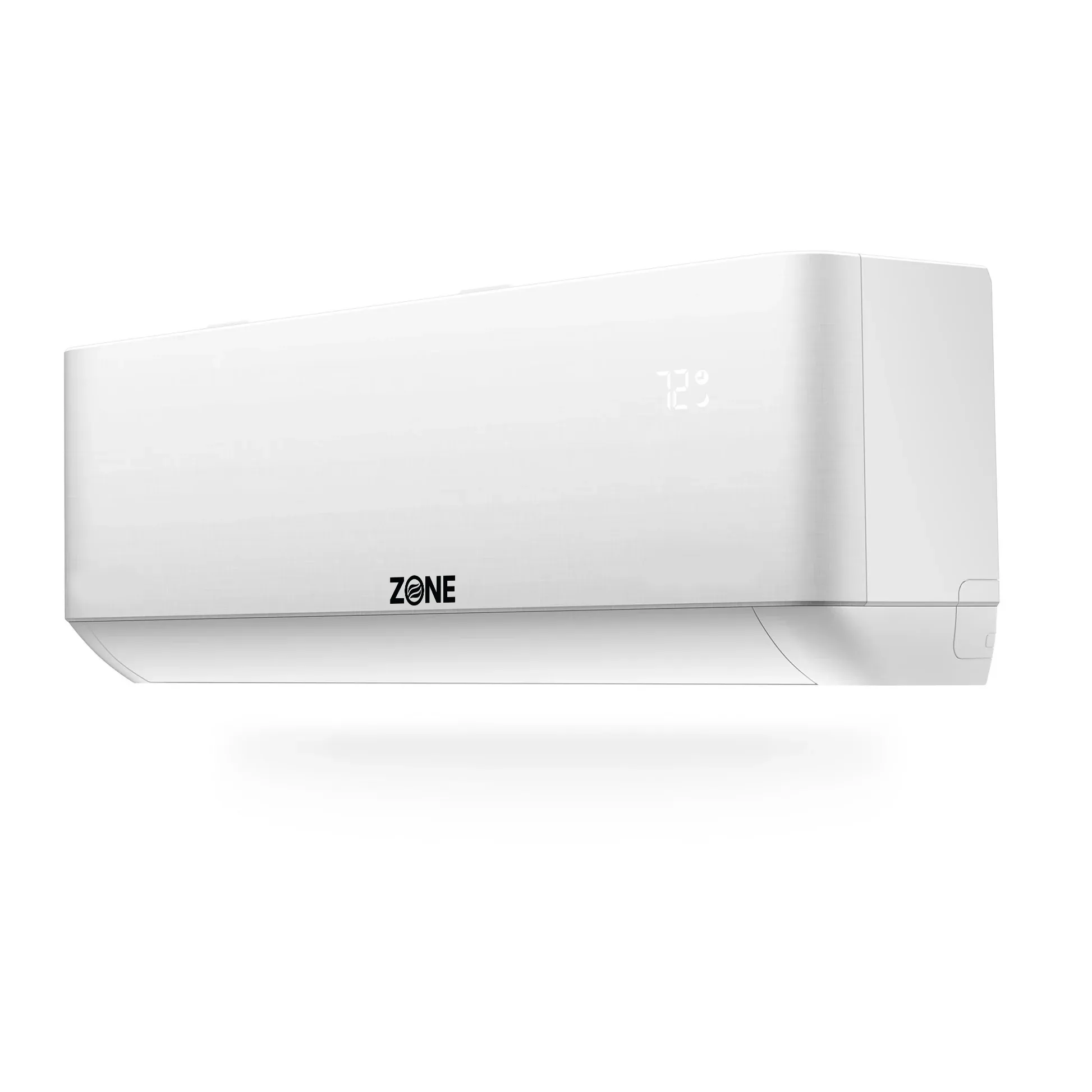

- ✓ Indoor Unit

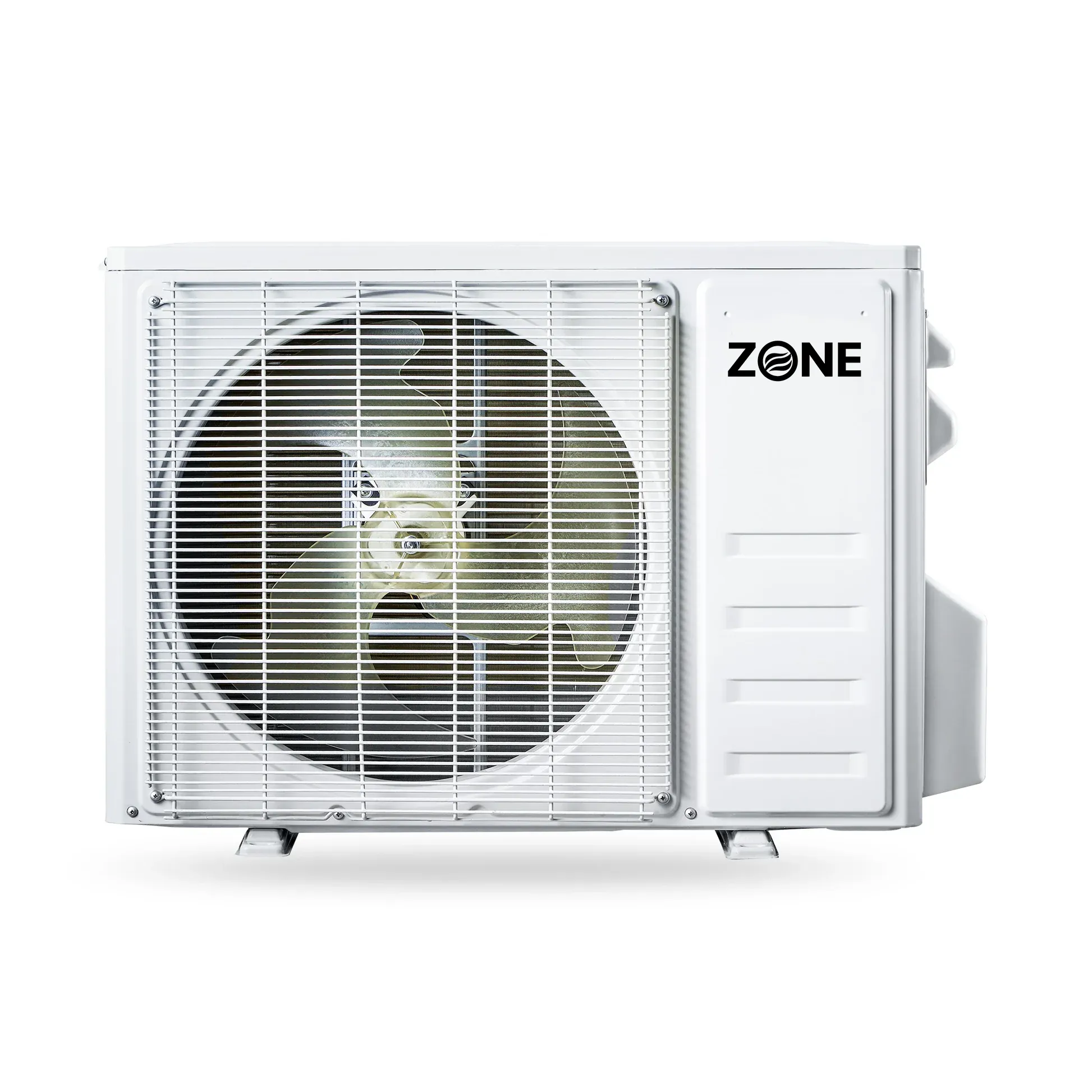

- ✓ Outdoor Unit

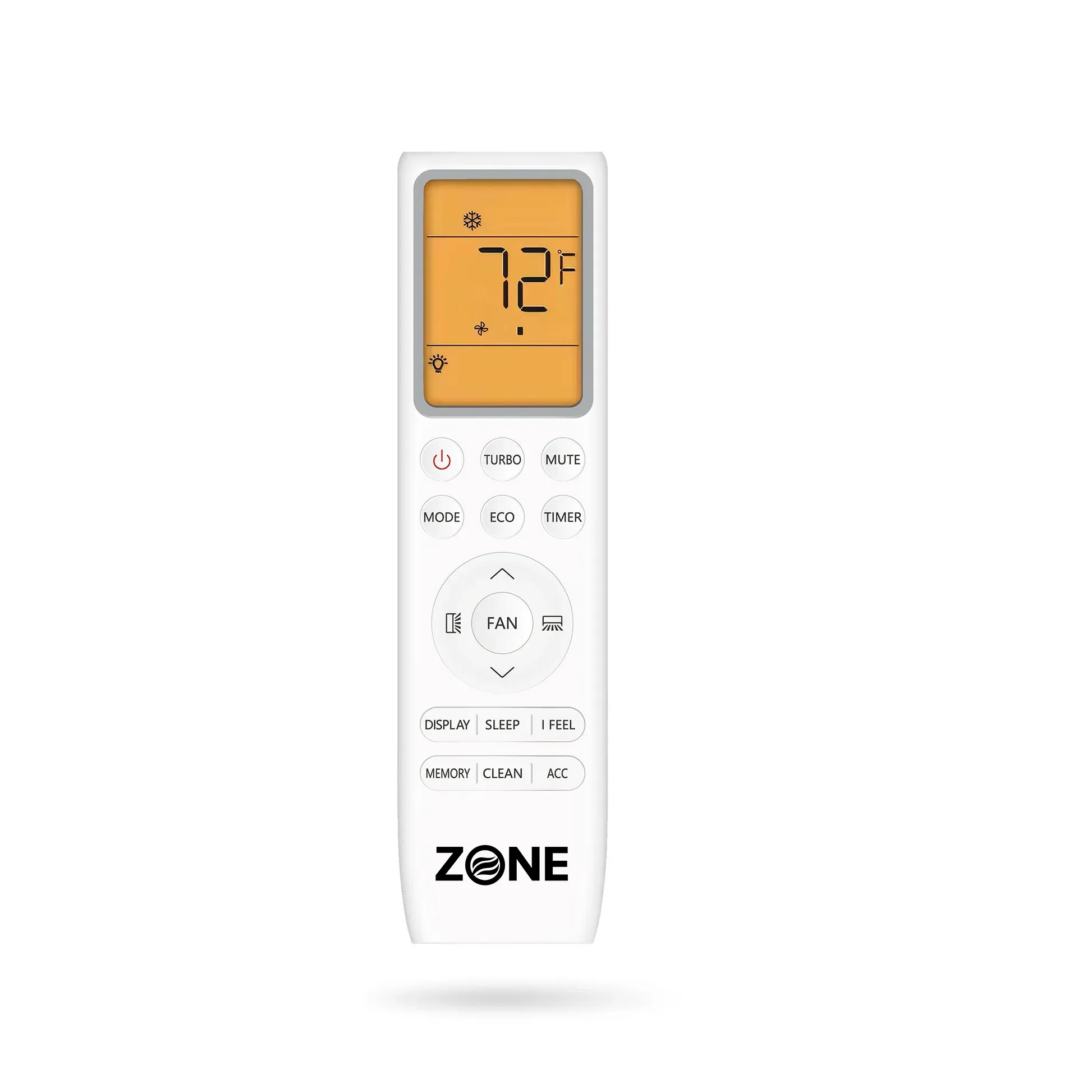

- ✓ Wireless Remote Control
- ✓ Remote Control Wall Holder
- ✓ Remote Control Batteries
- ✓ 16 Ft. Copper Lines
- ✓ 16 Ft. Electrical Wire
- ✓ 10 Ft. Drain for Indoor/Outdoor
- ✓ Wall Passage Sleeve
- ✓ Putty for Wall Hole
- ✓ Leak Guard Sealer
- ✓ Wrapping Tape
- ✓ Installation Manual
- ✓ User's Manual
Quick-Connect Installation
Product Warranty
Warranty registration is required within 90 days of purchase. Please check our Warranty Policy.
- Up to 5 years warranty on parts
- Up to 7 years warranty on compressor
Manuals & Documents
Technical Information & Performance
SYSTEM KIT
| Power Supply | 208~230V, 60Hz, 1Ph |
| Cooling Rated Capacity | 18,000 BTU/h |
| Cooling Capacity Range | 4,100~19,400 BTU/h |
| Cooling SEER2 | 23.5 |
| Cooling EER2 | 12.5 |
| Heating Rated Capacity | 18,000 BTU/h |
| Heating Capacity Range | 4,100~21,400 BTU/h |
| Heating HSPF2 (Region IV/V) | 10.0 / 8.8 |
| Heating COP2 (47°F/5°F) | 3.64 / 1.8 |
| Refrigerant Type | R454b (pre-charged) |
| Recommended Room Size | 500~900 sq ft |
| Minimum Room Size | 52 sq ft |
| Piping Diameter | 1/2" (Gas) / 1/4" (Liquid) |
| Indoor Air Flow (Turbo/Hi/Med/Lo/Mute) | 735 / 676 / 529 / 423 / 394 CFM |
| Indoor Sound Level (Turbo/Hi/Med/Lo/Mute) | 48 / 45 / 40 / 37 / 34 dB(A) |
| Indoor Unit Dimensions (WxDxH) | 43-1/8" x 8-3/4" x 13" |
| Indoor Unit Weight | 30.9 lbs |
| Breaker Needed | 30A (double-pole) |
| Outdoor Sound Level | 58 dB(A) |
| Outdoor Unit Dimensions (WxDxH) | 36-1/2" x 15" x 27-1/2" |
| Outdoor Unit Weight | 93.7 lbs |
| Lineset Length Included | 16 ft |
INDOOR UNIT
| Part Number | zdiy-mk1-18I |
| Air Flow (Turbo/Hi/Med/Lo/Mute) | 735 / 676 / 529 / 423 / 394 CFM |
| Sound Level (Turbo/Hi/Med/Lo/Mute) | 48 / 45 / 40 / 37 / 34 dB(A) |
| Net Dimensions (WxDxH) | 43-1/8" x 8-3/4" x 13" |
| Carton Dimensions (WxDxH) | 45-7/8" x 11-5/8" x 16" |
| Net / Gross Weight | 30.9 / 35.3 lbs |
OUTDOOR UNIT
| Part Number | zdiy-mk1-36O |
| Breaker Needed | 30A (double-pole) |
| Net Dimensions (WxDxH) | 36-1/2" x 15" x 27-1/2" |
| Sound Level | 58 dB(A) |
| Carton Dimensions (WxDxH) | 37-3/8" x 16-1/2" x 28-7/8" |
| Net / Gross Weight | 93.7 / 102.5 lbs |

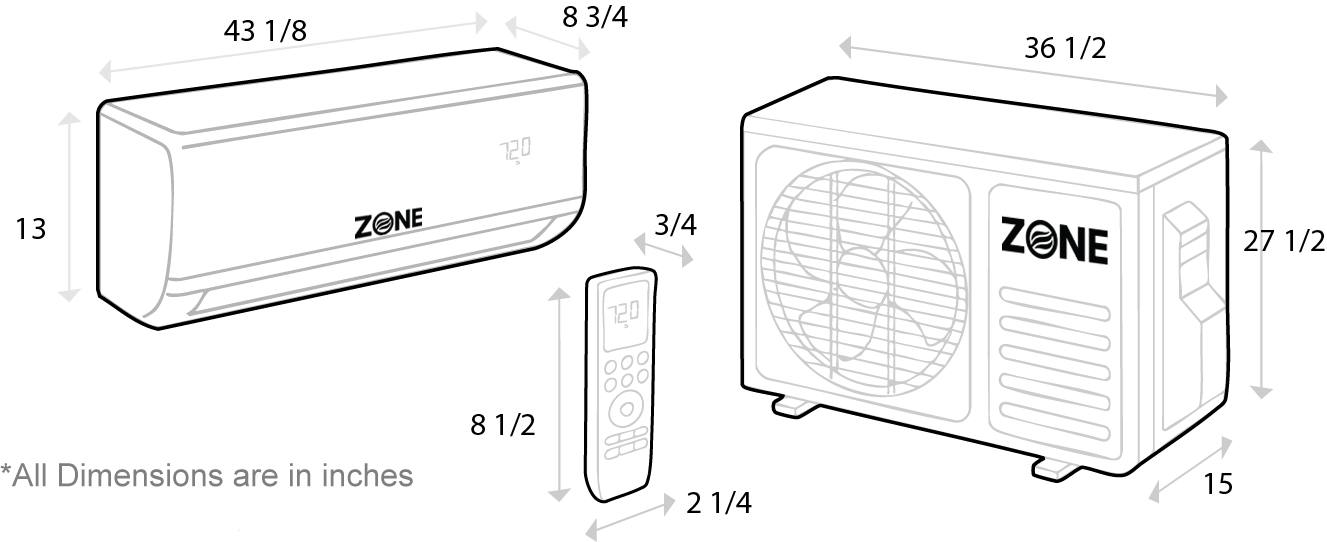

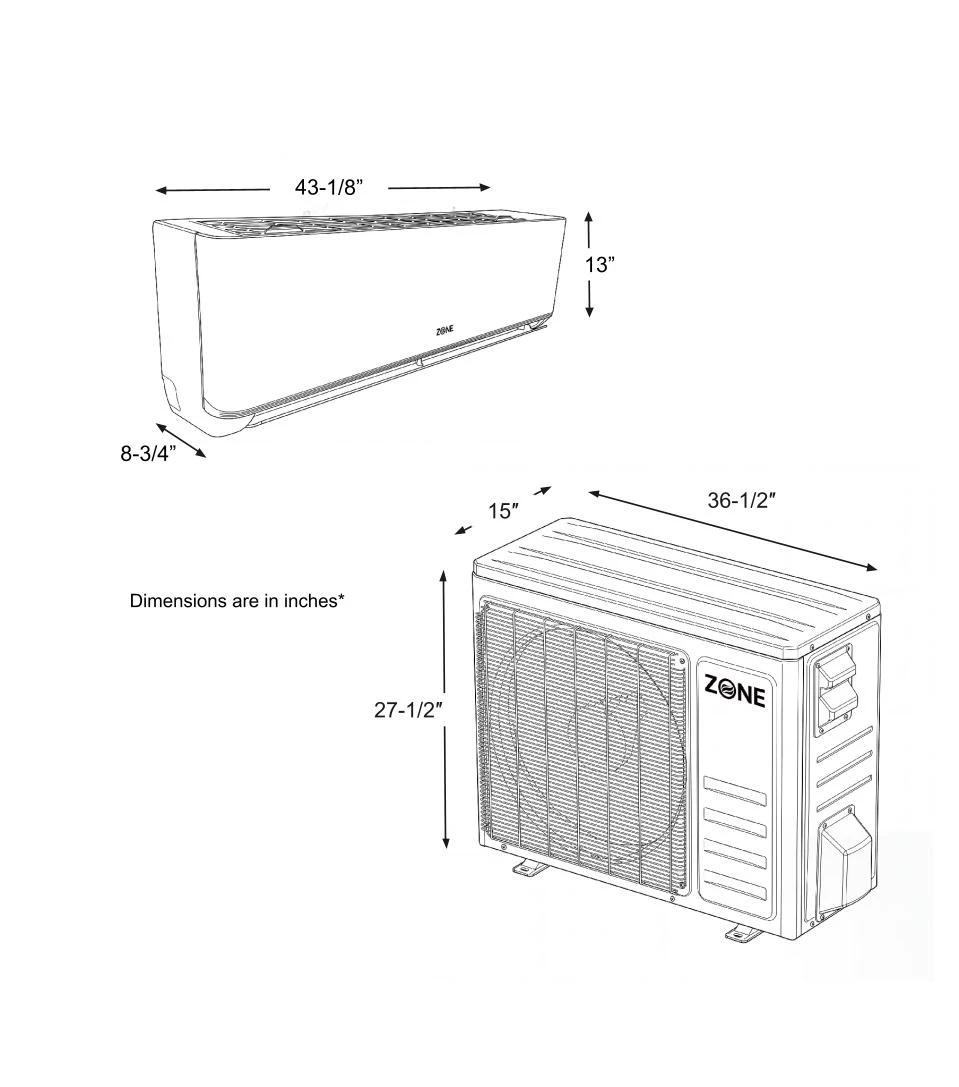

DIMENSION CHART
Control From Anywhere
Wi-Fi Smart Control
Built-in WiFi lets you control your mini split from anywhere. Works with Google Assistant, Alexa, and Siri.
Advanced Features
Smart Controls
- ✓ECO mode for energy savings
- ✓SLEEP mode for overnight comfort
- ✓TURBO mode for rapid heating/cooling
- ✓IFEEL sensor detects local temperature
- ✓MEMORY recalls your favorite settings
- ✓Timer on/off scheduling
Premium Design
- ✓Variable-speed DC inverter compressor
- ✓Dual-axis motorized louvers (up-down and left-right)
- ✓Dual drainage ports for flexible installation
- ✓Self-clean cycle keeps unit fresh
- ✓Quiet operation as low as 30 dB
Easy Installation
- ✓Pre-charged lineset included
- ✓208-230V compatible
- ✓DIY-friendly with no vacuum pump needed
Convenience
- ✓Auto-restart after power loss
- ✓Self-diagnostic system
- ✓Display on/off option
- ✓Temperature display (°C/°F)
Operating Temperature Range
