Zone Air® Thin-Air 9,500 BTU 19.6 SEER2 230V Concealed Mini-Split Heat Pump AC - Up to 475 Sq Ft
Frequently Purchased Together
At a Glance
Electrical Requirements
Payment & Security
Your payment information is processed securely. We do not store credit card details.

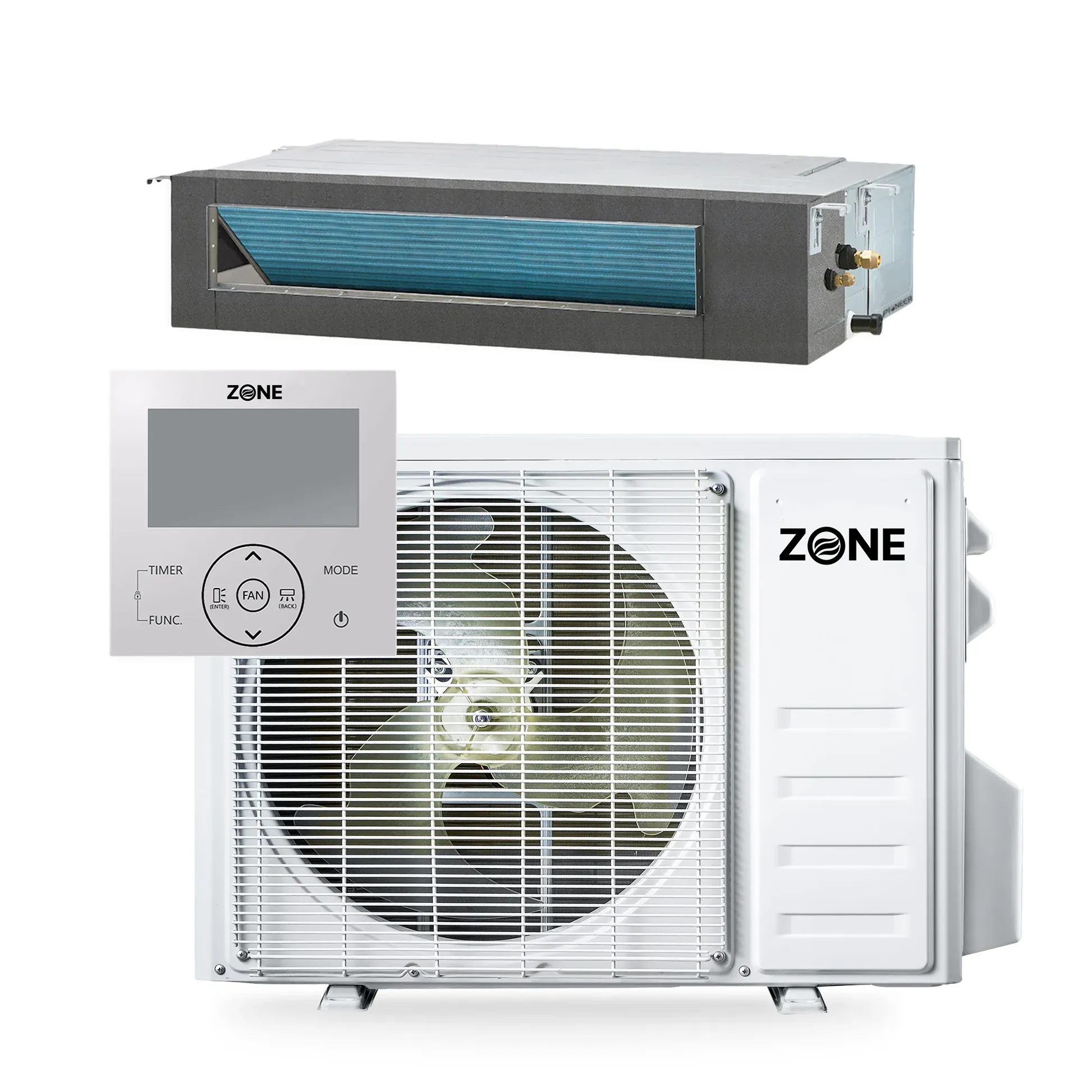

System Overview
Your Purchase Includes
Everything you need for a complete installation
Summary
- Cooling capacity: 9,500 BTU/h with 19.6 SEER2 / 12.0 EER2 efficiency
- Heating capacity: 9,500 BTU/h with 10.0 / 8.8 HSPF2
- Voltage: 208~230V, 60Hz, 1Ph
- Environmentally friendly R454b (pre-charged)
- Low ambient range operation: heating down to -13°F
- Variable-speed DC inverter driven performance
- Pre-charged lineset included for DIY installation
- Energy Star certified
Features
- Completely hidden installation
- Only supply/return grilles visible
- Fresh air intake or connect to existing ductwork
- Ultra-quiet 39 dB operation
- Compact design fits in tight spaces
- WiFi-enabled smart controls
- 16 ft pre-charged lineset included (optional 9 ft extension available)
The outdoor unit is factory pre-charged with R454b (pre-charged) refrigerant, accommodating refrigerant line lengths of up to 25 ft. per circuit. If using a lineset that exceeds this length, additional refrigerant will need to be charged into the system during installation. This model can only be purchased with the 25 ft. lineset option. If needing a different length, please purchase additional linesets here.
Thin-Air Concealed Series
Zone Air® concealed ducted systems hide completely above ceilings or in closets with only supply and return grilles visible. Ultra-slim design with built-in condensate pump and high static pressure for flexible duct routing.

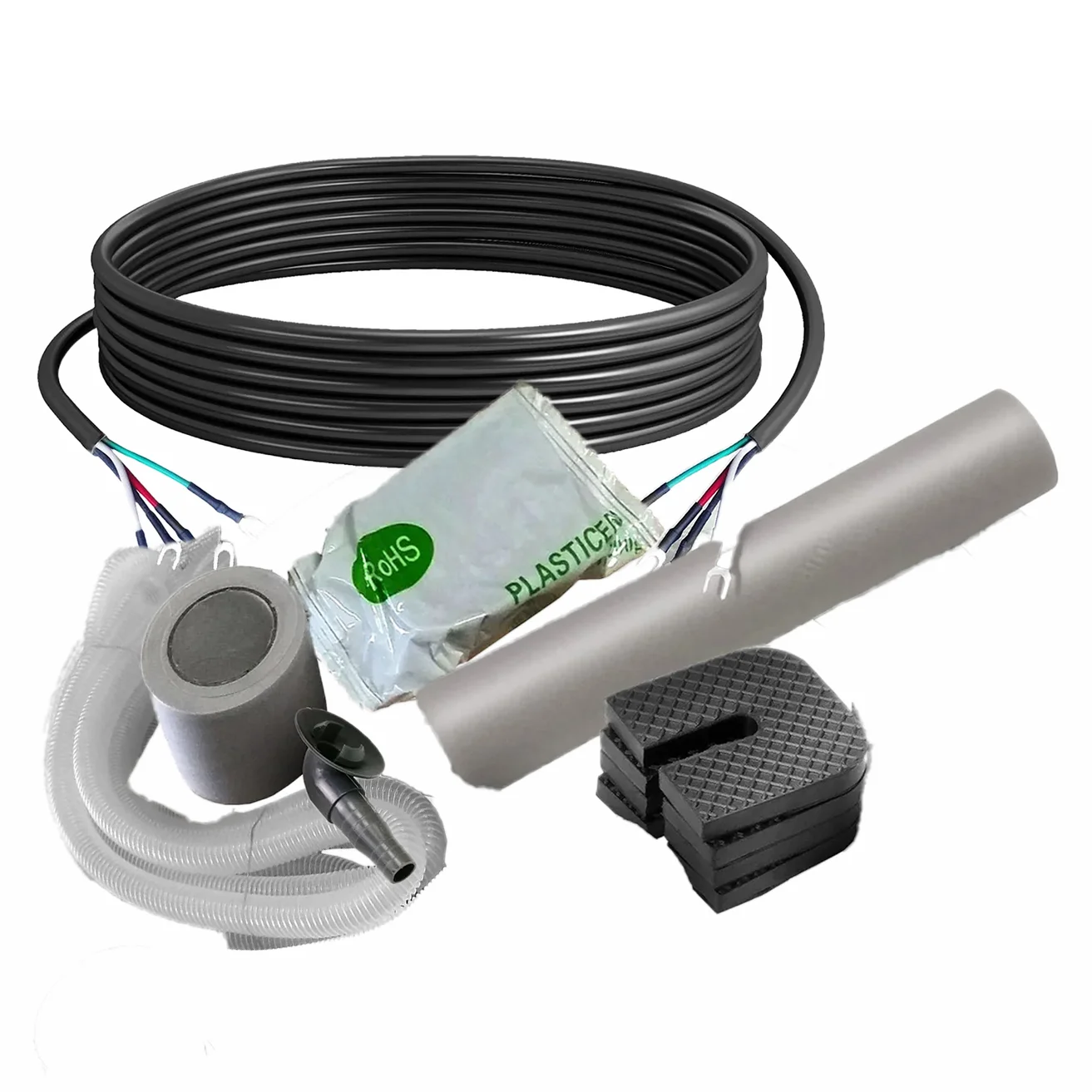

What's Included in Your Purchase
- ✓ Indoor Unit

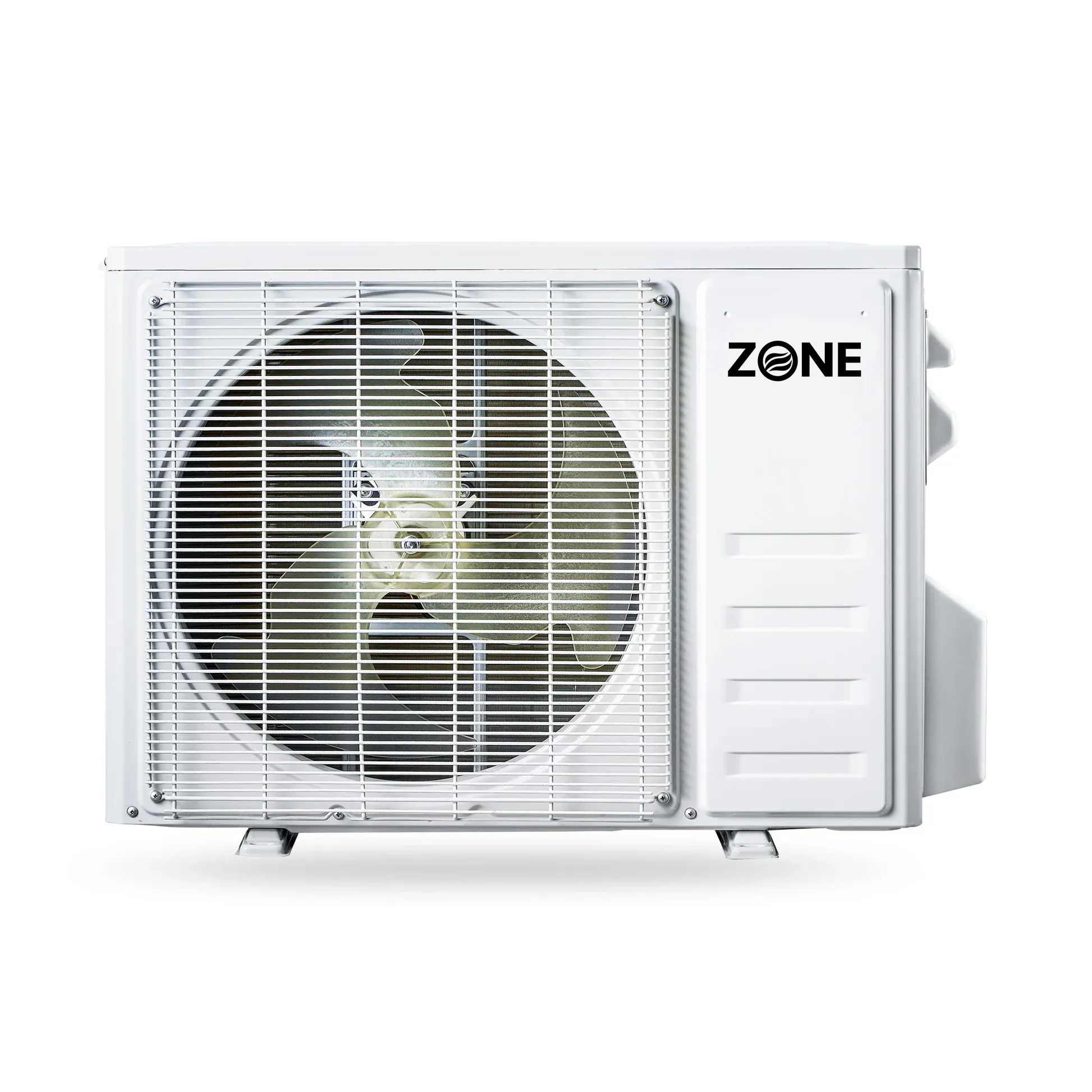

- ✓ Outdoor Unit

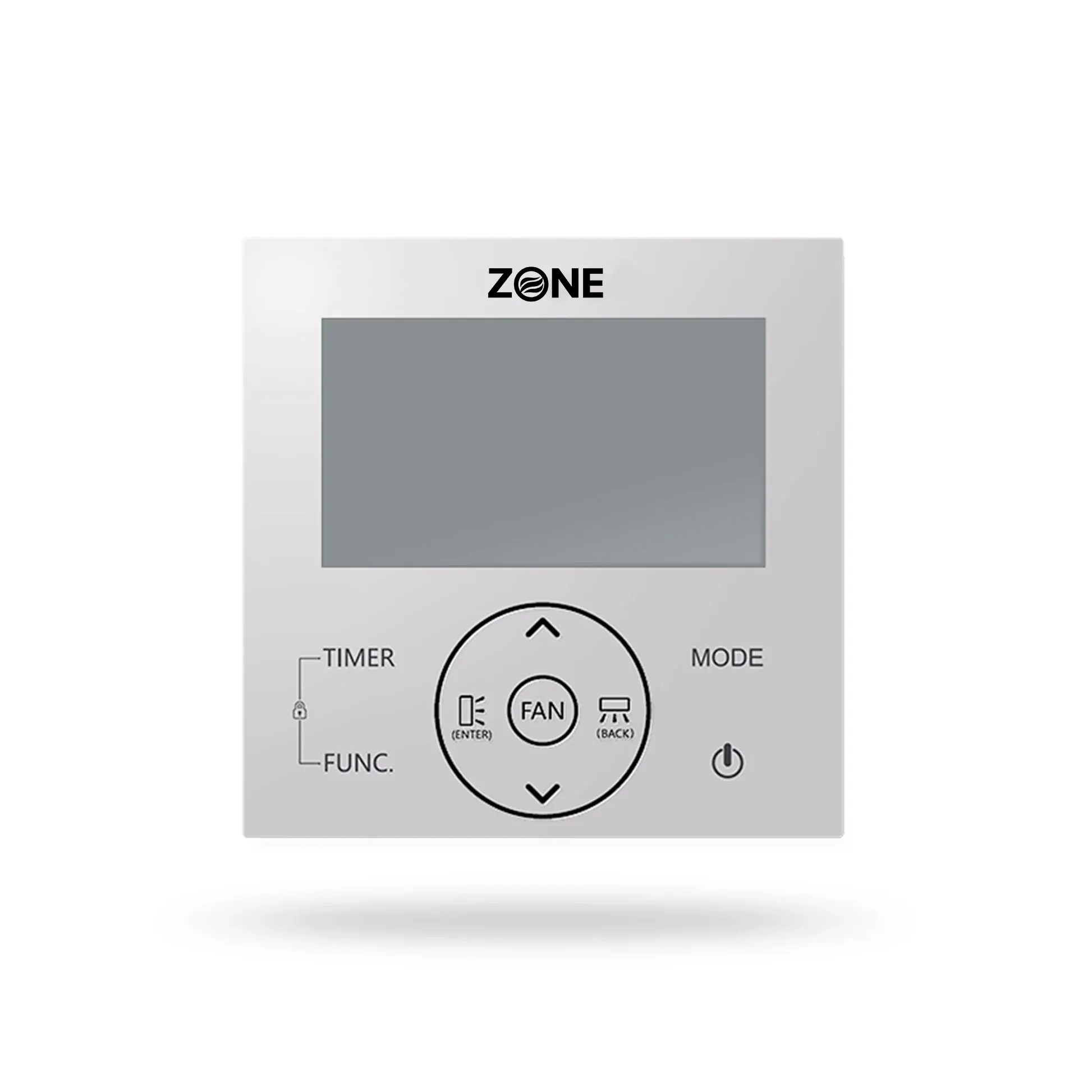

- ✓ Wired Wall Controller
- ✓ 16 Ft. Copper Lines
- ✓ 16 Ft. Electrical Wire
- ✓ 10 Ft. Drain for Indoor/Outdoor
- ✓ Wall Passage Sleeve
- ✓ Putty for Wall Hole
- ✓ Leak Guard Sealer
- ✓ Wrapping Tape
- ✓ Installation Manual
- ✓ User's Manual
Product Warranty
Warranty registration is required within 90 days of purchase. Please check our Warranty Policy.
- Up to 5 years warranty on parts
- Up to 7 years warranty on compressor
Manuals & Documents
Technical Information & Performance
SYSTEM KIT
| Power Supply | 208~230V, 60Hz, 1Ph |
| Cooling Rated Capacity | 9,500 BTU/h |
| Cooling Capacity Range | 2,000~10,400 BTU/h |
| Cooling SEER2 | 19.6 |
| Cooling EER2 | 12.0 |
| Heating Rated Capacity | 9,500 BTU/h |
| Heating Capacity Range | 2,500~12,300 BTU/h |
| Heating HSPF2 (Region IV/V) | 10.0 / 8.8 |
| Heating COP2 (47°F/5°F) | 3.5 / 1.85 |
| Refrigerant Type | R454b (pre-charged) |
| Recommended Room Size | 300~475 sq ft |
| Indoor Air Flow (Turbo/Hi/Med/Lo/Mute) | 360 / 330 / 270 / 210 / 180 CFM |
| Indoor Sound Level (Turbo/Hi/Med/Lo) | 43 / 41 / 39 dB(A) |
| Indoor Unit Dimensions (WxDxH) | 27-1/2" x 19-1/4" x 7-7/8" |
| Indoor Unit Weight | 33.1 lbs |
| Indoor Carton Dimensions (WxDxH) | 35-1/2" x 21-7/8" x 9-7/8" |
| Indoor Net / Gross Weight | 33.1 / 40.8 lbs |
| Breaker Needed | 15A (double-pole) |
| Outdoor Sound Level | 52 dB(A) |
| Outdoor Unit Dimensions (WxDxH) | 31-7/8" x 12" x 21-5/8" |
| Outdoor Unit Weight | 58.4 lbs |
| Outdoor Carton Dimensions (WxDxH) | 32-7/8" x 13" x 22-5/8" |
| Outdoor Net / Gross Weight | 58.4 / 65.0 lbs |
| Lineset Length Included | 16 ft included (optional 9 ft extension available) |
INDOOR UNIT
| Part Number | zdiy-cd-9I |
| Air Flow (Turbo/Hi/Med/Lo/Mute) | 360 / 330 / 270 / 210 / 180 CFM |
| Net Dimensions (WxDxH) | 27-1/2" x 19-1/4" x 7-7/8" |
| Carton Dimensions (WxDxH) | 35-1/2" x 21-7/8" x 9-7/8" |
| Net / Gross Weight | 33.1 / 40.8 lbs |
OUTDOOR UNIT
| Part Number | zdiy-cd-9O |
| Breaker Needed | 15A (double-pole) |
| Net Dimensions (WxDxH) | 31-7/8" x 12" x 21-5/8" |
| Sound Level | 52 dB(A) |
| Carton Dimensions (WxDxH) | 32-7/8" x 13" x 22-5/8" |
| Net / Gross Weight | 58.4 / 65.0 lbs |
DIMENSION CHART
Completely Invisible HVAC
Hidden Installation
Installs above ceilings or in closets with only discreet supply and return grilles visible.
Fits Almost Anywhere
Ultra-Slim Profile
At just under 8 inches tall, fits in tight spaces like closet ceilings, soffits, and shallow attics.
Flexible Drainage
Built-In Condensate Pump
Integrated condensate pump lifts water up to 30 inches for flexible unit placement.
Professional Performance
High Static Pressure
Up to 0.5" WC of static pressure pushes air through longer duct runs to supply multiple rooms from a single unit.
Advanced Features
Smart Climate Control
- ✓Ducted air distribution
- ✓24-hour programmable timer
- ✓Turbo mode for rapid cooling/heating
- ✓Auto mode with intelligent temperature control
- ✓ECO mode for energy savings
- ✓Smart sleep mode
Premium Components
- ✓High-efficiency rotary compressor
- ✓Premium indoor blower motor
- ✓Variable speed fan control
- ✓R454B eco-friendly refrigerant
- ✓Fire-proof electrical enclosure
- ✓High-efficiency heat exchanger
Convenience & Safety
- ✓Auto-restart after power loss
- ✓Self-diagnostic system
- ✓Refrigerant leakage detection
- ✓External static pressure adjustment
- ✓Wired controller option
- ✓Temperature display toggle (°C/°F)
Easy Maintenance
- ✓Front-access filter design
- ✓Washable air filters
- ✓Built-in condensate pump
- ✓Self-cleaning function
- ✓Service access panel
- ✓Filter change indicator
Operating Temperature Range
Customer Reviews
We were renovating an old brownstone and we really needed something that wouldn't mess with the original look of the place. This concealed unit is perfect - we installed it in a cramped closet with just two tiny grilles in the ceiling. It's totally invisible. And it's nice and quiet to boot.
We installed over our master bedroom ceiling and ran supply/return to the bedroom and bathroom. It's super quiet - we can't even hear it running even at night. And it looks super clean too without any wall units around.
Our architect specified these concealed units for our whole home renovation and it looks great. The only visible parts are tiny linear grilles that match our modern design. Worth every penny for the clean look.
The unit itself is super quiet and efficient and is totally hidden from view. Just be sure to think through the duct work, you're going to need to have space above the ceiling for the unit (about 12") and to run the short supply ducts. We worked with an HVAC contractor on the design which was a huge help.
Frequently Asked Questions
Do I need an HVAC technician to install this?
What electrical work is needed?

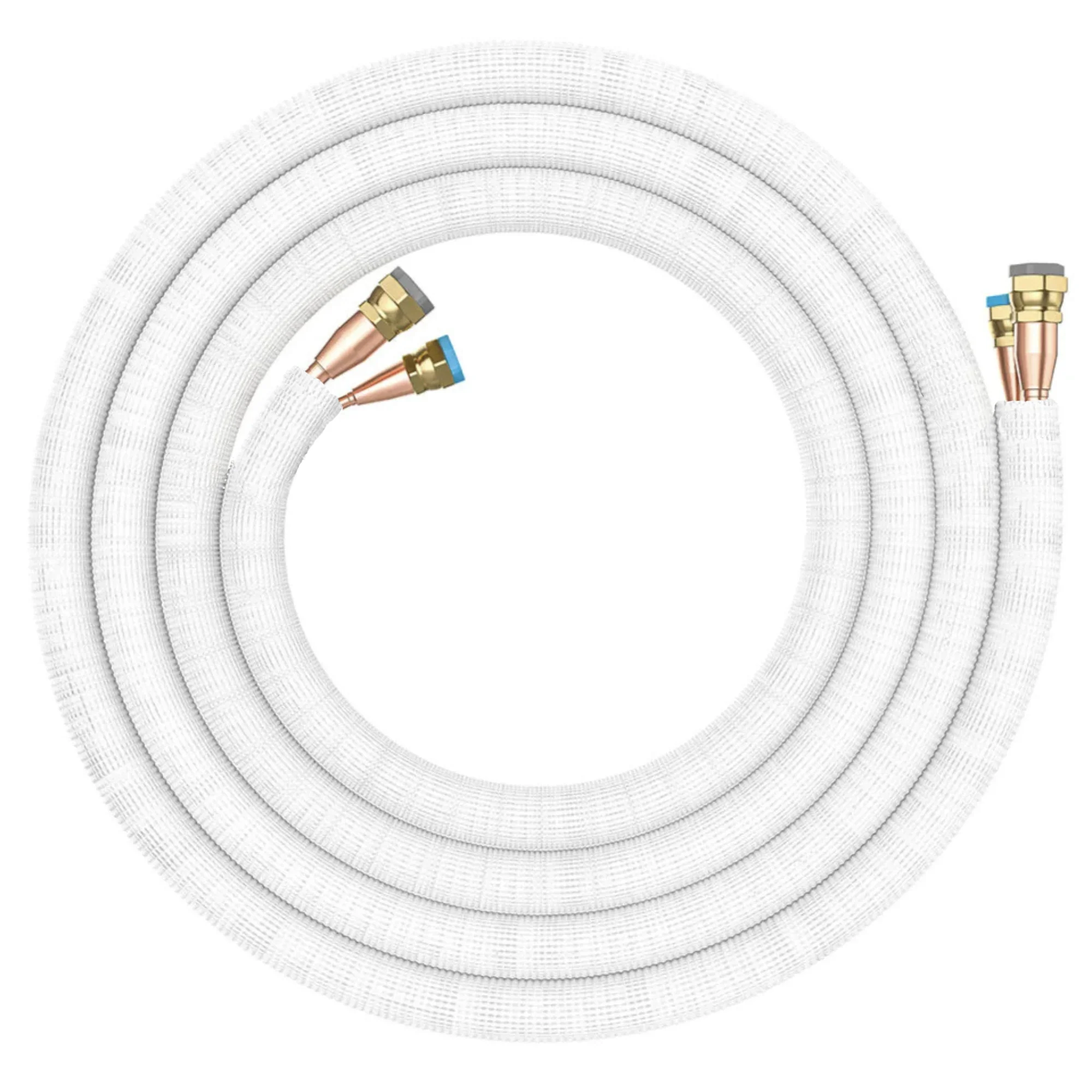

What if 16 ft of lineset isn't enough?
Does this unit heat and cool?
What warranty is included?

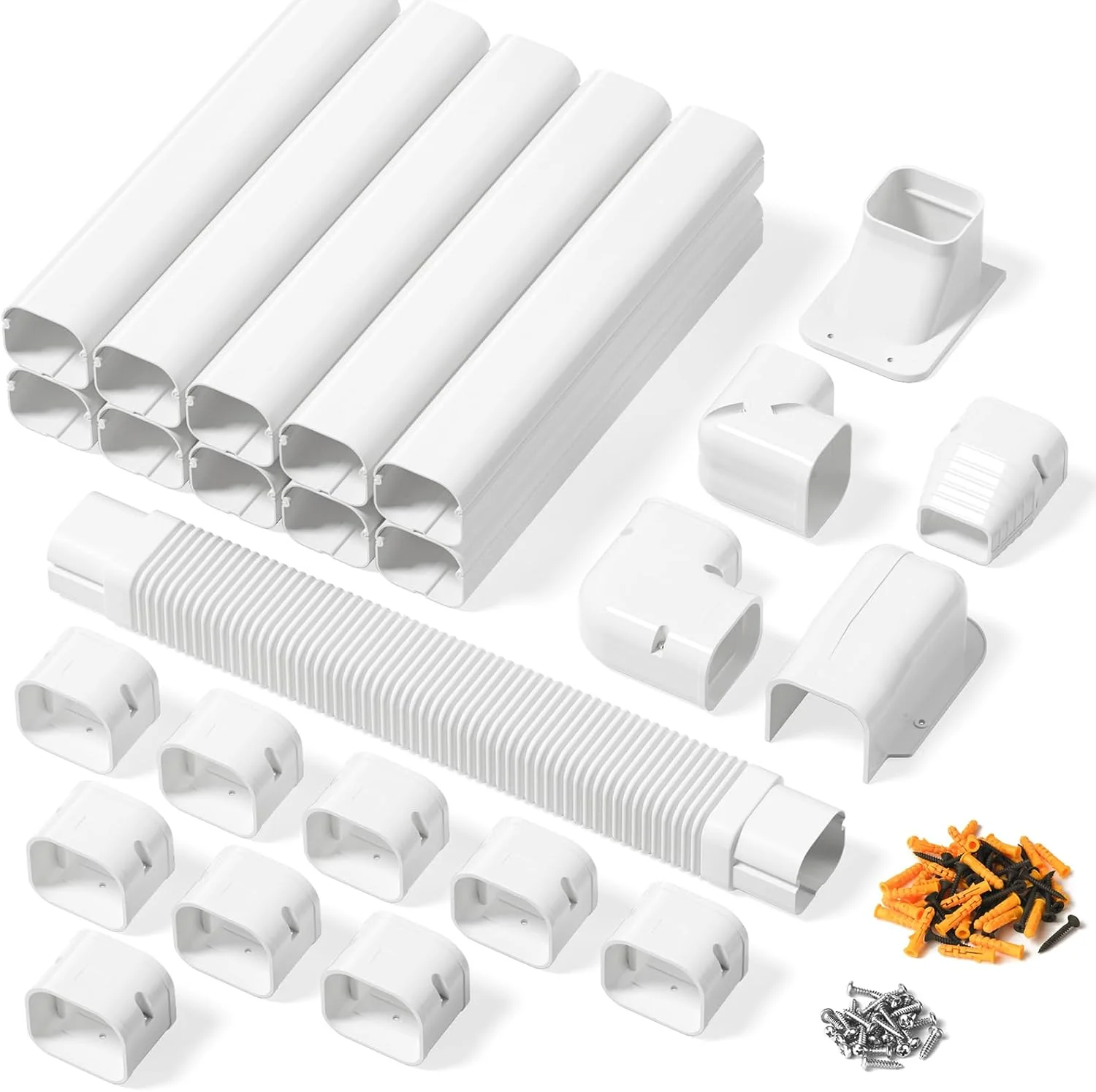

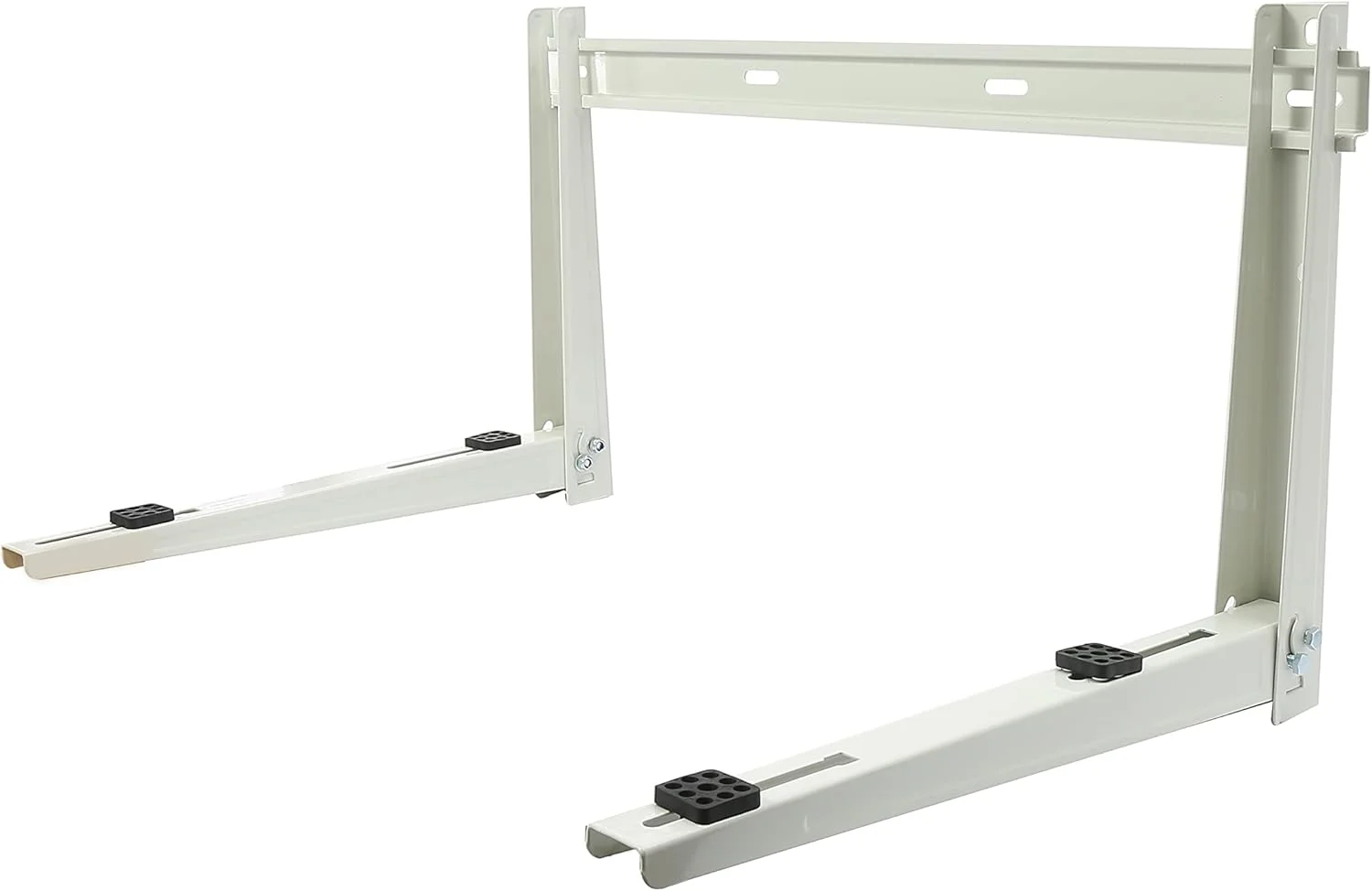

Complete Your Installation
Accessories and extensions for your system
