3 Zone DIY Mini Split Systems

What a 3 Zone DIY Mini Split Actually Is

A 3 zone DIY mini split is a single outdoor condenser connected to three indoor units — three heads — each running off its own thermostat. The "3" in "3-zone" is the number of indoor heads, not the number of outdoor units. One compressor sits outside, three refrigerant linesets run to three rooms, and each room is controlled completely independently. Keep two bedrooms cool overnight while the living room idles, then flip the living room on in the morning — all off one shared condenser.

This is the step up from dual zone. A single-zone system is one head on one matched condenser. A multi-zone system runs 3–5 heads on one shared condenser — and 3-zone is where multi-zone starts. It's the right call for a small home, an upstairs floor, or an addition where three rooms each need their own comfort setting off a single outdoor unit.

Indoor Capacity vs Outdoor Capacity: What the BTU Number Means

Worth being blunt about, because it's the most misread spec on any multi-zone listing.

The BTU number in a 3 zone system's name is the total indoor capacity — the three heads added together. A "3 ZONE 33,000 BTU (9K+12K+12K)" system is a 9,000 BTU head plus two 12,000 BTU heads. That figure describes what goes on your walls or ceilings, not the size of the unit outside.

The outdoor unit is the same on every Zone Air 3 zone and 2 zone system: a 27,000 BTU multi-zone condenser. The 27,000 BTU pairing (9K+9K+9K) and the 36,000 BTU pairing (12K+12K+12K) share the exact same outdoor unit. Only the indoor heads change.

So yes — most 3 zone systems list a connected indoor capacity above the condenser's 27,000 BTU rating. That's by design, not an error. Multi-zone equipment is built around a connection ratio: this condenser accepts up to 36,000 BTU of connected indoor capacity, because three rooms essentially never call for full output simultaneously. The inverter compressor shifts capacity to whichever zones are actually demanding it and throttles back on the rest. Sizing each head to its own room and letting the compressor modulate is how the system is designed to run — and it's why a 3-zone can cover more square footage than its condenser rating alone would suggest.

What this means in practice:

• Compare configurations by their heads, not the headline total. 9K+9K+18K and 12K+12K+12K both total 36,000 BTU but suit very different floor plans — the first for one large room plus two bedrooms, the second for three similar rooms.
• Outdoor footprint, pad, and electrical are identical across the 3 zone lineup. Same 27K condenser, same dedicated 230V/30A circuit, same yard space, whichever heads you choose.
• A bigger "total" doesn't buy a bigger compressor. It's the same 27K unit either way. Oversizing a head just makes that head short-cycle and pull humidity less effectively in its own room.

Every product page lists both numbers separately: Connected Indoor Capacity (the three heads) and Outdoor Unit Rated Cooling Capacity (the 27K condenser).

When a 3 Zone DIY Mini Split Is the Right Call

Three zones is correct when:

• You have three rooms with different schedules or comfort needs. Two bedrooms plus a living room. A master suite, a nursery, and a home office. Three rooms across one floor that never all need conditioning at once.
• The three rooms are reasonably close to one shared outdoor unit. Three linesets running under ~50 ft to one condenser keeps efficiency high and the install clean — one outdoor footprint instead of two or three.
• You want one outdoor unit instead of a dual-zone plus a single-zone. One condenser, one yard penetration zone, one electrical circuit — less clutter than mixing systems.
• You're conditioning most of a small home or one full floor. Three heads at 12K each cover roughly 1,800 sq ft of independent zones.

3 Zone vs Dual Zone vs Multi Zone

The honest comparison:

• 3 zone beats a dual zone plus a single zone when the third room is close to the same outdoor location: one shared compressor and one outdoor footprint cost less than two separate systems, and you avoid a second wall penetration and (often) a second circuit.
• Dual zone beats 3 zone when you only genuinely need to control two rooms. A third head still counts toward the system's minimum modulation, so a 3-zone running only two heads is often less efficient than a purpose-built 2-zone bundle. Don't buy a zone you won't use.
• 3 zone is the entry point to 4–5 zone multi-zone. If you're planning a whole house — four or five rooms — step up to a larger multi-zone condenser. If three rooms is the real number, a purpose-built 3-zone bundle keeps part-load efficiency higher than an over-sized 5-zone running three heads.

Sizing a 3 Zone Mini Split for Three Rooms

Size each room independently, then pick the bundle whose three heads match. Start at roughly 20 BTU per square foot per room:

• A 14×16 bedroom (~225 sq ft) wants a 9,000 BTU head.
• A 350–550 sq ft living room or master suite wants a 12,000 BTU head.

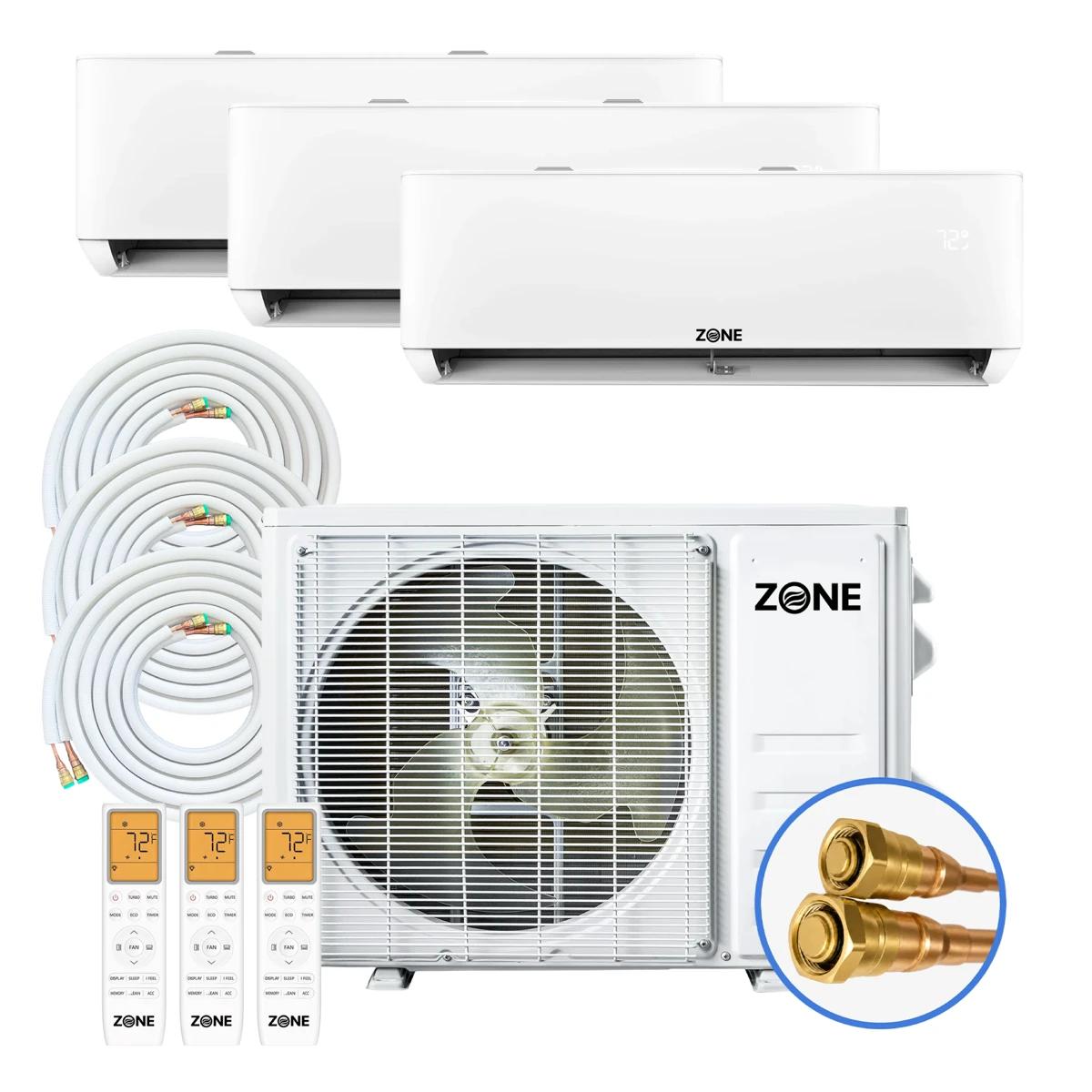

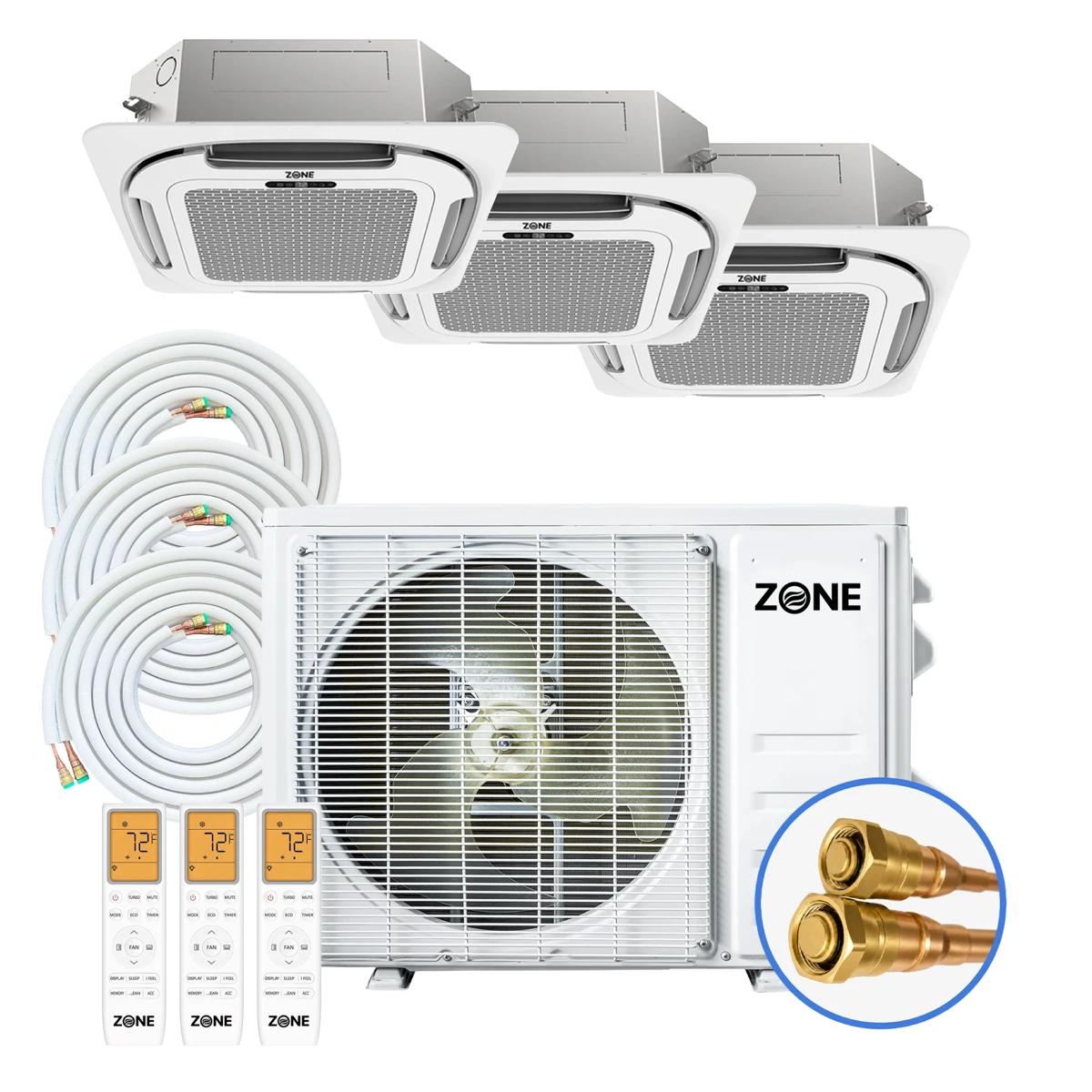

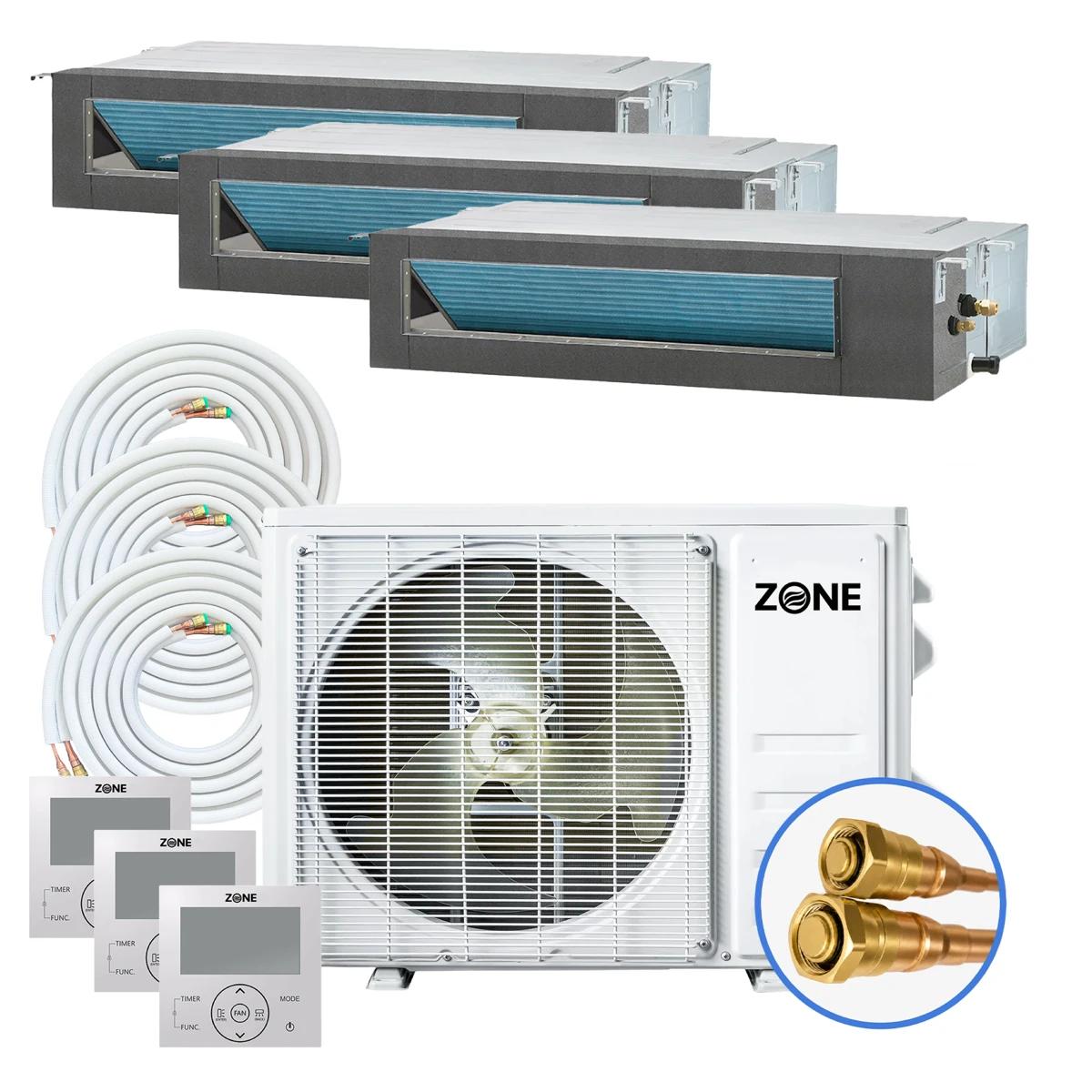

Zone Air's 3-zone bundles pair three equally-sized heads — three 12K heads on the wall-mount and ceiling-cassette systems (about 1,800 sq ft total) and three 11K heads on the concealed-duct system. Derate for sun-facing walls (–15%), vaulted ceilings (proportional to height over 8 ft), and kitchen heat (–25%). Don't oversize a head "for headroom" — an over-sized head short-cycles, removes less humidity, and burns more electricity than the correctly-sized one. Full math: mini split sizing guide.

3 Zone DIY Mini Split Installation Reality

A 3 zone DIY install is three single-zone installs sharing one outdoor unit: three indoor heads to mount, three refrigerant linesets to route, three condensate drains, and one outdoor condenser. The wall-mount and ceiling-cassette 3-zone bundles ship with three pre-charged R454B linesets, so there's no vacuum pump and no EPA refrigerant license required for those heads — the same DIY-friendly setup as our single-zone systems, tripled on the indoor side.

The one extra consideration over dual zone is more of everything indoors — three mounts, three linesets, three drains — plus electrical: the outdoor unit wants a dedicated 230V circuit rather than a 115V plug-in. If your panel doesn't have spare capacity, budget $300–$600 for an electrician to add the circuit. Mechanical install of a 3-zone runs roughly 12–20 hours for a first-timer. If a head sits more than 16 ft from the condenser, upgrade to a 25 ft pre-charged lineset. Step-by-step: DIY mini split installation guide.

What's Included with Every Zone Air 3 Zone DIY System

Every 3 zone system ships with three indoor units, one 27,000 BTU outdoor condenser shared by all three heads, three wireless remotes, all mounting brackets and hardware, and a 5-year parts / 7-year compressor warranty. The wall-mount and ceiling-cassette bundles include three pre-charged R454B linesets for the DIY path. Free shipping, 30-day returns, and live tech support 9–5 MST. Optional add-ons like decorative lineset cover kits and heavy-duty mounting brackets are available but not required for the system to run.

Ready to Compare Configurations?

Browse the 3 zone DIY systems above to see in-stock three-room configurations across wall mount, ceiling cassette, and concealed-duct heads, or mix and match head styles on one condenser. If you only need to condition two rooms, a dual-zone bundle costs less and keeps part-load efficiency higher. If you're planning four or five rooms, the multi-zone guide covers larger whole-house configurations and custom quotes.
