Mini Split with a Pre-Charged Line-Set: DIY, No-Vacuum Install by Zone Air
A mini split with a pre-charged line-set is the part that makes a homeowner install possible: the refrigerant is sealed inside the line behind a valve, and brass quick-connect fittings thread onto the indoor and outdoor units by hand. There’s no vacuum pump, no manifold gauges, and no EPA 608 license — you torque the couplings to spec, open the valves, and the charge releases into the system. It pairs with every pre-charged Zone Air system.
Ready to skip the refrigerant work?
Not sure what size you need?
Size My System →
What’s Different About a Pre-Charged Line-Set?

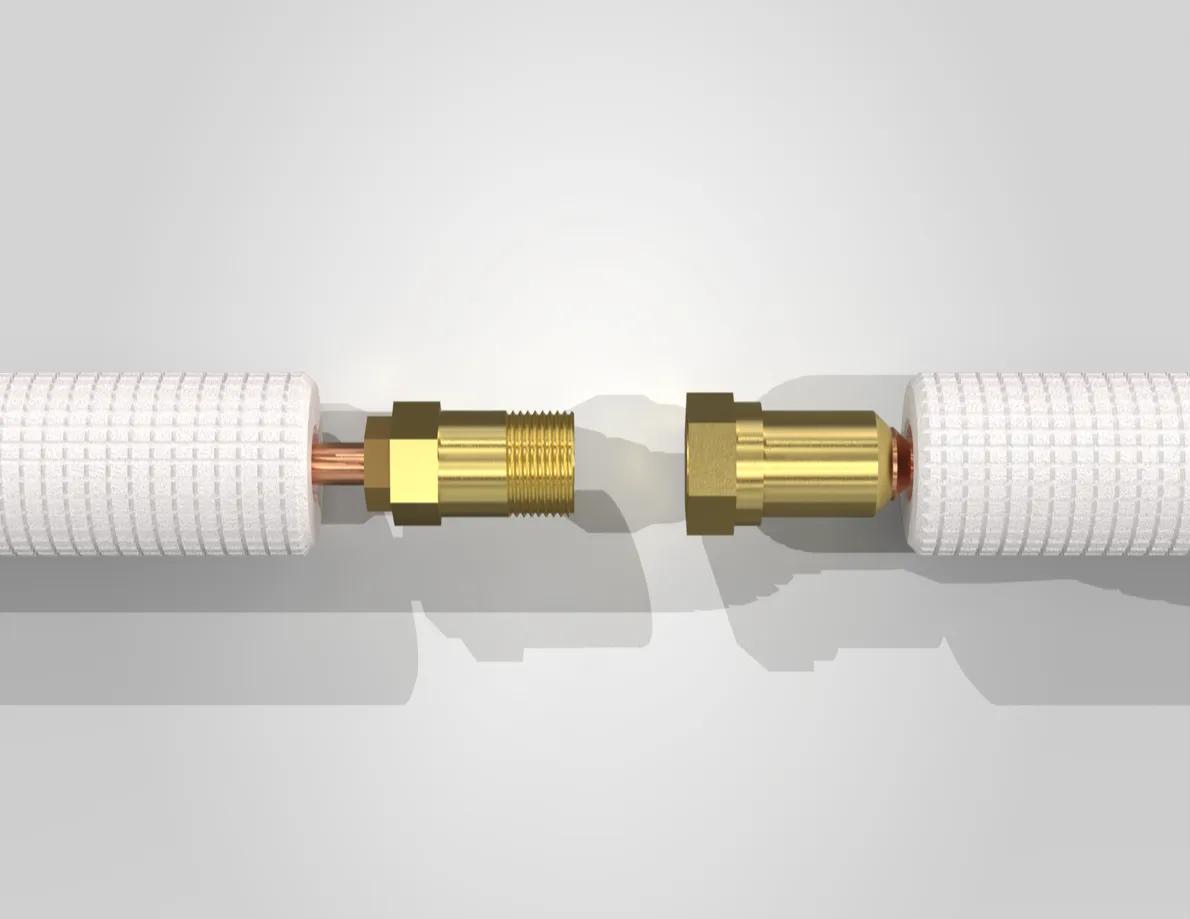

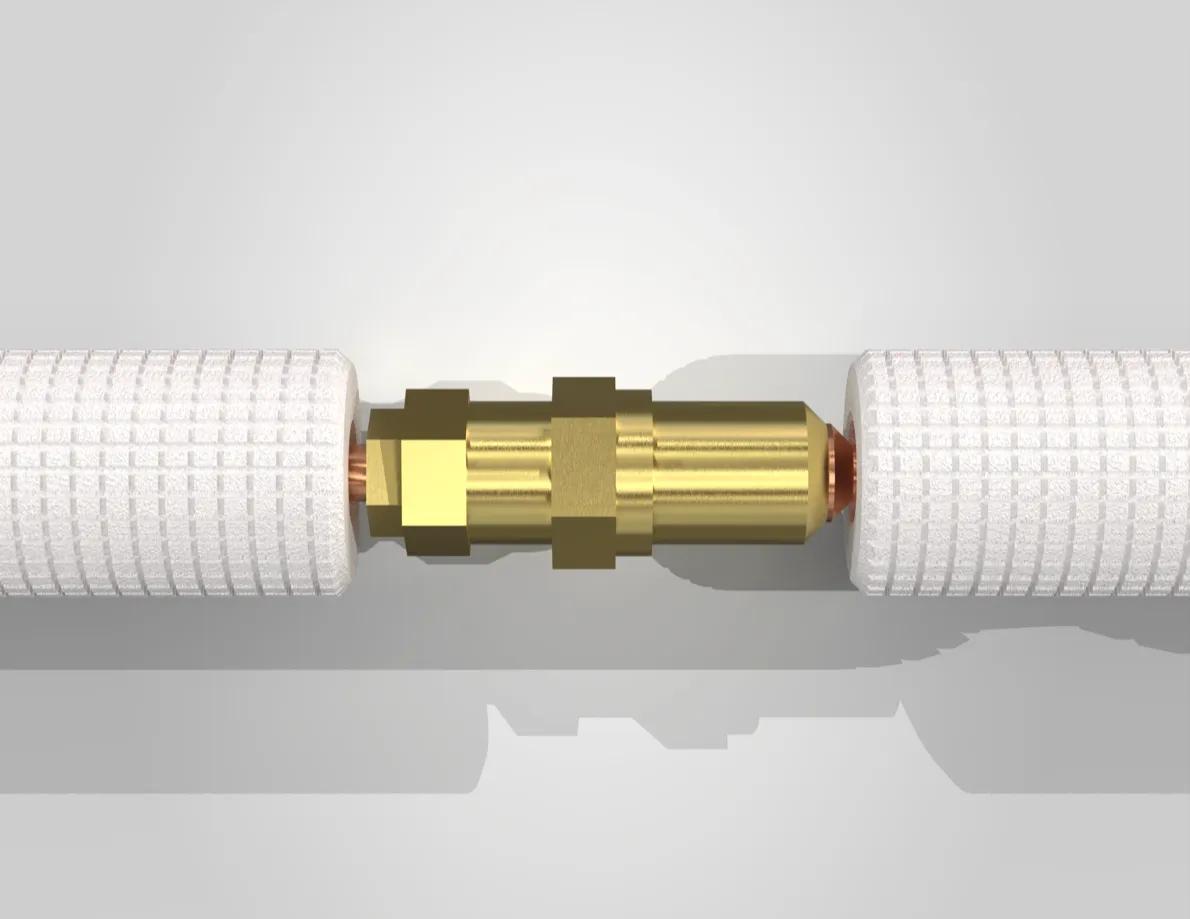

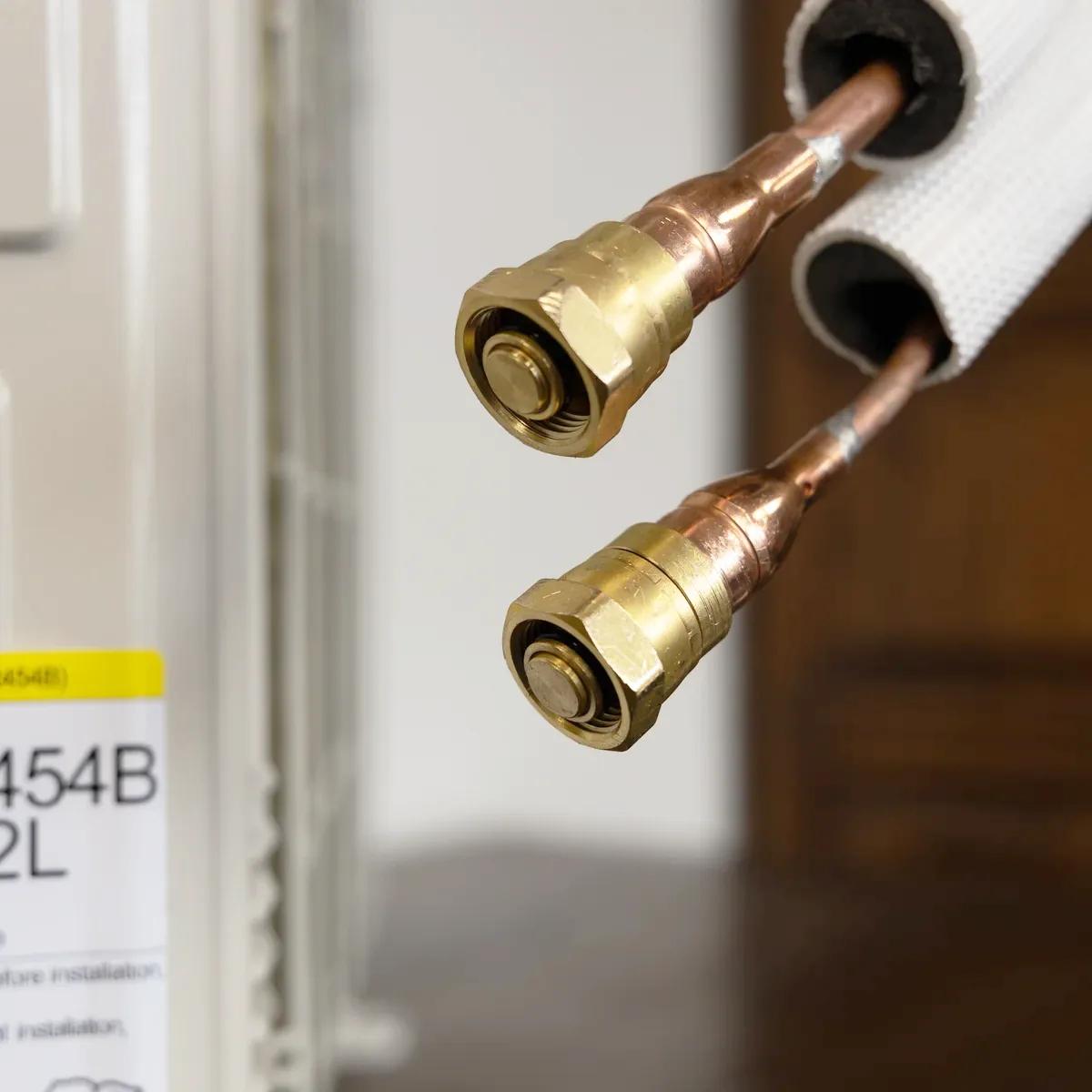

A conventional copper line set ships empty. The installer flares both ends, brazes connections, pulls a 500-micron vacuum to remove moisture and air, then releases refrigerant from the condenser — the steps that legally require an EPA-certified tech. A pre-charged line-set ships with R454B already inside and factory-sealed. Both ends carry brass quick-connect couplings: hand-thread them onto the service ports, torque to the spec in the manual, and break the internal seals by opening the valves. The refrigerant flows, the system pressurizes itself, and nothing is ever vented. That single change is what turns a licensed job into a DIY mini split project.
Installing a Mini Split with a Pre-Charged Line-Set
Standard runs are 16 ft, extendable to 25 ft with a pre-charged extension — the lines aren’t meant to be cut or modified beyond approved lengths, since that breaks the factory charge. Every coupling is pressure-tested and rated to hold 400 PSI to guard against leaks. On the install itself, plan for 4–8 hours on a first single-zone job: mount the heads, route the line set through a 3-inch wall penetration, set the condensate drain, then make the connection. Keep the run under ~30 ft and leave 4–6 inches of clearance around each unit for airflow. For the full walkthrough, read are mini splits easy to install yourself, and compare the system options on the pre-charged line set mini split page.
Add a line set to your build, or browse pre-charged systems.
