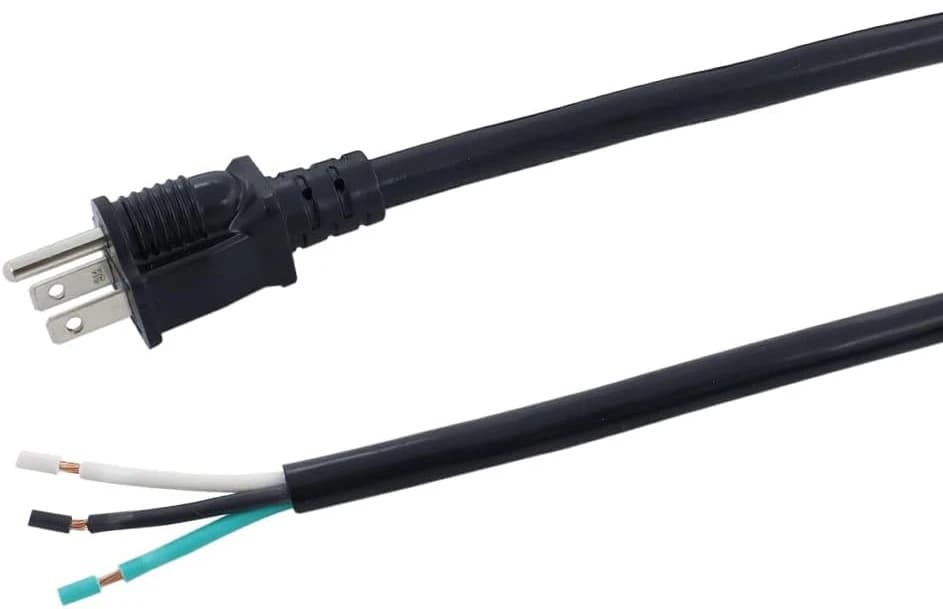

Zone Air® 3-Prong 115V Power Cord Pigtail for DIY Mini-Split Systems - 6 Ft, NEMA 5-15P, 12 AWG
$49.99
Free shipping · Estimated delivery: about 4 days from order
Select Affirm at checkout to see the rate and terms you qualify for.
1
Secure checkout • SSL encrypted • Satisfaction guaranteed
Your payment information is processed securely. We do not store credit card details.
Technical Information & Performance
SPECIFICATIONS
| Plug Type | NEMA 5-15P (3-prong grounded) |
| Terminal End | Stripped 3-wire (black / white / green) |
| Wire Gauge | 12 AWG, 3 conductor |
| Jacket | SJTW, black |
| Rating | 15A / 125V |
| Cord Length | 6 ft |
| Compatible Systems | Zone Air 9K & 12K BTU 115V wall mount |
| Breaker Needed | 15A (single-pole) |
| Included With Systems | No — optional accessory, ordered separately; 115V systems are hardwired by default |
| Installation | Lands on the outdoor unit terminal block — follow the manual and local code |
| Outlet Required | Dedicated 15A GFCI outlet with a weatherproof in-use cover — no extension cords or shared outlets |
