How Quick Connect Fittings Work in Mini Split Systems

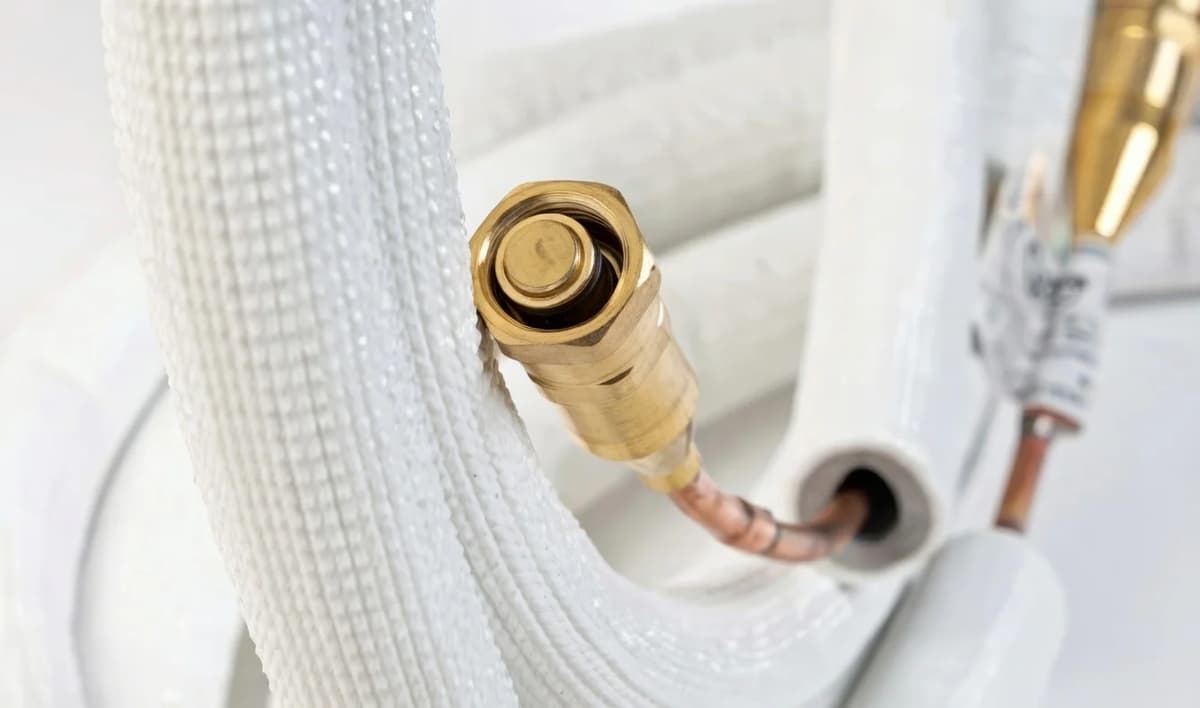

Traditional refrigerant lines are flared and brazed with a torch, then vacuumed and charged. In a ductless mini split, the quick connect setup uses attached, pre-charged line-set fitting connections as part of a complete mini split system, replacing that work with brass fittings that hand-tighten and torque to spec. The indoor unit connects to the outdoor condenser with a 25-foot line set, and the maximum distance between indoor and outdoor components is typically 25 feet. These pre-charged fittings are tested for leak resistance at 400 PSI and seal the pre-charged refrigerant inside. Releasing refrigerant into the lines is the key final step once all connections are made. There’s no flaring, no brazing, no vacuum pump, and no leak-checking with nitrogen — the fittings make a leak-proof seal as you torque them.

No specialized training, special tools, or costly HVAC equipment are needed, and common household equipment like a drill is usually enough. A proper hole should be drilled for line routing and drainage, and sealing around the lines and cables helps prevent drafts and pests. Mount the indoor component on a wall away from direct sunlight and heat sources, and rubber isolation pads under the outdoor section can reduce vibration.

It’s the feature that makes a DIY mini split genuinely installable in an afternoon — while improving comfort through room-by-room control, supporting efficient operation with inverter technology that adjusts power to demand, helping the system hold a precise temperature, boosting energy savings by avoiding duct losses, and reaching efficiency ratings up to 24 SEER2, while often cutting install costs by $3,000 to $5,000 versus traditional systems. Larger setups may also need a dedicated power circuit.

Browse pre-charged, quick-connect systems built for DIY.
