In Ceiling Mini Split: Ceiling Cassette & Ceiling Mounted Mini Splits

Q: How much ceiling space do I need for a cassette air handler?

Most ceiling cassette units need 10–12 inches of vertical clearance above the finished ceiling. You'll also need enough width between ceiling joists — some units require cross-framing if standard 16-inch joist spacing is too narrow.

Q: How loud is a ceiling mounted mini split indoors?

Expect around 26–32 dB(A) on low fan — roughly the volume of a quiet library. That's slightly higher than the quietest wall heads but still qualifies as quiet operation for most living spaces. Indoor air quality is also maintained through washable filters accessible via the drop-down grille.

If you want a mini split unit that stays out of sight, an in ceiling mini split could be just what you’re looking for. At Zone Air, we design easy-install, affordable ceiling cassette and ceiling mounted mini split systems.

Ready to shop, or learn how they work first?

Go to Ceiling Mini Splits →How They Work

Not sure what size you need?

Size Your System →

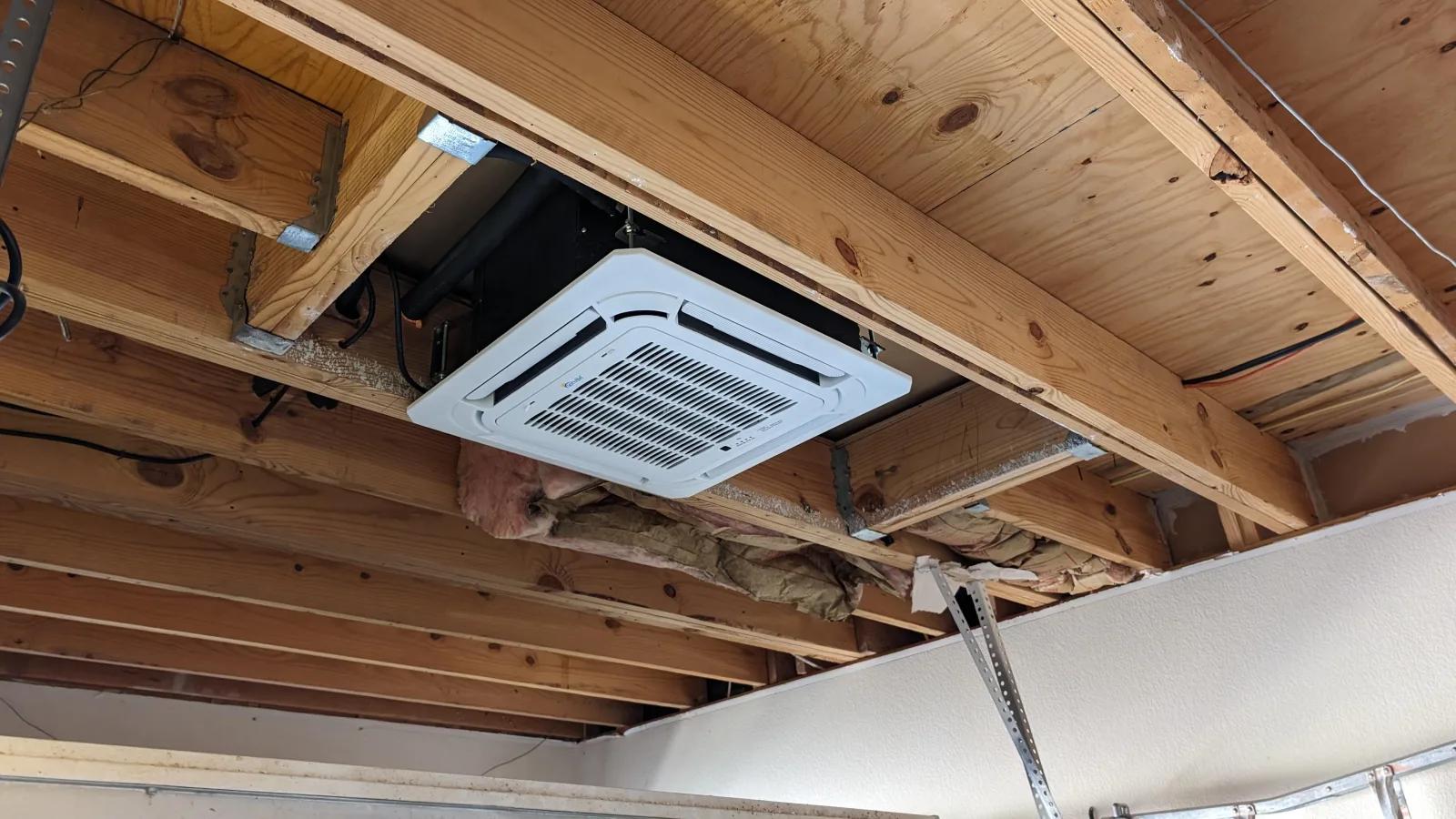

In ceiling mini split — recessed ceiling cassette installed flush between exposed floor joists, with its four-way airflow grille facing down into the room

What Is an In Ceiling Mini Split?

A ceiling cassette mini split is a ductless mini split that sits into your ceiling, with only a sleek grille showing flush with a ceiling’s surface.

These systems range from 9,000 to 48,000 BTU and serve spaces from large bedrooms and open-concept living rooms to commercial spaces like retail showrooms and offices. Zone Air offers DIY-ready ceiling cassette mini splits equipped with pre-charged line sets, so homeowners can easily install without an HVAC license and without handling refrigerant.

How a Ceiling Cassette Mini Split Works

A mini split ceiling cassette uses the same heat pump refrigerant cycle as any ductless system, just delivered from above:

The indoor unit contains a fan, evaporator coil, and filters inside a compact housing above the ceiling. Conditioned air discharges in four directions through swing vanes, eliminating hot and cold spots across the room.
The outdoor unit transfers heat — pulling it from indoor air in summer for cooling, and extracting it from outdoor air (even at sub-zero temperatures) in winter for reliable heating.
Advanced inverter technology modulates compressor speed continuously rather than cycling on and off, cutting energy usage and keeping temperature steady.

Zone Air ceiling cassette systems ship pre-charged with refrigerant, so DIY install doesn’t require brazing, vacuuming, or refrigerant handling. You simply connect the pre-charged line set to the indoor and outdoor units.

Ceiling Mounted Mini Split vs Wall-Mounted: Key Differences & Costs

Both styles use the same outdoor heat pump, but the indoor unit and installation process differ significantly.

Feature	Ceiling Cassette	Wall Mounted Unit
Appearance	Flush mount appearance — only grille visible	Unit protrudes from wall
Airflow	4-way or 360°, covers large areas evenly	Forward projection from one wall
Installation	Cut ceiling opening, frame between ceiling joists, often add condensate pump	3–4″ hole through exterior wall
Install time	6–10 hours	4–6 hours
Equipment cost	~20–40% more than comparable wall unit	Lower upfront cost
Noise levels (low fan)	~26–32 dB(A)	~18–24 dB(A)
Best for	Open floor plans, high ceilings, limited wall space	Bedrooms, single-room additions

Best Applications for Ceiling Cassette Mini Splits

Ceiling mounted mini splits shine where wall space is limited or airflow needs to reach across a wider area. Common applications include:

Open-concept living and dining areas of 500–800 sq ft
Retail showrooms and conference rooms with high cooling loads
Large master suites or sunrooms with many windows
Second-floor rooms where attic access simplifies framing and line routing

Real-world scenario: A 600 sq ft loft with 10 ft ceilings and windows on three sides. A single zone ceiling cassette distributes air from above in four directions, providing year round comfort without a wall unit blocking sightlines. The top-down airflow pattern is especially effective in rooms with vaulted or high ceilings, where a wall unit’s forward throw may leave the far side of the room under-conditioned.

Homeowners who want individual temperature control room by room can pair ceiling cassettes with wall units on the same multi-zone system.

Zone Air Ceiling Cassette Mini Splits

DIY-ready ceiling cassettes, all pre-charged for install without refrigerant handling — free shipping and a 7-year compressor warranty.

Single Room

9,500 BTU Ceiling Cassette

$2,699

Recessed four-way cassette for rooms up to 475 sq ft. 21 SEER2, pre-charged lineset for DIY install.

View product →Most Popular

12,000 BTU Ceiling Cassette

$2,799

The most popular cassette size — up to 600 sq ft. Even airflow from the center of the ceiling.

View product →2-Room Solution

Dual Zone Ceiling Cassettes

$5,199

Two recessed cassettes on one outdoor unit, independent control per room. Up to 1,200 sq ft.

View product →

Browse All Ceiling Cassettes

FAQs About Ceiling Mounted Mini Splits

Do mini splits have to be on a wall, or can they go in the ceiling?

Not at all. A mini split air handler can be wall mounted, ceiling mounted, or even floor-mounted depending on the model. Ceiling cassettes are specifically designed to be installed flush in a ceiling for discreet, even airflow.

How much ceiling space do I need for a cassette air handler?

Most ceiling cassette units need 10–12 inches of vertical clearance above the finished ceiling. You'll also need enough width between ceiling joists — some units require cross-framing if standard 16-inch joist spacing is too narrow.

Are ceiling cassette mini splits good for both heating and cooling?

Yes. They function as a full air conditioner in summer and deliver reliable heating in winter. Cold climate models with advanced technology can heat efficiently down to -13°F, making them a serious alternative to furnaces in any house.

Can I connect ceiling cassettes and wall units to the same outdoor heat pump?

Yes, in a multi-zone system. This lets you maintain individual temperature control in each room with different indoor unit styles connected to one outdoor unit.

How loud is a ceiling mounted mini split indoors?

Expect around 26–32 dB(A) on low fan — roughly the volume of a quiet library. That's slightly higher than the quietest wall heads but still qualifies as quiet operation for most living spaces. Indoor air quality is also maintained through washable filters accessible via the drop-down grille.

Can a DIYer really install a ceiling cassette, or do I need a pro?

With a pre-charged line set system from Zone Air, a DIYer with moderate skills can handle most of the installation. The main areas where you may want professional help are the electrical circuit and any structural framing. Access to the unit for filter maintenance is straightforward through the grille — no attic entry needed.

Ready to find the right system for your space?

Explore Zone Air ceiling cassette mini splits, or contact our team to help you size a system, compare ceiling cassette versus wall options, and confirm whether your ceiling construction is DIY-ready.
