Mini Split AC and Heat: DIY Done Right

Mini Split AC and Heat Systems: Overview

A mini split that can both cool and heat is really just a heat pump. Mechanically, a heat pump is the same as a mini split air conditioner with one addition — a reversing valve. That valve lets the unit switch the direction of refrigerant flow, so the same system either heats a space or cools it.

Every heat pump and mini split pairs one outdoor unit with one or more indoor air handlers, connected by communication wiring and a refrigerant line set. No existing ductwork required. Because ductless systems skip bulky duct runs entirely, they’re a smart fit for older homes, room additions, and any space where running ducts is impractical or expensive.

Types of air handlers

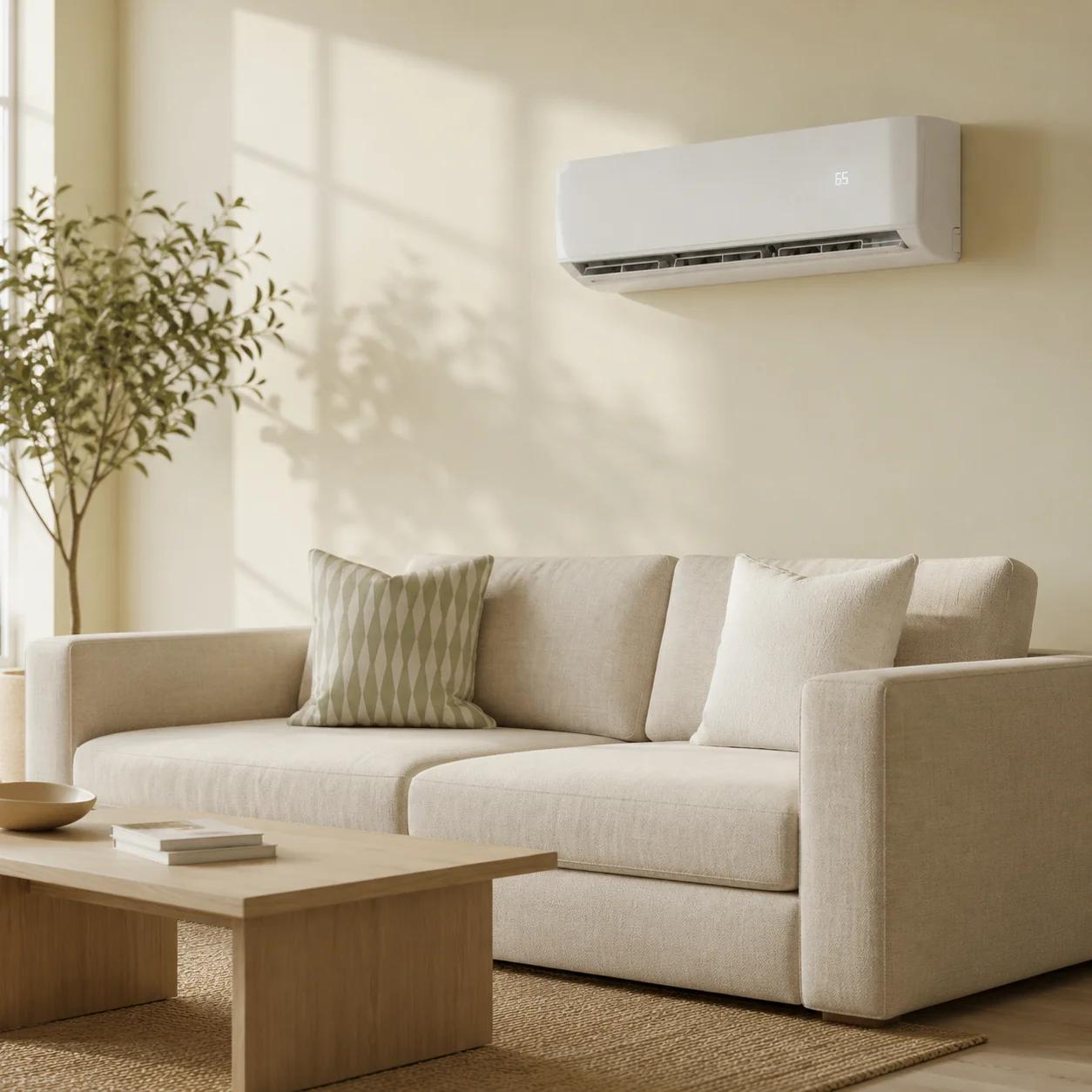

The indoor unit can be mounted high on a wall, flush into the ceiling, or concealed in an attic or crawl space with a short duct run — so placement adapts to your space rather than the other way around.

How Do Ductless Mini Splits Work for AC and Heat?

Ductless mini splits are heat pumps — they move heat rather than generate it, which is what makes them far more efficient than resistance heaters or older central air conditioners. Instead of burning fuel, they transfer thermal energy using refrigerant.

In cooling mode, the indoor unit’s coil absorbs heat from the room air while the outdoor unit rejects that heat outside. Cool air circulates back into the room, and the inverter compressor ramps its output up or down to match the load instead of cycling fully on and off.

In heating mode, the system runs in reverse: it pulls heat out of the outdoor air — even in cold weather — and delivers it indoors. Cold-climate models hold their heating capacity at low outdoor temperatures, and hyper-heat units can keep working efficiently down to −13°F. That same inverter technology adjusts speed to the temperature demand, which trims the temperature swings and the noise on the hottest days and coldest nights alike.

And because there are no ducts, you avoid the energy penalty of a traditional HVAC system, where 20–30% of conditioned air can leak away before it reaches the room. A ductless system sends heating and cooling straight where you need it through the refrigerant lines that connect the outdoor unit to each wall-mounted indoor head.

Mini Split vs Central AC and Other HVAC Systems

If you’re weighing a ductless mini split against central AC, window units, or electric baseboard, the differences are measurable. Central air depends on ductwork that often leaks, while a mini split delivers air straight into the room. Ductless systems are highly efficient, with strong SEER2 (cooling) and HSPF2 (heating) ratings, and they run remarkably quietly — as low as around 20 dB indoors, compared with 50 dB or more for most window units.

Mini splits also give you true zoning — independent temperature control room by room. The most efficient ductless models are rated into the high 20s and low 30s SEER2, though most mainstream systems (Zone Air’s included) run 22–24 SEER2, and a higher SEER2 rating simply means less electricity over the life of the unit.

Single-zone vs multi-zone: a single-zone system heats or cools one room and is ideal for a small space like a garage or home office. A multi-zone system runs several indoor units — often up to five — off one outdoor unit, which suits larger homes with multiple rooms to condition.

Going DIY with Zone Air can save homeowners $3,000–$5,000 versus a fully contractor-installed system — without giving up the efficiency or output of a premium unit.

Where Mini Splits Shine: Best Uses and Sizing Tips

The right application and the right size matter more than almost anything else. Mini splits are a natural fit for additions and spaces without existing ductwork, including:

• Older homes built before the 1980s with no central air or ducts
• Sunrooms, finished attics, and room additions where extending ducts costs thousands
• Detached garages and workshops that need reliable heat and cooling year-round
• Damp basements with limited airflow from the central system
• Hot upstairs bedrooms or south-facing rooms with high ceilings and big windows

For sizing, match square footage to BTU capacity: 9,000–12,000 BTU handles roughly 300–550 sq ft with standard 8-ft ceilings, while larger spaces of 600–1,000 sq ft need 18,000–24,000 BTU depending on insulation and window area. High ceilings, poor insulation, or a very cold climate can push you up a size. Getting this right protects both comfort and humidity control — oversized units short-cycle, and undersized units struggle on the worst days.

Use the Zone Air mini split sizing calculator to match your room dimensions and climate zone. For regions that regularly drop below freezing, choose a cold-climate unit rated for strong output at 5°F and usable heat down to −13°F. Install quality matters just as much as the equipment — most mini splits need only a 3-inch wall hole, but that penetration has to be sealed properly.

DIY-Friendly Installation and Long-Term Savings with Zone Air

Zone Air builds DIY mini splits with pre-charged line sets, so you can install your own system over a weekend. It still takes some care, but quick-connect fittings, step-by-step guides, and phone support put the job within reach of a moderately skilled homeowner — usually about 4–8 hours of work. Local permits and electrical codes still apply, so check your jurisdiction before you start.

Every Zone Air mini split heat pump is backed by a 5-year parts warranty, 7-year compressor coverage, and a 45-day satisfaction guarantee. Whether you need a single-zone unit for one room or a multi-zone setup across several rooms, quiet indoor air handlers and connected app control put year-round comfort within reach. Explore the full lineup and find the right fit for your home.
